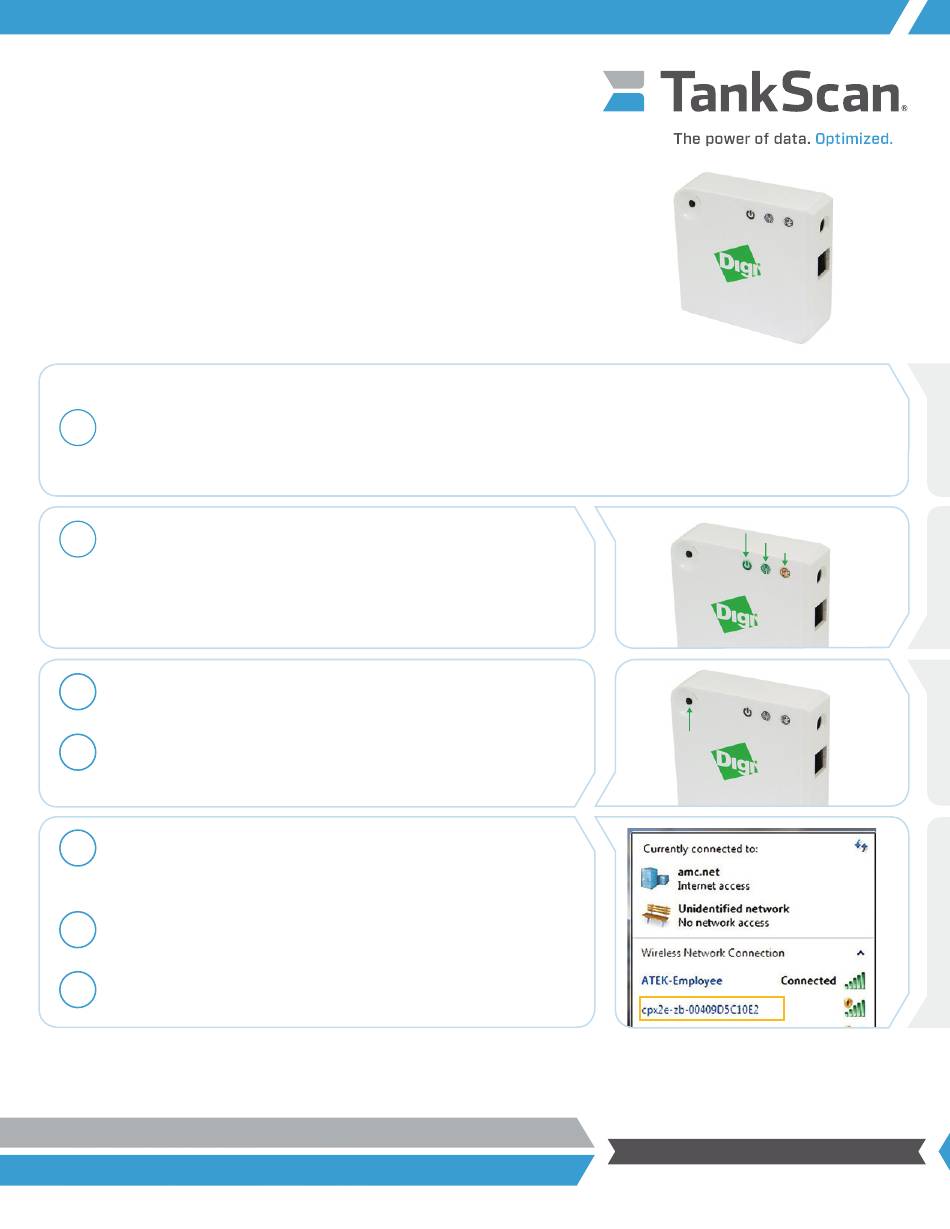

Digi ConnectPort X2e Setup Instructions

TankScan Wi-Fi Gateway
Setup Instructions

Items needed:

• Laptop
• Digi® Device Discovery Utility
• Network Shared Key (password)
The Digi Device Discovery Utility can be downloaded via a Google search or directly
from the Digi support page:
http://www.digi.com/support/getasset?fn=40002265&tp=5.

Determine Gateway Location

Locate gateway near 115 VAC outlet that is close to TankScan monitor. It is okay to place gateway in a different room than
1
TankScan monitor but limit the number of walls and distance between them. Metal walls will weaken signals significantly
while other material types will also weaken signals but with less impact.

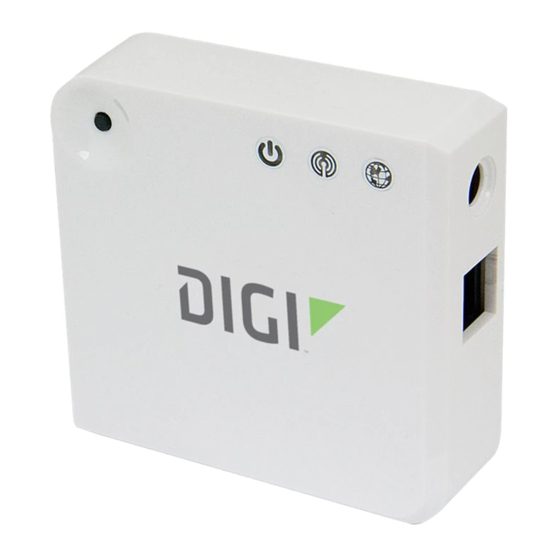

Power up the Digi ConnectPort® X2e. Wait until the power indicator is solid
2
green, the XBee indicator is blinking green and the network indicator is
blinking orange. The X2e may take a few minutes to reach this state of
operation.
Turn on your laptop's wireless network card.
3
Press and release black button on the X2e once. The X2e will enter into a
4
special access point mode (network indicator turns solid orange) for five
minutes.
While the network indicator is solid orange, check for wireless networks
5
available to your laptop. The X2e will appear as cpx2e-zb-xxxxxxxxxx,
where xxxxxxxxxx is the serial number of the gateway.
Connect to the X2e's wireless network.
6
Mount using supplied velcro. For the best signal strength mount gateway
7
with logo side facing TankScan monitors.
• Microsoft Windows® OS
• Network Security Mode
Power
XBee
Network
Button
