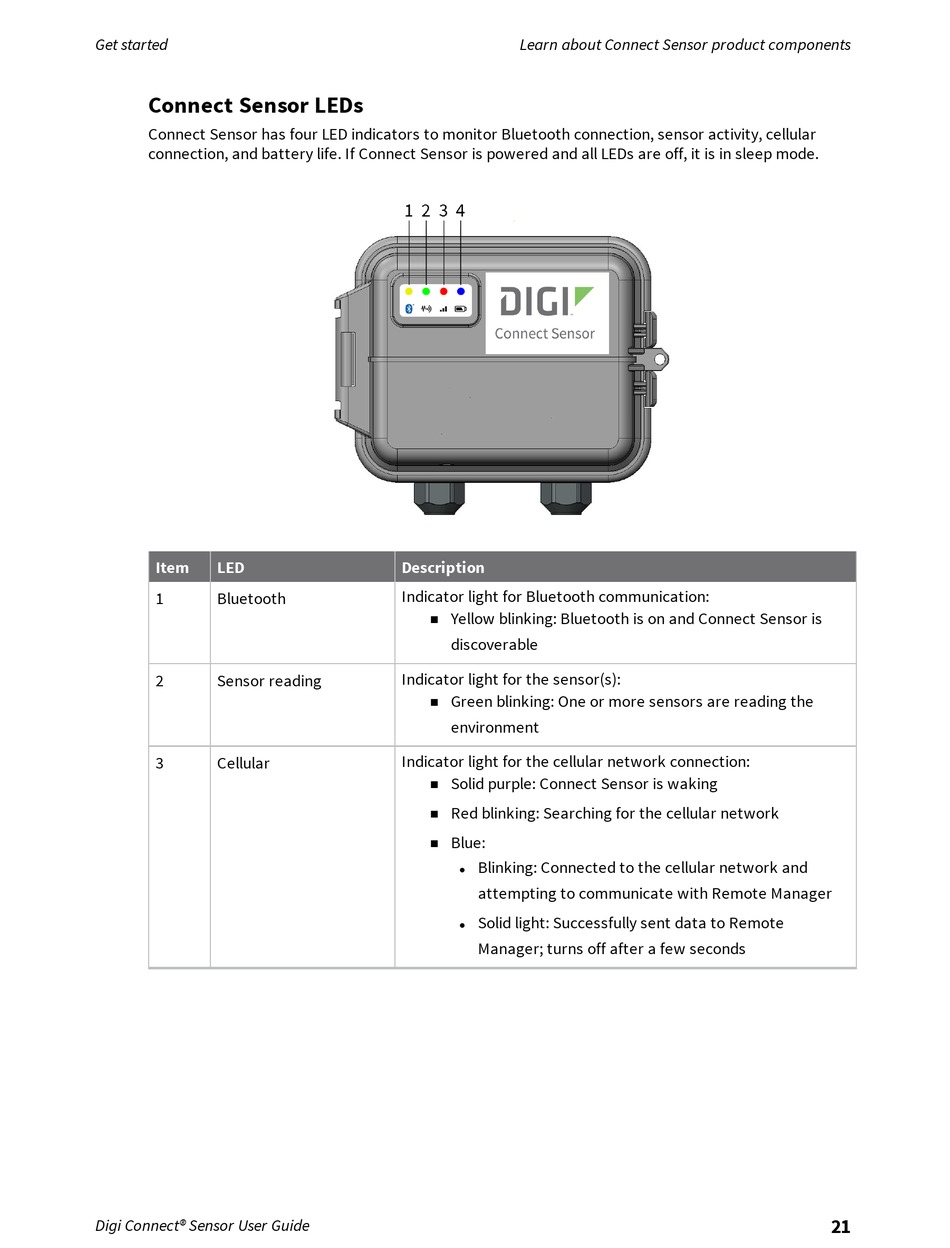

Connect Sensor LEDs

Connect Sensor has four LED indicators to monitor Bluetooth connection, sensor activity, cellular
connection, and battery life. If Connect Sensor is powered and all LEDs are off, it is in sleep mode.
Item LED
1 Bluetooth
2 Sensor reading
3 Cellular
Digi Connect® Sensor User Guide
Learn about Connect Sensor product components
Description
Indicator light for Bluetooth communication:
Yellow blinking: Bluetooth is on and Connect Sensor is
n
discoverable
Indicator light for the sensor(s):
Green blinking: One or more sensors are reading the
n
environment
Indicator light for the cellular network connection:
Solid purple: Connect Sensor is waking
n
Red blinking: Searching for the cellular network
n
Blue:
n
Blinking: Connected to the cellular network and
l
attempting to communicate with Remote Manager
Solid light: Successfully sent data to Remote
l
Manager; turns off after a few seconds
