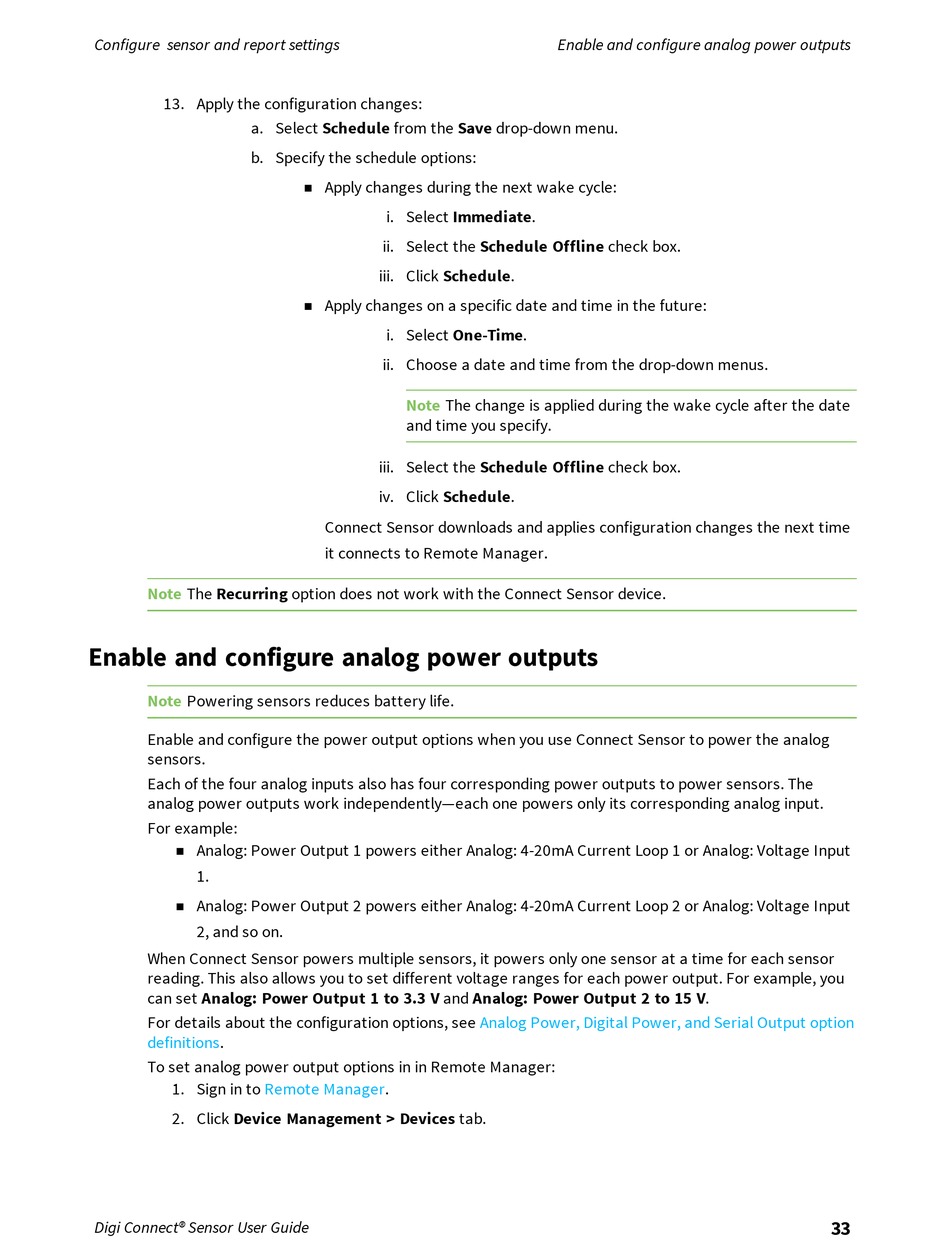

Configure sensor and report settings
13. Apply the configuration changes:
a. Select Schedule from the Save drop-down menu.
b. Specify the schedule options:
Note The Recurring option does not work with the Connect Sensor device.

Enable and configure analog power outputs

Note Powering sensors reduces battery life.
Enable and configure the power output options when you use Connect Sensor to power the analog
sensors.
Each of the four analog inputs also has four corresponding power outputs to power sensors. The
analog power outputs work independently—each one powers only its corresponding analog input.
For example:
Analog: Power Output 1 powers either Analog: 4-20mA Current Loop 1 or Analog: Voltage Input
n
1.
Analog: Power Output 2 powers either Analog: 4-20mA Current Loop 2 or Analog: Voltage Input
n
2, and so on.
When Connect Sensor powers multiple sensors, it powers only one sensor at a time for each sensor
reading. This also allows you to set different voltage ranges for each power output. For example, you
can set Analog: Power Output 1 to 3.3 V and Analog: Power Output 2 to 15 V.
For details about the configuration options, see
definitions.
To set analog power output options in in Remote Manager:
1. Sign in to Remote
2. Click Device Management > Devices tab.
Digi Connect® Sensor User Guide
Apply changes during the next wake cycle:
n
i. Select Immediate.
ii. Select the Schedule Offline check box.
iii. Click Schedule.
Apply changes on a specific date and time in the future:
n
i. Select One-Time.
ii. Choose a date and time from the drop-down menus.
Note The change is applied during the wake cycle after the date
and time you specify.
iii. Select the Schedule Offline check box.
iv. Click Schedule.
Connect Sensor downloads and applies configuration changes the next time
it connects to Remote Manager.
Analog Power, Digital Power, and Serial Output option
Manager.
Enable and configure analog power outputs
33
