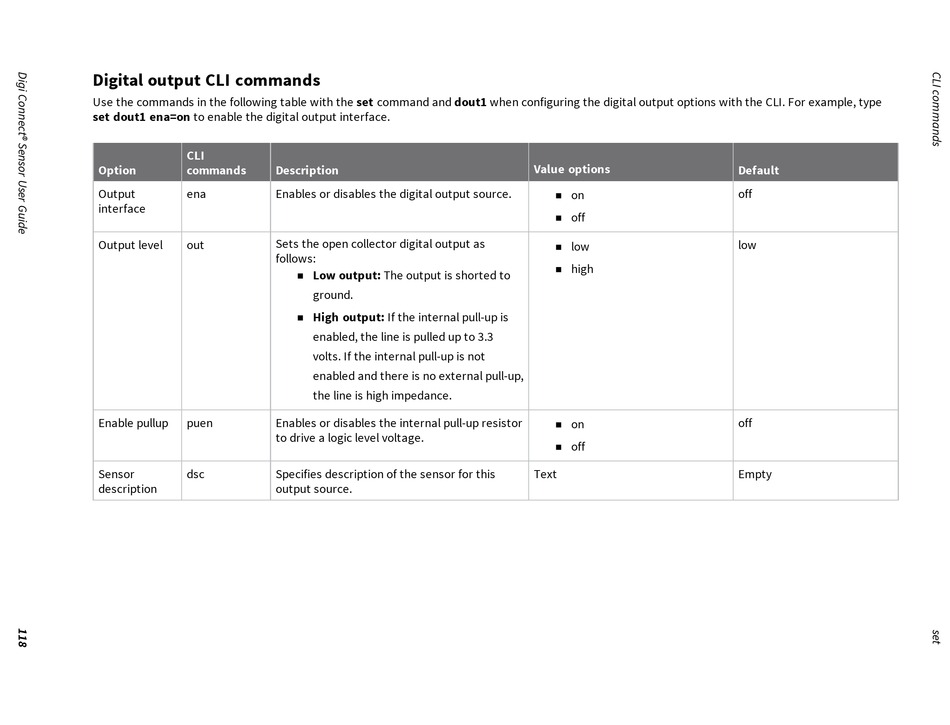

Digital output CLI commands

Use the commands in the following table with the set command and dout1 when configuring the digital output options with the CLI. For example, type
set dout1 ena=on to enable the digital output interface.
CLI
Option commands
Output ena
interface
Output level out
Enable pullup puen
Sensor dsc
description
Description
Enables or disables the digital output source.
Sets the open collector digital output as
follows:
Low output: The output is shorted to
n
ground.
High output: If the internal pull-up is
n
enabled, the line is pulled up to 3.3
volts. If the internal pull-up is not
enabled and there is no external pull-up,
the line is high impedance.
Enables or disables the internal pull-up resistor
to drive a logic level voltage.
Specifies description of the sensor for this
output source.
Value options
on
n
off
n
low
n
high
n
on
n
off
n
Text
Default
off
low
off
Empty
