Data stream definitions
Short
name
Long name
puen
Pull-up enable
wem
Wake enable mask

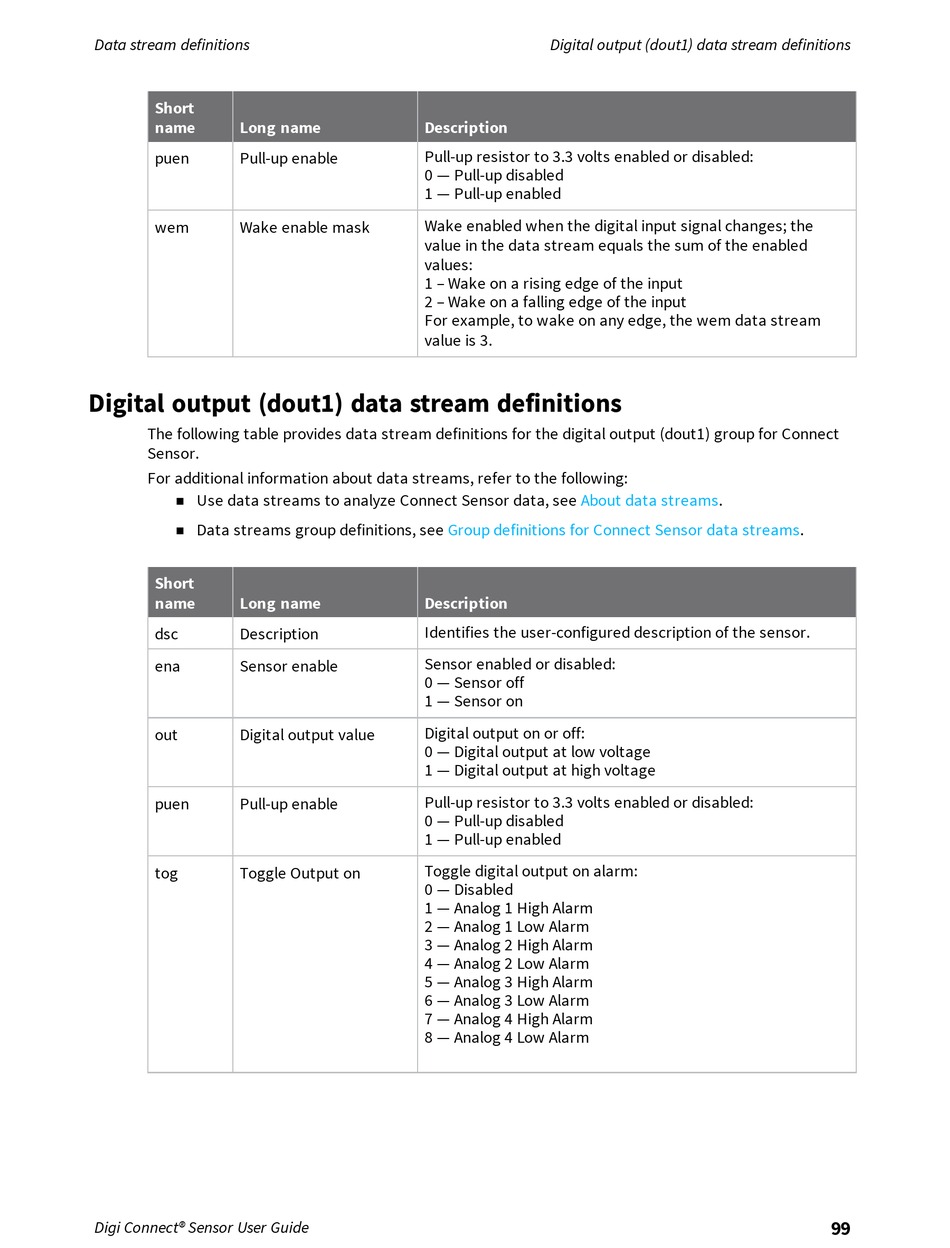

Digital output (dout1) data stream definitions
The following table provides data stream definitions for the digital output (dout1) group for Connect
Sensor.
For additional information about data streams, refer to the following:
Use data streams to analyze Connect Sensor data, see
n
Data streams group definitions, see
n
Short
name
Long name
dsc
Description
ena
Sensor enable
out
Digital output value
puen
Pull-up enable
tog
Toggle Output on
Digi Connect® Sensor User Guide
Digital output (dout1) data stream definitions
Description
Pull-up resistor to 3.3 volts enabled or disabled:
0 — Pull-up disabled
1 — Pull-up enabled
Wake enabled when the digital input signal changes; the
value in the data stream equals the sum of the enabled
values:
1 – Wake on a rising edge of the input
2 – Wake on a falling edge of the input
For example, to wake on any edge, the wem data stream
value is 3.
About data
Group definitions for Connect Sensor data
Description
Identifies the user-configured description of the sensor.
Sensor enabled or disabled:
0 — Sensor off
1 — Sensor on
Digital output on or off:
0 — Digital output at low voltage
1 — Digital output at high voltage
Pull-up resistor to 3.3 volts enabled or disabled:
0 — Pull-up disabled
1 — Pull-up enabled
Toggle digital output on alarm:
0 — Disabled
1 — Analog 1 High Alarm
2 — Analog 1 Low Alarm
3 — Analog 2 High Alarm
4 — Analog 2 Low Alarm
5 — Analog 3 High Alarm
6 — Analog 3 Low Alarm
7 — Analog 4 High Alarm
8 — Analog 4 Low Alarm
streams.
streams.
99
