NOTE: Temporarily label each SD card with its corresponding slot number before removal. Reinstall the SD cards into the
corresponding slots.
Steps
1 Locate the Internal Dual SD Module (IDSDM) on the Network Daughter Card (NDC) riser card.
2 Holding the pull tab, lift the IDSDM out of the system.

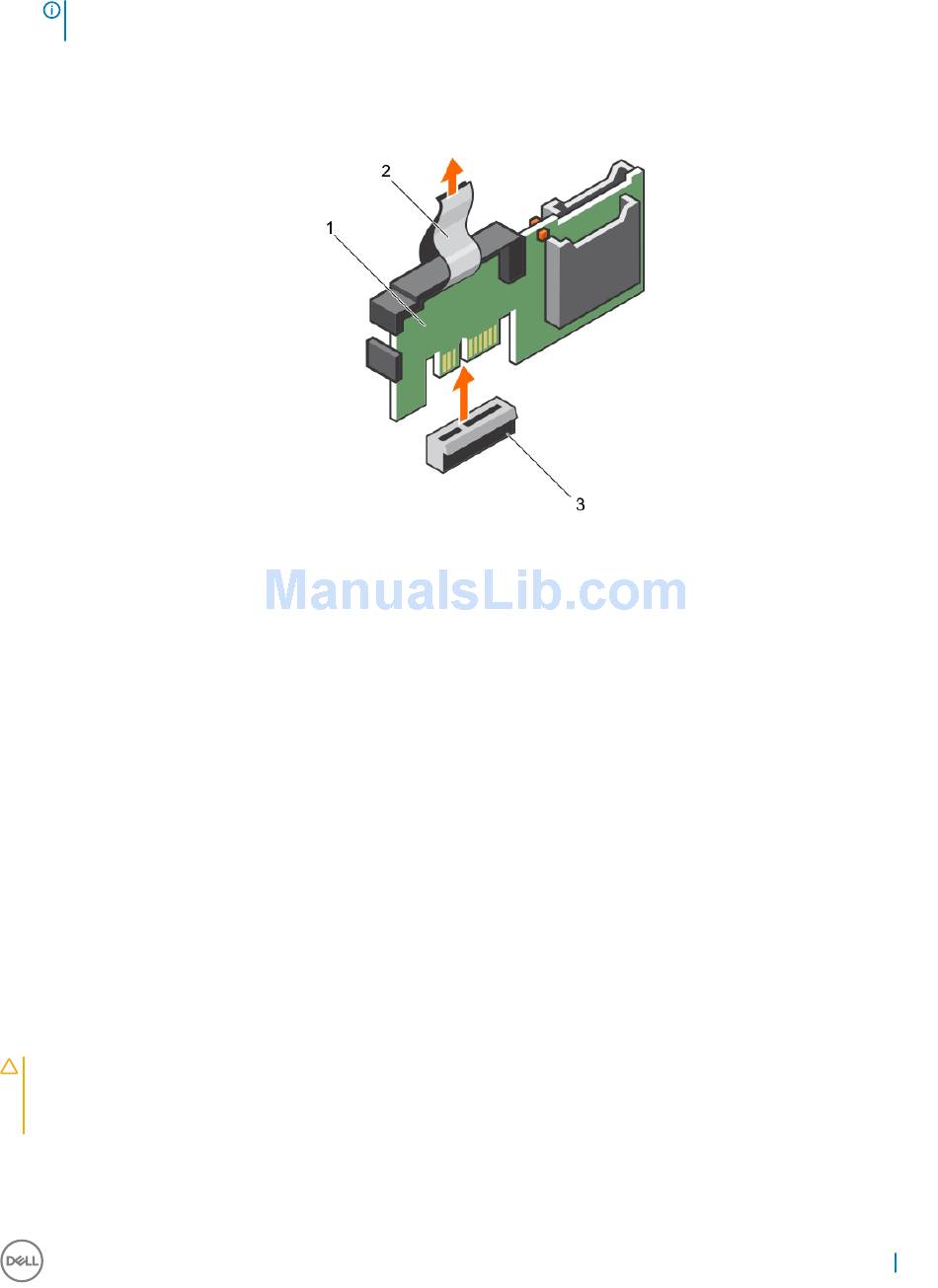

Figure 66. Removing the internal dual SD module (IDSDM)
1 IDSDM
3 IDSDM connector
Next steps
1 Install the IDSDM.
2 If removed, install the SD cards.
3 Follow the procedure listed in the After working inside your system section.
Related links
Safety instructions
Before working inside your system
Removing an internal SD card

Installing the optional internal dual SD module

Installing an internal SD card
After working inside your system
Installing the optional internal dual SD module
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only perform troubleshooting and simple
repairs as authorized in your product documentation, or as directed by the online or telephone service and support team.
Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that are shipped with your product.
1 Follow the safety guidelines listed in the Safety instructions section.
2 Follow the procedure listed in the Before working inside your system section.
2 pull tab
Installing and removing system components 127
