2.2.2.2 Connecting the SIP RGB Strobe to the SIP SPeaker
1. Connect the one meter strobe cable to the adapter cable. See
2. Remove the mounting screws and port cover from the SIP Speaker. See
3. Align the key bump on the adapter cable to the key bump slot on the SIP Speaker. See
4. Replace the port cover and mounting screw. See
Connect Through Backplate / Slot
SIP RGB Strobe Board
Operations Guide
8.

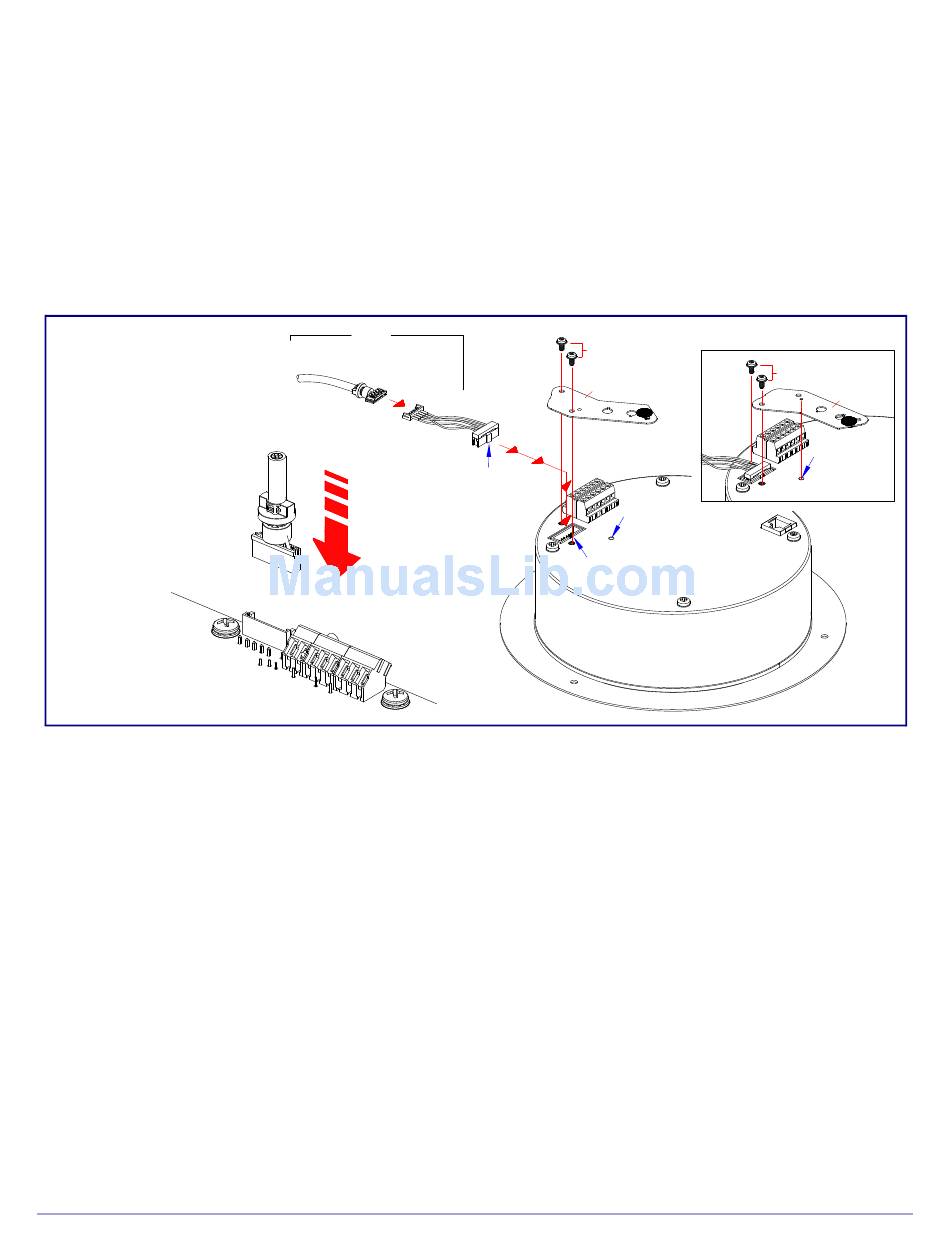

Figure 2-8. Connecting the SIP RGB Strobe to the SIP Speaker
071069*
One (1) Meter
Strobe Cable
to
JX
JX
Figure
Mounting Screw
Port Cover
Adapter
Cable
Key Bump
Key Bump
Slot
931251F
Installing the Singlewire InformaCast Speaker
Set Up and Test the Speaker
Figure 2-8.
Figure
2-8.
Mounting Screw
Dimple
Ceiling Speaker Assembly
CyberData Corporation
13
2-8.
Figure 2-
Flip Over
Port Cover
Dimple
