CyberData 11098 Installation Quick Reference

© 2010, CyberData Corporation, ALL RIGHTS RESERVED 930273I Quick Reference

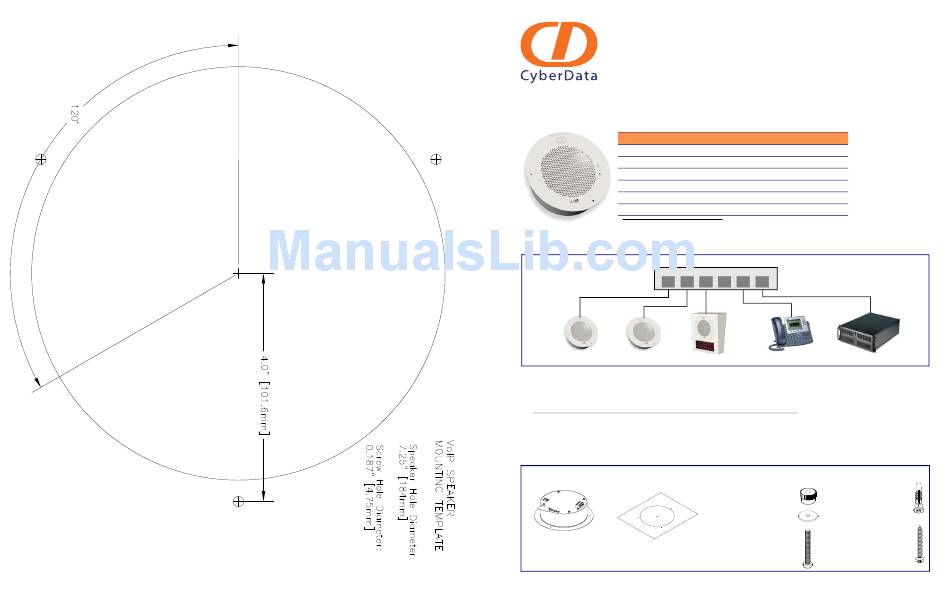

Installation Quick Reference

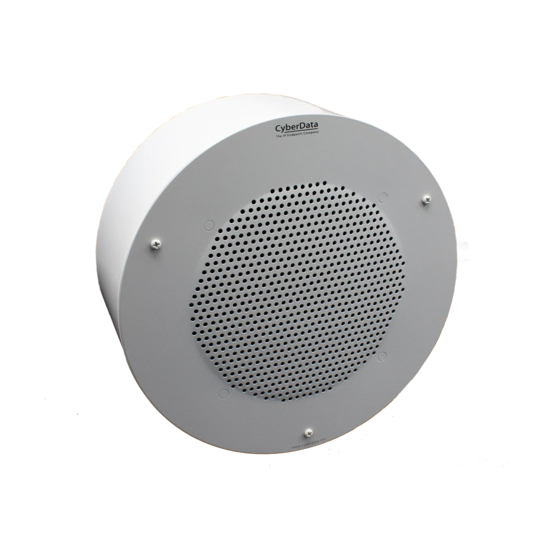

VoIP V2 Ceiling Speaker
SiP Compliant
011098*, RAL 9002, Gray White, Standard
011099, RAL 9003, Signal White, Optional
*Replaces 011021
Parameter
IP Addressing
a
IP Address
Web Access Username
Web Access Password
a
Subnet Mask
a
Default Gateway
a. Default if there is not a DHCP server present.
Typical System Installation
*More installation options are illustrated in the 802.3af Compliant Ethernet Switch
VoIP V2 Ceiling Speaker Operations Guide.
1 2
Speaker Speaker
Clock Kit
Getting Started
• Download the VoIP V2 Ceiling Speaker Operations Guide PDF file from the V2 Speaker Documentation page at:
http://www.cyberdata.net/products/voip/digitalanalog/ceilingspkr2/docs.html
• Create a plan for the locations of your speakers.
• Prior to installation, consult local building and electrical code requirements.
Parts
(1) Speaker Assembly (1) Template for Speaker
and Screw Holes*
* See the last page
of this document
Quick Reference
Factory Default Setting
DHCP
10.10.10.10
admin
admin
255.0.0.0
10.0.0.1
3 4 5 6
IP Phone IP PBX Server
(1) Drop Ceiling Mounting Kit (1) Drywall Mounting Kit
(3) Plastic Ribbed Anchors
(3) #8 Nylon Thumb Nuts
(3) #8 Fender Washers
(3) #8 Sheet Metal Screws
(3) 8-32 x 1 1/4" Mounting
Screws
930273I © 2010, CyberData Corporation, ALL RIGHTS RESERVED
