2. Plug the Ethernet cable into the Speaker Assembly.
3. At this point:
•
•
4. To fasten the speaker:
•
Note
•
A.2 Dimensions
Figure A-2
Operations Guide
Operational and Linked to the Network"
For drop ceiling mounting, position the SPEAKER ASSEMBLY in the ceiling so that its
screw holes align with those you prepared.
For drywall mounting, place the three PLASTIC RIBBED ANCHORS in the holes you
prepared, and position the SPEAKER ASSEMBLY over them, aligning the screw holes in
the assembly with the anchors.
For drop ceiling mounting, use the three 8-32 x 1 1/4" MOUNTING SCREWS, #8 NYLON
THUMB NUTS, and #8 FENDER WASHERS to secure the speaker.
For weak ceiling tile, CyberData offers a reinforcing mount (CyberData part number
010991A).
For drywall mounting, use the three #8 SHEET METAL SCREWS to secure the speaker.

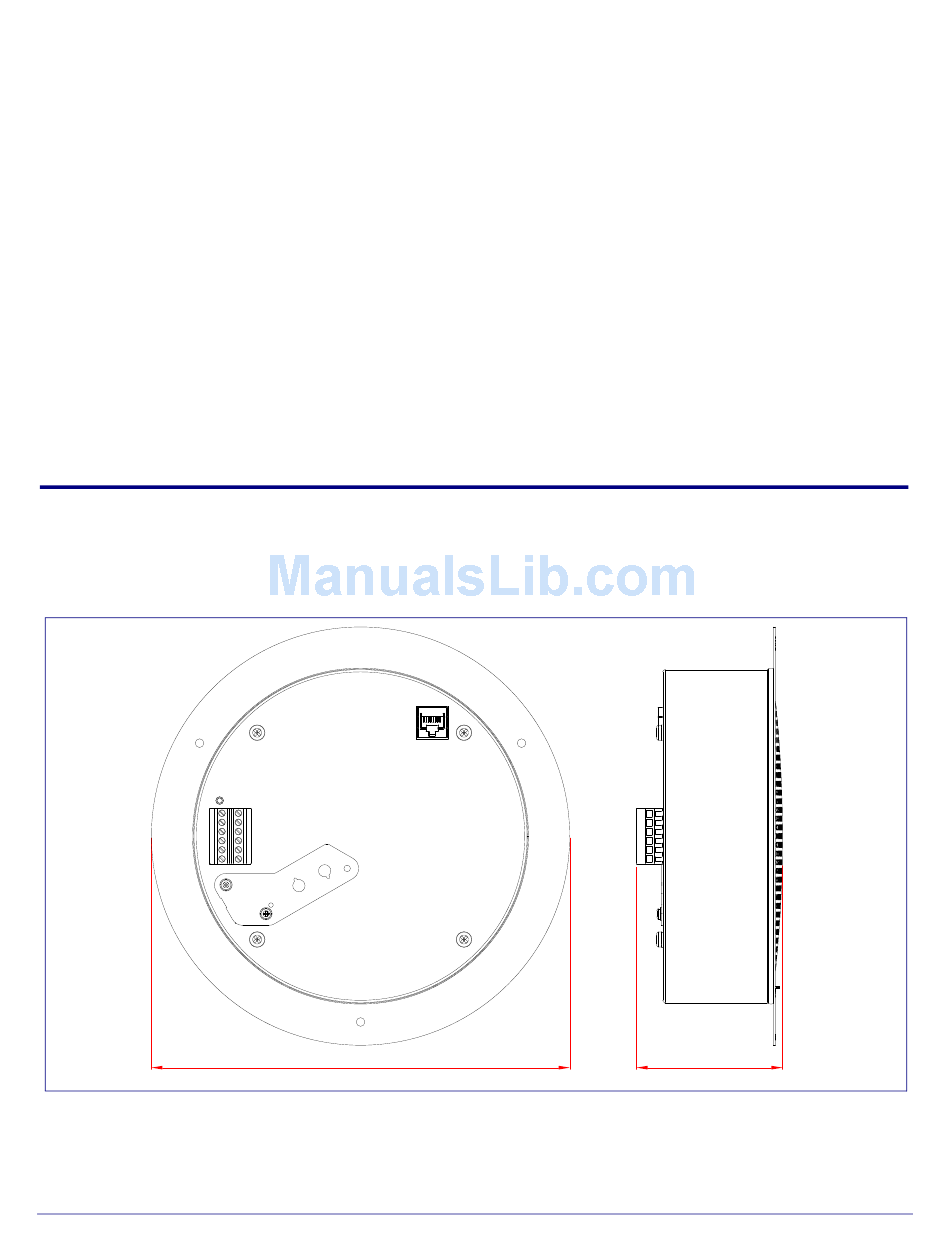

shows the dimensions for the Singlewire InformaCast Speaker.
Figure A-2. Dimensions
9.000 [228.60]
DIMENSIONS ARE IN INCHES [MILLIMETER]
Section 2.2.3, "Confirm that the Speaker is
explains how the Link and Status LEDs work.
931251F

Dimensions

3.140 [79.75]
