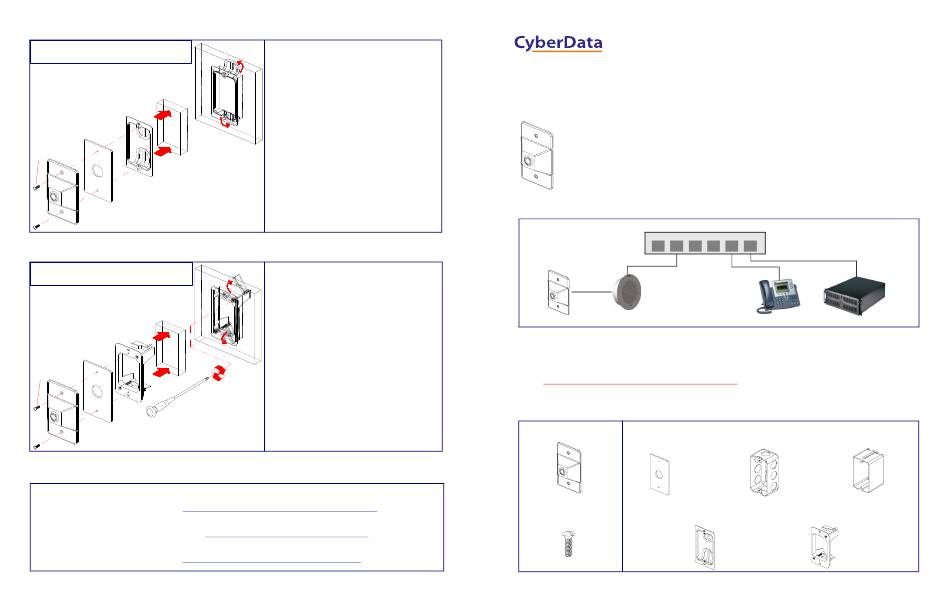

CyberData 011184 Installation Quick Reference

Mounting Options—Metal Bracket
To be installed and or used in accordance with the
appropriate electrical codes and regulations.
One-Gang
Low Voltage
Mounting Bracket
(Metal)
Optional
Gasket
Mounting
Screw (2x)
Wall Opening
Remote Call
Button Assembly
Mounting Options—Plastic Bracket
To be installed and or used in accordance with the
appropriate electrical codes and regulations.
One-Gang
Low Voltage
Mounting Bracket
(Plastic)
Optional
Gasket
Mounting
Screw (2x)
Wall Opening
Tighten screws to
pull Flagnuts against
inside wall to secure
bracket.
Remote Call
Button Assembly
Contacting CyberData
Corporate Headquarters Sales: (831) 373-2601 ext. 334
Support: 831-373-2601 ext. 333
CyberData Corporation Web: http://www.cyberdata.net/support/contactsupportvoip.html
3 Justin Court
RMA Dept: (831) 373-2601 ext. 136
Monterey, CA 93940, USA
Email: RMA@CyberData.net
RMA Status: http://www.cyberdata.net/support/rmastatus.html
Phone: 831-373-2601
Fax: 831-373-4193
Warranty information is available at:
www.CyberData.net
Web: http://www.cyberdata.net/support/warranty/index.html
© 2012, CyberData Corporation, ALL RIGHTS RESERVED 930464A
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
Wall Plate Mounting Bracket (Metal)
Tools Required: Wall board saw, Pliers
Instructions:
1. Use the inside area of the bracket to trace the hole
cut onto the wall.
2. Using a wall board saw or matt knife, cut along the
stencil line.
3. Place bracket against the wall opening.
Bend tabs up and
down against
4. Bend tabs up and down against the inside wall to
inside wall to
secure the bracket.
secure bracket.
5. Place the optional gasket over the metal bracket.
6. Mount the flush mount wall plate to the bracket.
Wall Plate Mounting Bracket (Plastic)
Tools Required: Wall board saw, Philips screwdriver
Instructions:
1. Use the inside area of the bracket to trace the hole
cut onto the wall.
2. Using a wall board saw or matt knife, cut along the
stencil line.
3. Place bracket through the wall opening.
4. Tighten screws to pull Flagnuts against the inside
wall to secure the bracket.
5. Place the optional gasket over the plastic bracket.
6. Mount the flush mount wall plate to the bracket.
Quick Reference
Installation Quick Reference
The IP Endpoint Company

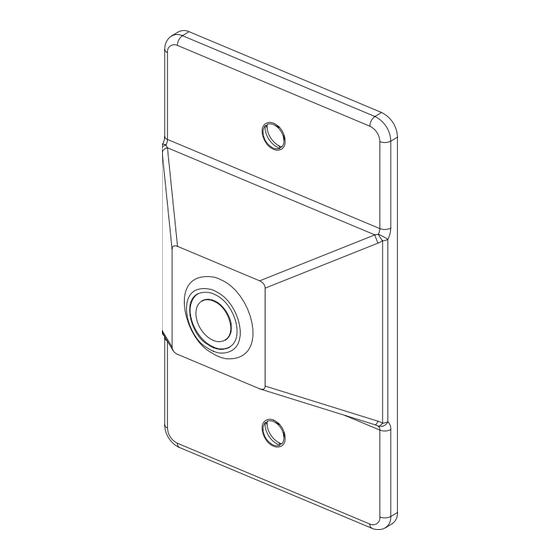

VoIP Remote Call Button
011184, RAL 9002, Gray White, Standard
011185, RAL 9003, Signal White, Optional
As an option to the CyberData V2 speaker, the V2 Remote Call Button enables calls to the V2 Speaker that
can be initiated or answered from a remotely-mounted switch.
When enabled through the Web interface, if the Remote Call Button is pressed, the speaker would initiate a
SIP call to a predetermined extension.
When the V2 Speaker is called from a remote phone and Auto-Answer is not enabled within the unit's Web
interface, the LED on the Remote Button will blink. The call will be answered when the button is pressed.
Typical Call Button System Installation
802.3af Compliant Ethernet Hub
1 2 3
Speaker
Remote Call Button
Getting Started
• Create a plan for the locations of your Call Buttons.
• Prior to installation, consult local building and electrical code requirements.
• WARNING: This enclosure is not rated for any AC voltages!
Parts
Optional Parts (Not Included) (1) Optional One-Gang
(1) Call Button Assembly
(1) Optional Gasket
(1) Optional One-Gang, Low Voltage,
(1) Wall Mounting Kit
Mounting Bracket (Metal)
(2) Mounting screws
Quick Reference
4 5 6
IP Phone IP PBX Server
(1) Optional One-Gang
Box (Metal) Box (Plastic)
(1) Optional One-Gang, Low Voltage,
Mounting Bracket (Plastic)
930464A © 2012, CyberData Corporation, ALL RIGHTS RESERVED
