G 2 AUDIO AND VIDEO DOOR ENTRY SYSTEM - CODED PANEL B
DESCRIPTION OF THE SOUND MODULE

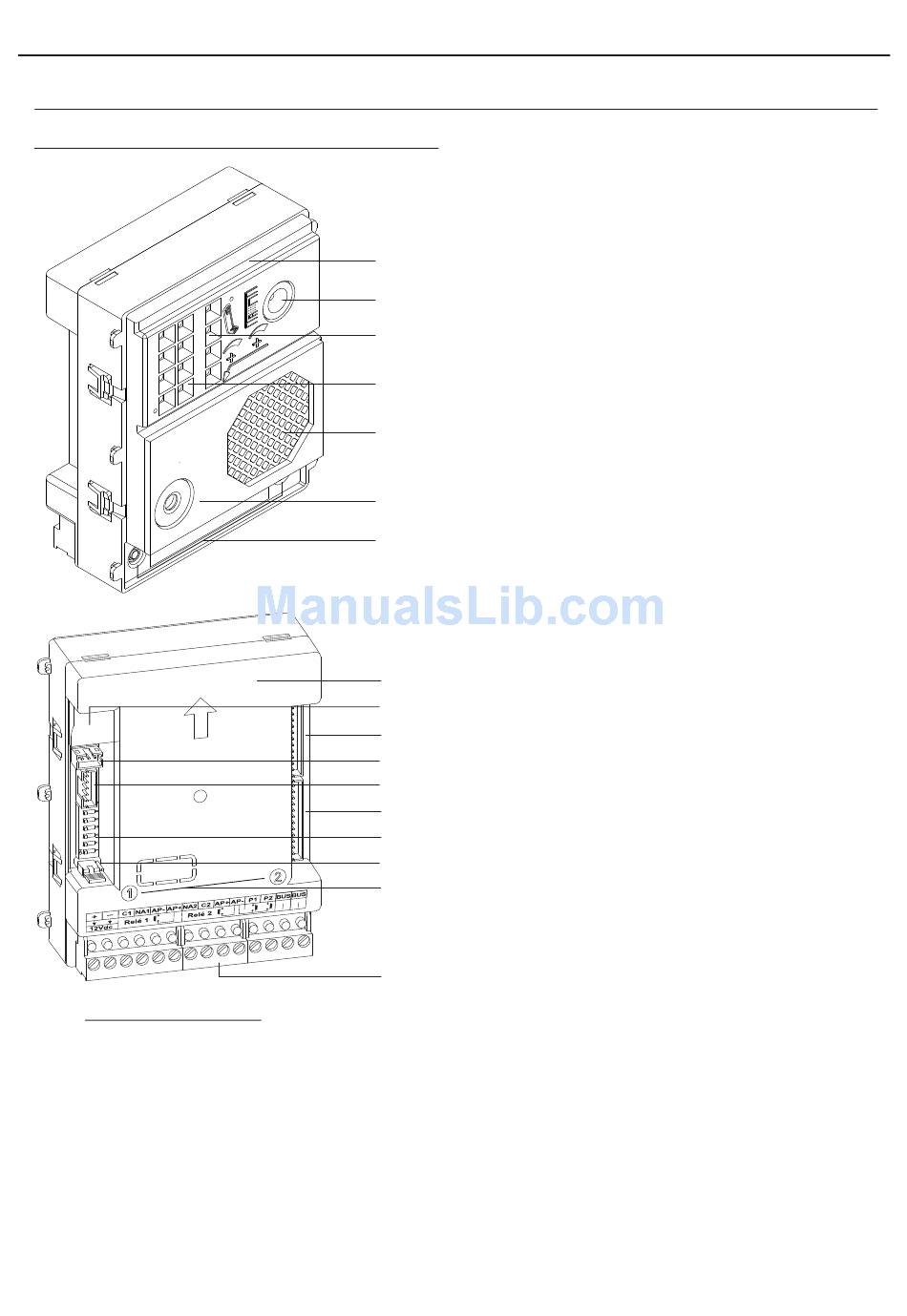

Description of the EL632/GB2A sound module:

Connection terminals:
_
+, : Positive, negative (12Vdc output for Golmar DC electric lock).
C1 : Contact 'C' for electric lock (Relay 1).
NA1 : Contact 'NO' for electric lock (Relay 1).
_
AP ,AP+ : Input for exterior door opening button (Relay 1).
NA2 : Contact 'NO' for electric lock (Relay 2).
C2 : Contact 'C' for electric lock (Relay 2).
_
AP+,AP : Input for exterior door opening button (Relay 2).
P1 : Input for exterior call button (button 1).
P2 : Input for exterior call button (button 2).
BUS : Connection BUS (non-polarised).
BUS : Connection BUS (non-polarised).
Note: See wiring diagrams for connections (pp. 35-39).
Front.
Colour television camera.
Communication status LEDs.
LEDs (activation in low light conditions).
Speaker.
Microphone.
Sound module buttons (x2).
Back.
Micro-SD card slot.
Socket for connection with the EL3422/GB2 TFT module.
Socket for connection with the EL3002H/GB2 module.
Socket for connection with the N3401/GB2 RFID reader mod.
Socket for connection with the N3301/GB2 access control mod.
DIP switch.
Do not use (internal use).
Button number.
Terminal strip connector (GB2 Bus).
