76
D

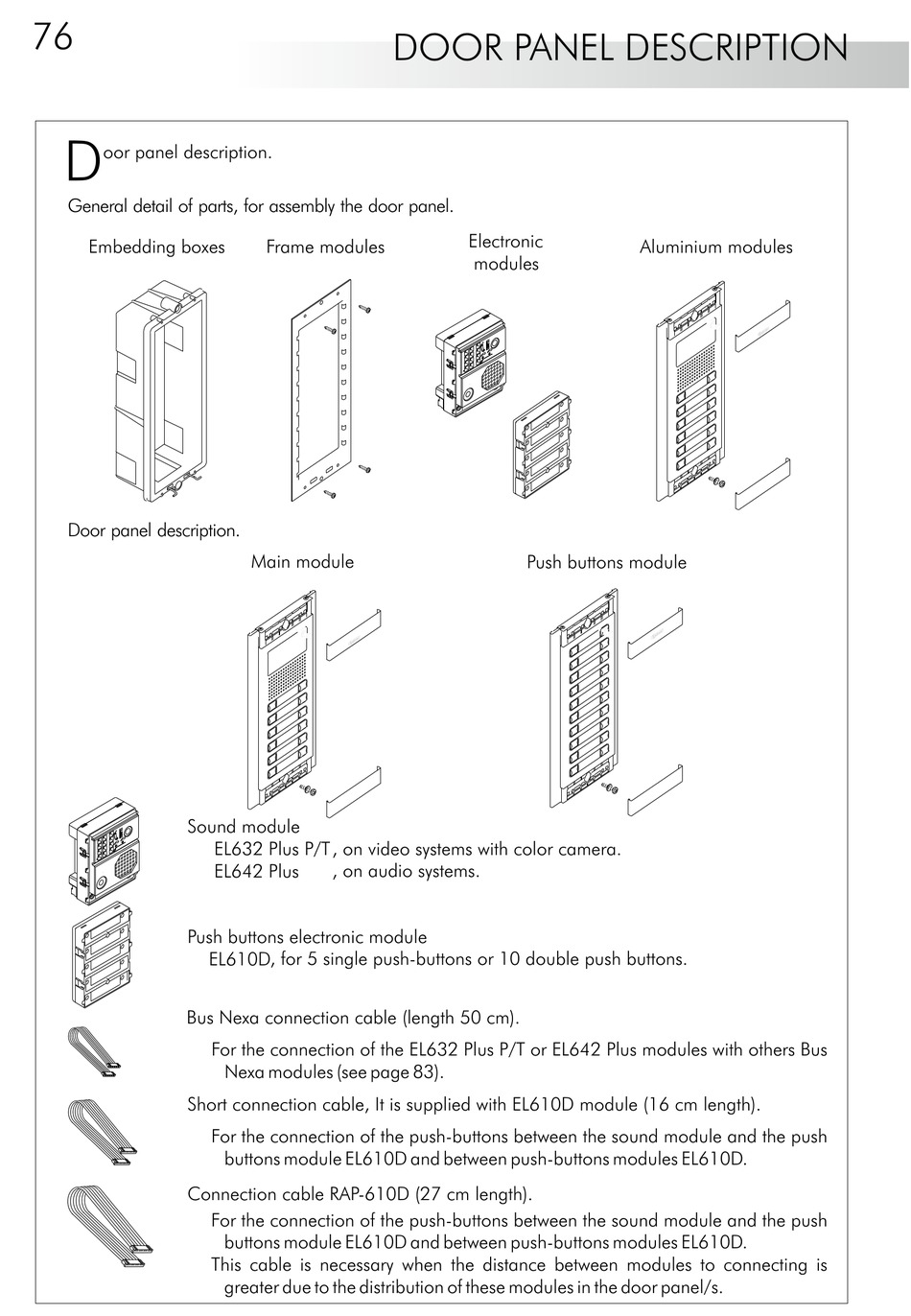

oor panel description.
General detail of parts, for assembly the door panel.
Embedding boxes

Door panel description.

Sound module
Push buttons electronic module
Bus Nexa connection cable e
Short connection cable, It is supplied with EL610D module (16 cm length).
Connection cable RAP-610D (27 cm length).
Frame modules
Main module
EL63 Plus P/T 2 , on video systems with color camera.
EL64 Plus 2 , on audio systems.
EL610D , for 5 single push-buttons or 10 double push buttons.
For the connection of the
Nexa modules (see page
For the connection of the push-buttons between the sound module and the push
buttons module EL610D and between push-buttons modules EL610D.
For the connection of the push-buttons between the sound module and the push
buttons module EL610D and between push-buttons modules EL610D.
This cable is necessary when the distance between modules to connecting is
greater due to the distribution of these modules in the door panel/s.
DOOR PANEL DESCRIPTION
Electronic
modules
Push buttons module
(l ng th 50 cm).
EL632 Plus P/T or EL642 Plus
83 ).
Aluminium modules
modules with others Bus
