G 2 AUDIO AND VIDEO DOOR ENTRY SYSTEM - CODED PANEL B

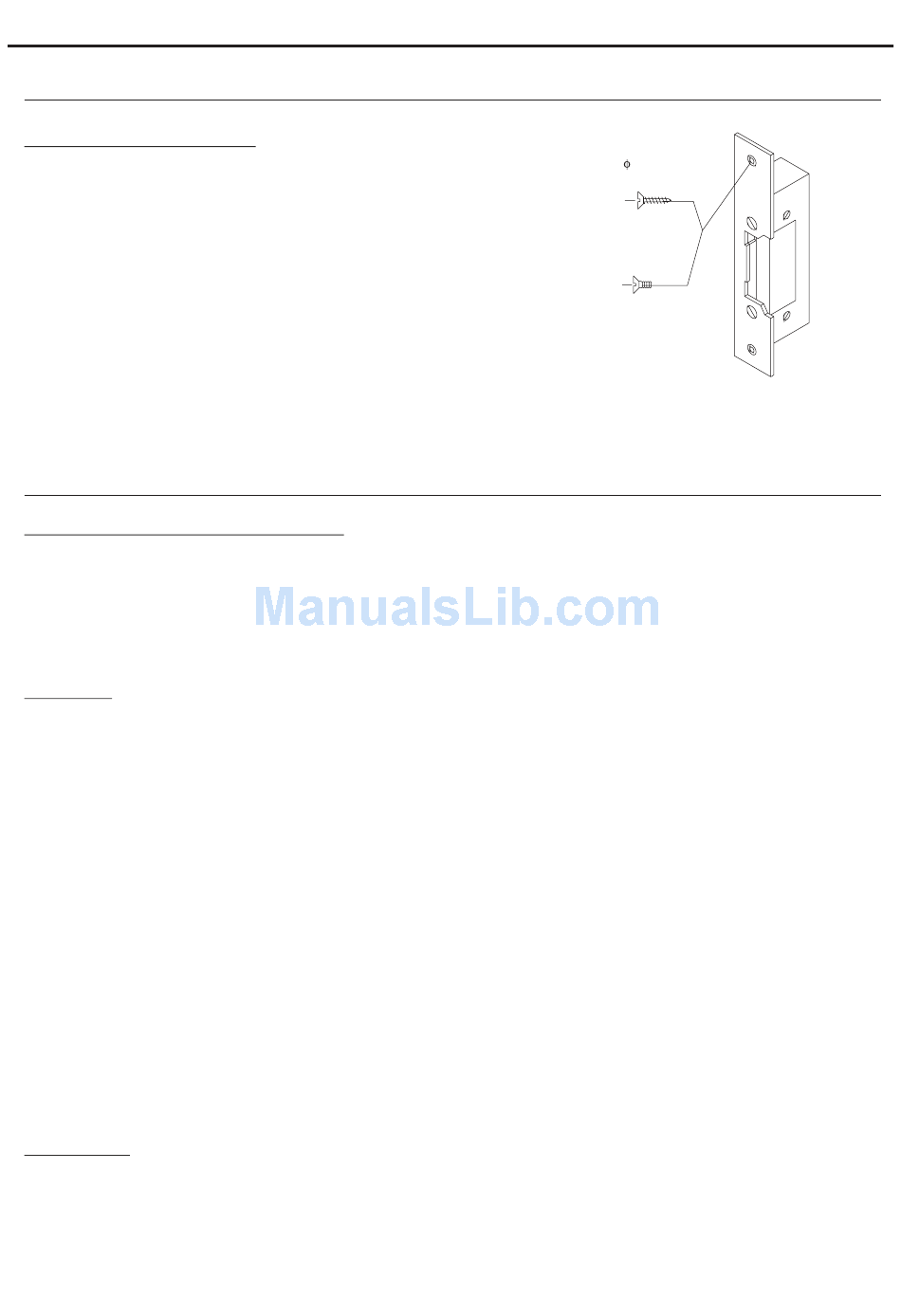

INSTALLATION OF THE LOCK RELEASE

Installing the lock release:
If the lock release is to be fitted to a metal door, use a Ø3.5mm drill bit and
thread the hole made. For wooden doors, use a Ø3mm drill bit.
IMPORTANT:
- The lock release must be 12V DC or AC (Golmar).
(See page 38 for a.c. lock release and page 35-37 for d.c. lock release).
- The sound module is supplied with two varistors. If connecting an AC lock release to one of the outputs, fit the
varistor supplied directly to the lock release terminals to ensure the device functions correctly.
DOOR PANEL OPERATION
Description of door panel operation:
Door panel in standby mode.
With the door panel in standby mode, the following operations can be performed:
Activation of external buttons: Enables activation of the outputs of Relay 1 or Relay 2 by means of the exterior AP
buttons for Relay 1 and Relay 2.
By keypad:
Default administrator code:
Opening by means of the access code: Enables activation of the output (Relay 1 or Relay 2) associated with the
code. Press the bell button of the N3301/GB2 module, followed by the access code, and confirm with the bell button of
the N3301/GB2 module.
Administrator code: Enables entry into the door panel's programming mode. Press the bell button of the N3301/GB2
module, followed by the administrator code, and confirm with the bell button of the N3301/GB2 module.
Calls to monitors and telephones: Enables calls to be made to monitors and/or telephones connected to the same
installation. Press the monitor or telephone code followed by the bell button.
Calls to monitors and telephones through the apartment list: Enables calls to be made to monitors and/or
telephones connected to the same installation. Search for the resident using the arrow keys and press bell to make
the call.
By proximity:
Opening by means of proximity key: Enables activation of the Relay 1 output associated with the proximity key. Hold
the RFID key near to the reader of the N3401/GB2 module.
Managing proximity keys: Enables the adding/deleting of proximity keys to be managed using the MASTER CARD
keys included in the TK3401/GB2 kit. Use MASTER CARD ADD to add cards or MASTER CARD DELETE to delete
them. It is also possible to Activate/Deactivate the proximity reader and delete all residents keys.
1234.
'bell (N3301/GB2)' + 'access code' + 'bell (N3301/GB2)'.
'bell (N3301/GB2)' + 'administrator code' + 'bell (N3301/GB2)'.
'monitor/telephone code' + 'bell'.
'Search resident using arrows button' + 'bell'.
3,5 x 25
DIN-7972
M 4 x 8
DIN-963
17
