Door Panel Description - golmar Nexa Modular Assembly Manual

22
Coming from previous page

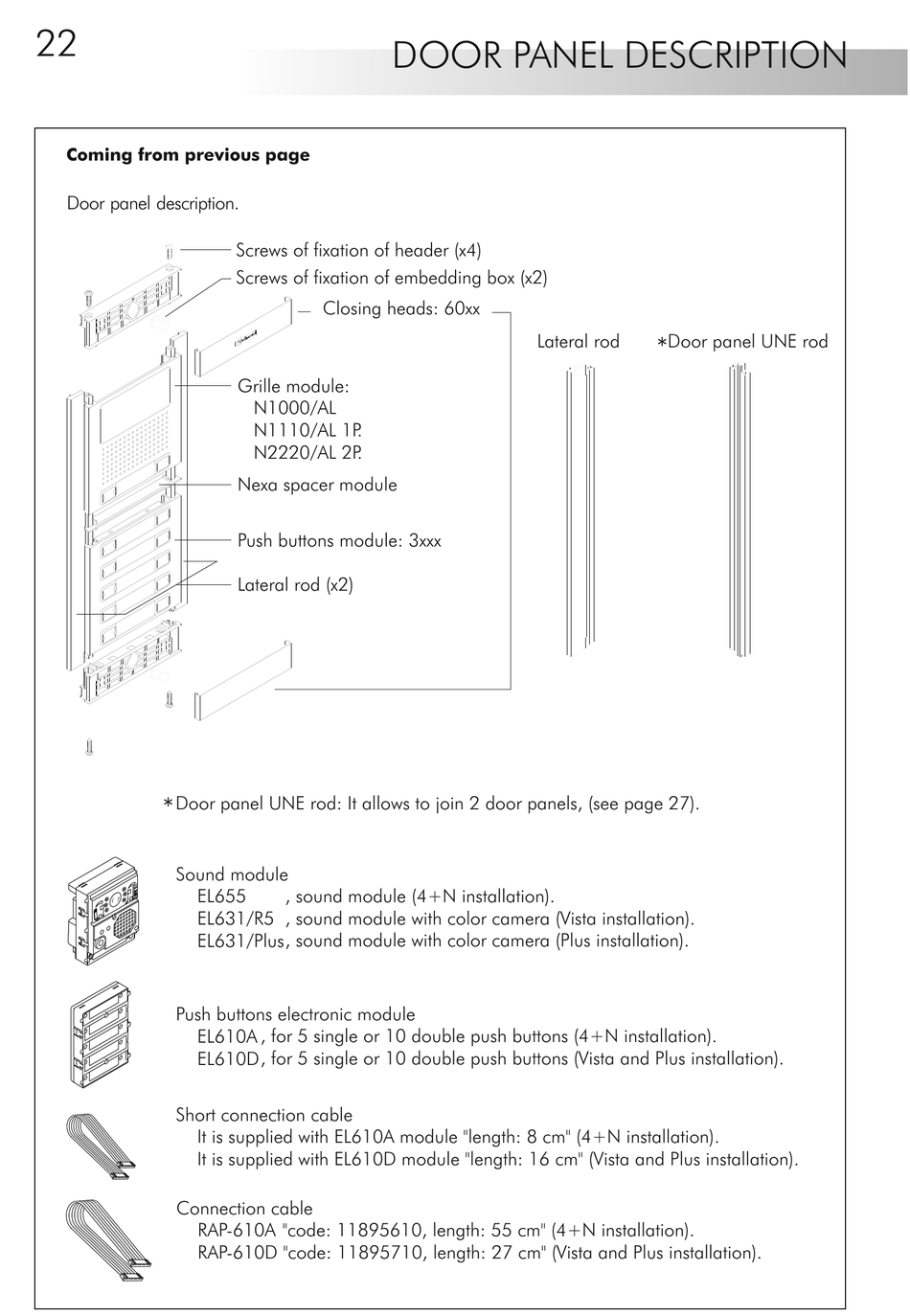

Door panel description.

Door panel UNE rod: It allows to join 2 door panels, (see page 27).
*
Sound module
EL655
EL631/R5
EL631/Plus
Push buttons electronic module
EL610A
EL610D
Short connection cable
It is supplied with EL610A module "length: 8 cm" (4+N installation).
It is supplied with EL610D module "length: 16 cm" (Vista and Plus installation).
Connection cable
RAP-610A "code: 11895610, length: 55 cm" (4+N installation).
RAP-610D "code: 11895710, length: 27 cm" (Vista and Plus installation).
DOOR PANEL DESCRIPTION
Screws of fixation of header (x4)
Screws of fixation of embedding box (x2)
Closing heads: 60xx
Grille module:
N1000/AL
N1110/AL 1P .
N2220/AL 2P .
Nexa spacer module
Push buttons module: 3xxx
Lateral rod (x2)
, sound module (4+N installation).
, sound module with color camera (Vista installation).
, sound module with color camera (Plus installation).
, for 5 single or 10 double push buttons (4+N installation).
, for 5 single or 10 double push buttons (Vista and Plus installation).
Lateral rod Door panel UNE rod
*
