G 2 AUDIO AND VIDEO DOOR ENTRY SYSTEM - CODED PANEL B
PROGRAMMING THE DOOR PANEL

Managing proximity keys:

For resident proximity key access and management, the system must have an N3401/GB2 proximity access control
module. TK3401/GB2 key kit not included
IMPORTANT: It is necessary to initially activate the MASTER CARD ADD and MASTER CARD DELETE keys on the
door panel to be managed
Activating MASTER CARD keys on the door panel:
(Step 1)
_
+
C1 NA1 AP-
Relay 1
12Vdc
(Step 2)
(Step 3)

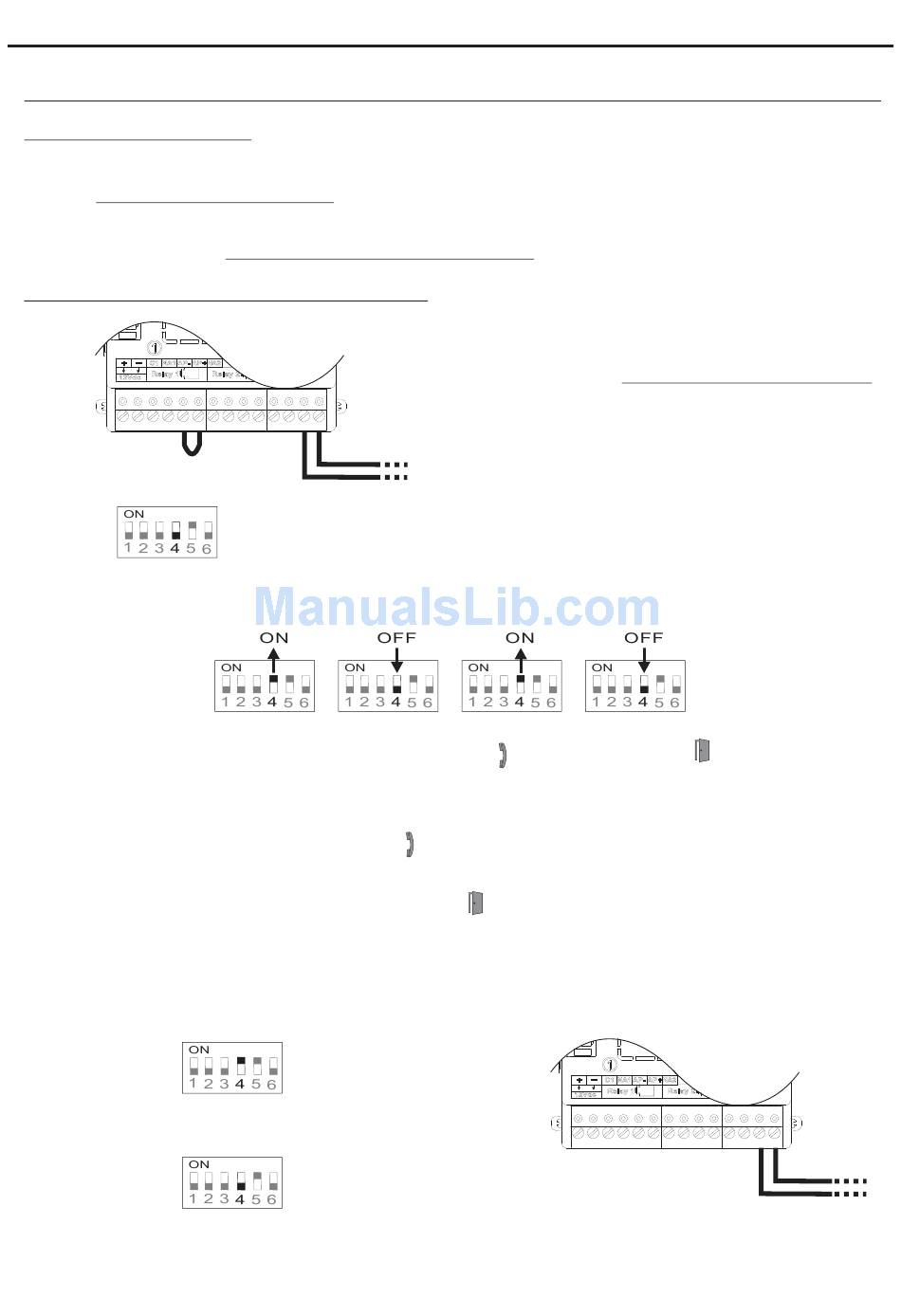

Using the DIP 4 located on the EL632/GB2A module, perform the following sequence:
At the end of the sequence, communication indicator
You then have 10 seconds to perform the following step.
(Step 4)
Hold the MASTER CARD ADD key near to the proximity reader located on the N3401/GB2 module and,
once stored, communication indicator
Then hold the MASTER CARD DELETE key near to the proximity reader located on the N3401/GB2
module and, once stored, door open indicator
tone.
(Step 5)
Set the DIP 4 on the EL632/GB2A module to the initial position and remove the short circuit between
AP+ and AP-:
ON for buildings
OFF for houses
The same MASTER CARD keys can be added to as many door panels as necessary.
Proximity keys for residents can then be added/deleted as indicated in the following section.
.
before resident keys can be added/deleted
AP+ NA2
Relay 2
With the EL632/GB2A module connected and operating, set its DIP 4 to the
OFF position. (At the end of programming, it must be returned to its initial position,
for buildings/OFF for houses).
.
Cause a short circuit between the AP+ and AP- terminals of Relay 1
on the EL632/GB2A module.
To the FA-GB2/A
power supply.
and door open indicator
will turn off and the door panel will emit a confirmation tone.
will turn off and the door panel will emit a confirmation
will illuminate.
_
+
C1 NA1 AP- AP+ NA2
Relay 1 Relay 2
12Vdc
27
