G 2 AUDIO AND VIDEO DOOR ENTRY SYSTEM - CODED PANEL B

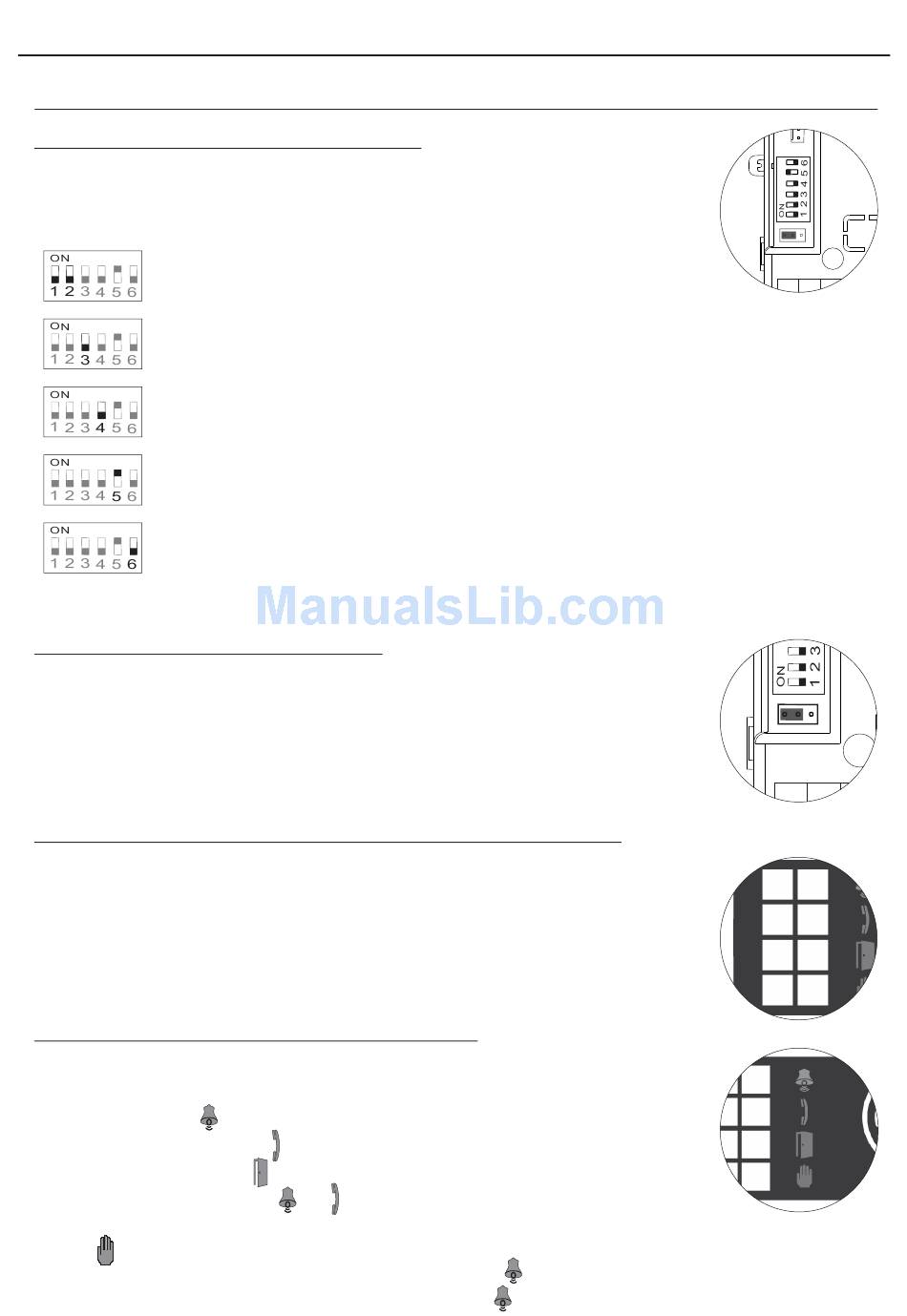

DESCRIPTION OF THE SOUND MODULE

Description of the sound module DIP switch:

The DIP switch is located on the left side of the back of the module.
Door panel address:
( )
*
DIP switches: 1 and 2 OFF (address 1), 1 ON and 2 OFF (address 2), 1 OFF
and 2 ON (address 3), 1 and 2 ON (address 4).
( )
*
Leave in the OFF position for door panels with double button and set to ON for
door panels with single button.
( )
*
Leave in the OFF position for use with door panels in houses and set to ON for
use in apartment buildings.
Leave in the ON position to set the door opening time using the configuration
( )
*
menu. Set to OFF to set the door opening time to 1 second.
( )
Set to ON to configure: (see pp. 7-8)
*
Sound module operating mode. Leave in the OFF position once configuration is
complete.
( )
*
Factory setting.
Description of the configuration jumper:
Important: Do not change the factory default position of the configuration jumper.
( )
*
Factory setting.

Description of the door panel lighting LEDs for low light conditions:

The door panel lighting LEDs will turn on during a call if the door panel lighting at
that moment is low. This enables the user to view the person who has called
from the apartment monitor.

Description of the visual signals on the door panel:

Visual signals on the door panel, indicating:
- While calling: LED
- During communication: LED
- During door release: LED
- End of communication: LEDs
- Calling at one door panel while another door panel is communicating (if there is more than one door panel):
LED will illuminate for 3 seconds.
- While calling and the monitor is in 'Do not disturb' mode: LED
- While calling (apartment with no monitor or telephone): LED
will illuminate during in call and in communication times.
will illuminate during the communication process.
will illuminate during door release.
and will turn off.
will illuminate for 4 seconds.
will illuminate for 4 seconds.
