golmar GB2 Nexa Modular User Manual

golmar GB2 Nexa Modular User Manual

Video door entry system kit 2-wire
Hide thumbs Also See for GB2 Nexa Modular:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Quick Manual
TECHNOLOGY
G 2 B Video Door Entry
System Kit 2-Wire
Nexa Modular
Code 50122080
REV.0 1
3 7
T
KIT632A VESTA7
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GB2 Nexa Modular and is the answer not in the manual?

Questions and answers

Related Manuals for golmar GB2 Nexa Modular

Summary of Contents for golmar GB2 Nexa Modular

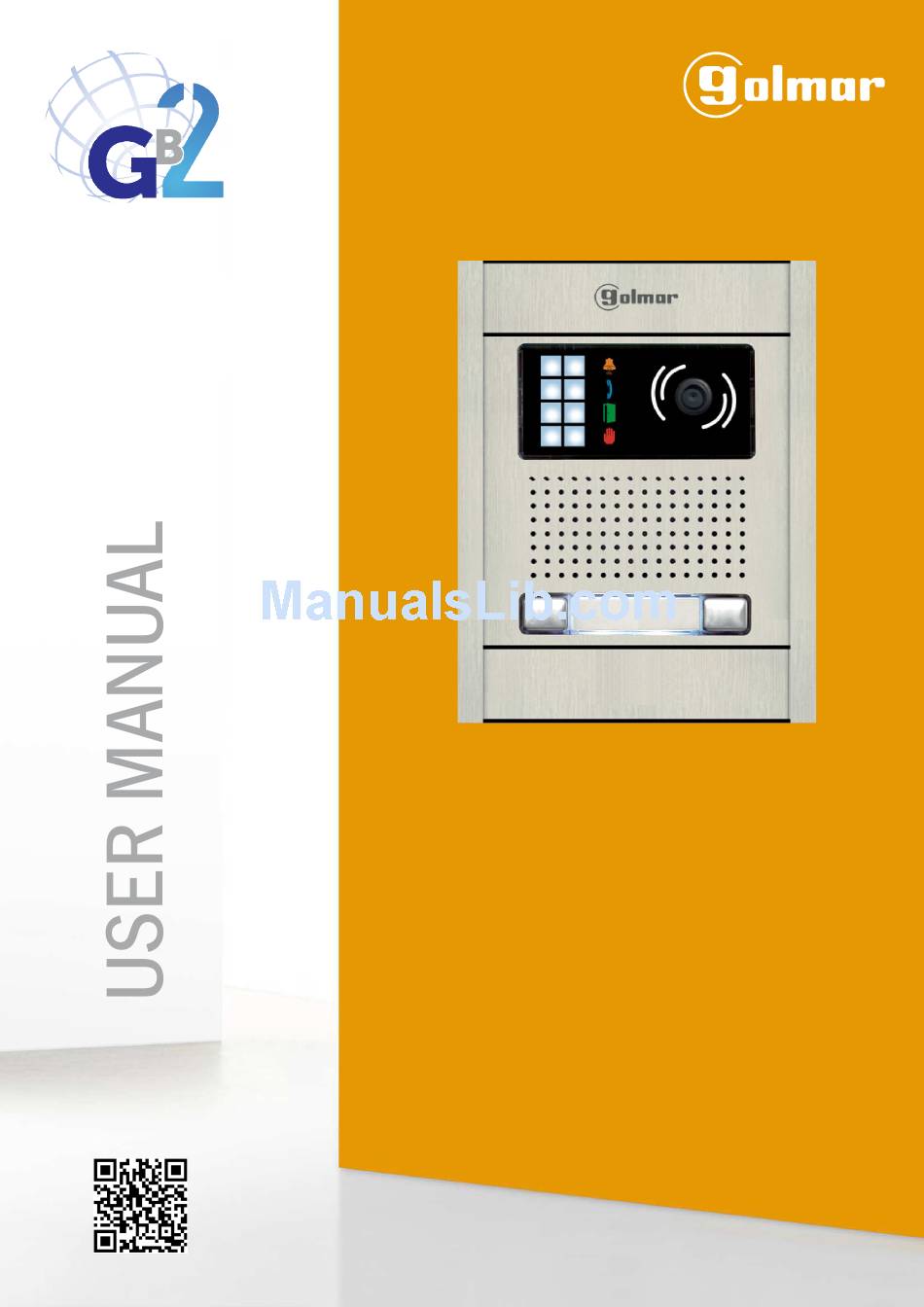

  • Page 1 TECHNOLOGY G 2 B Video Door Entry System Kit 2-Wire Nexa Modular Code 50122080 REV.0 1 KIT632A VESTA7...

  • Page 2: Table Of Contents

    40cm away from any other wiring Before connecting the device to the mains, check the connections between the door panel, power supply unit, distributors, camera interface, GSM interface, monitors and telephones. Use the Golmar RAP-2150 cable (2x1mm ). Always follow the instructions contained in this manual.

  • Page 3: Safety Precautions

    NEXA MODULAR GB2 VIDEO DOOR ENTRY SYSTEM KIT - VILLAS SAFETY PRECAUTIONS Always disconnect the power supply before installing or making modifications to the devices. The fitting and handling of these devices must be carried out by authorised personnel. The wiring must run at least 40 cm away from any other wiring. On the power supply unit: Do not overtighten the screws on the connector.

  • Page 4: Description Of The El632 Gb2A Sound Module

    Do not use (internal use). Button number. Connector (GB2 bus). Connection terminals: Positive, negative (12Vdc output for Golmar DC electric lock). Contact 'C' for electric lock (Relay 1). Contact 'NO' for electric lock (Relay 1). AP ,AP+ Input for exterior door opening button (Relay 1).

  • Page 5: Description Of The Nexa Modular Door Panel

    NEXA MODULAR GB2 VIDEO DOOR ENTRY SYSTEM KIT - VILLAS DESCRIPTION OF THE NEXA MODULAR DOOR PANEL Description of the door panel: Door panel component assembly drawing. Embedding box Frame module Aluminium panel Sound module Sound module EL632 GB2A , video door entry system with colour television camera INSTALLATION OF THE DOOR PANEL Positioning the embedding box:...

  • Page 6: Preparing The Cable Entry

    NEXA MODULAR GB2 VIDEO DOOR ENTRY SYSTEM KIT - VILLAS INSTALLATION OF THE DOOR PANEL Preparing the cable entry: Break the flange to allow entry of cables through the bottom part of the embedding box. Pass the cable through the hole made in the embedding box.

  • Page 7: Codes Assigned To The Call Buttons

    NEXA MODULAR GB2 VIDEO DOOR ENTRY SYSTEM KIT - VILLAS INSTALLATION OF THE DOOR PANEL Codes assigned to the call buttons of the sound module: EL632 GB2A C1 NA1 C2 AP+ AP- P1 P2 BUSBUS Relay 1 Relay 2 12Vdc s 16 31 s 0 15 odes...

  • Page 8: Description Of The Configuration Jumper

    NEXA MODULAR GB2 VIDEO DOOR ENTRY SYSTEM KIT - VILLAS INSTALLATION OF THE DOOR PANEL Description of the configuration jumper: Important: Do not change the factory default position of the configuration jumper. Factory setting. Description of the door panel illumination LEDs (for low light conditions): The door panel lighting LEDs will turn on during a call if the door panel lighting at that moment is low.

  • Page 9: Adjusting The Door Panel Communication Volume

    NEXA MODULAR GB2 VIDEO DOOR ENTRY SYSTEM KIT - VILLAS INSTALLATION OF THE DOOR PANEL Adjusting the door panel communication volume: If after starting the system the door panel audio volume seems inadequate, follow these steps: Call an apartment. When the call is received in the apartment, establish communication by pressing button on the monitor.

  • Page 10: Configuring The Contact Type For Relay 1 And Relay 2 (Lock Release)

    NEXA MODULAR GB2 VIDEO DOOR ENTRY SYSTEM KIT - VILLAS INSTALLATION OF THE DOOR PANEL Configuring the contact type for Relay 1 and Relay 2 (lock release): To change the contact type for lock release activation of Relay 1 and Relay 2 of the door panel, follow these steps: Disconnect the door panel's power supply.

  • Page 11: Installation Of The Lock Release

    DIN-963 IMPORTANT: The lock release must be 12V DC or AC (Golmar). (See page 19 for AC lock releases and pages 12-19 for DC lock releases). The kit is supplied with two varistors. If connecting an AC lock release to one of the outputs, fit the varistor...

  • Page 12: Wiring Diagrams

    Configure the end of line in Lock release the last monitor. max. 12 Vdc/270mA. DIP 6 to ( ) 1 Important: For AC lock releases or a second lock release, see diagram 'Connection of Golmar AC and DC lock releases' on p. 19.
  • Page 13 DIP 6 to ( ) 1 ( ) 1 Lock release max. 12 Vdc/270mA. ( ) 1 Important: For AC lock releases or a second lock release, see diagram 'Connection of Golmar AC and DC lock releases' on p. 19.
  • Page 14 Relay 1 Relay 2 12Vdc the last monitor. DIP 6 to ON. Lock release max. 12 Vdc/270mA. Important: For AC lock releases or a second lock release, see diagram 'Connection of Golmar AC and DC lock releases' on p. 19.
  • Page 15 Configure the end of line in 12Vdc the last monitor DIP 6 to ON. Lock release max. 12 Vdc/270mA. ( ) 2 Important: For AC lock releases or a second lock release, see diagram 'Connection of Golmar AC and DC lock releases' on p. 19.
  • Page 16 Configure the end of line in the last monitor. DIP 6 to ON. Lock release max. 12 Vdc/270mA. Important: For AC lock releases or a second lock release, see diagram 'Connection of Golmar AC and DC lock releases' on p. 19.
  • Page 17 Configure the end of line in the last monitor. Lock release DIP 6 to ON. max. 12 Vdc/270mA. ( ) 2 Important: For AC lock releases or a second lock release, see diagram 'Connection of Golmar AC and DC lock releases' on p. 19.
  • Page 18 Relay 2 Relay 1 Relay 2 12Vdc 12Vdc Lock release Lock release max. 12 Vdc/270mA. max. 12 Vdc/270mA. Important: For AC lock releases or a second lock release, see diagram 'Connection of Golmar AC and DC lock releases' on p. 19.

  • Page 19: Wiring Diagrams

    NEXA MODULAR GB2 VIDEO DOOR ENTRY SYSTEM KIT - VILLAS WIRING DIAGRAMS: Connection of Golmar DC and AC lock releases. Connection of 2 DC lock releases without 'AP': Access panel To the FA-GB2/A power supply C1 NA1 C2 AP+ AP- P1 P2 BUSBUS...
  • Page 20 C/ Silici, 13 08940- Cornellá de Llobregat SPAIN Golmar se reserva el derecho a cualquier modificación sin previo aviso. Golmar se réserve le droit de toute modification sans préavis. Golmar reserves the right to make any modifications without prior notice.
