Chapter 5: Configuring the IF4IH for A MicroLogix 1500 Using RSLogix 500
User' s Manual 0300215-03 Rev. A

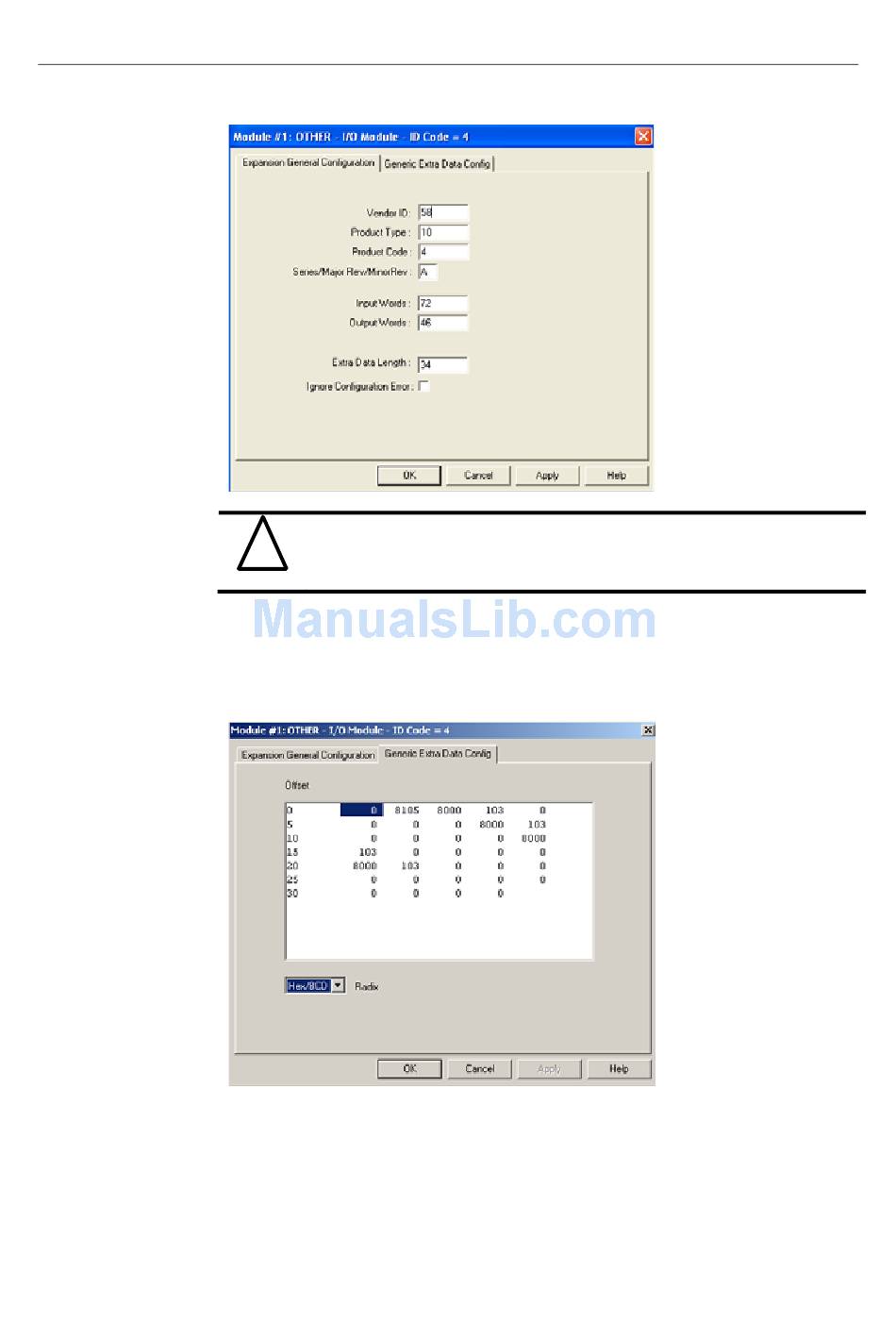

Figure 5-7
When using the read IO configuration feature in RSLogix, you need to
!
manually enter 34 into the "extra data length" field.
Attention
To configure the module select the Generic Extra Data Configuration tab. Enter the
decimal equivalent of each configuration word. There are a total of thirty four words that
need to be configured altogether. The module default settings are used if all the
configuration words are left at zero.
Figure 5-8
NOTE: For a complete description of each of these parameters and the choices
available for each of them, refer to Chapter 6.
5-5
