Chapter 5: Configuring the IF4IH for A MicroLogix 1500 Using RSLogix 500
User' s Manual 0300215-03 Rev. A
5. Right mouse click and select paste.

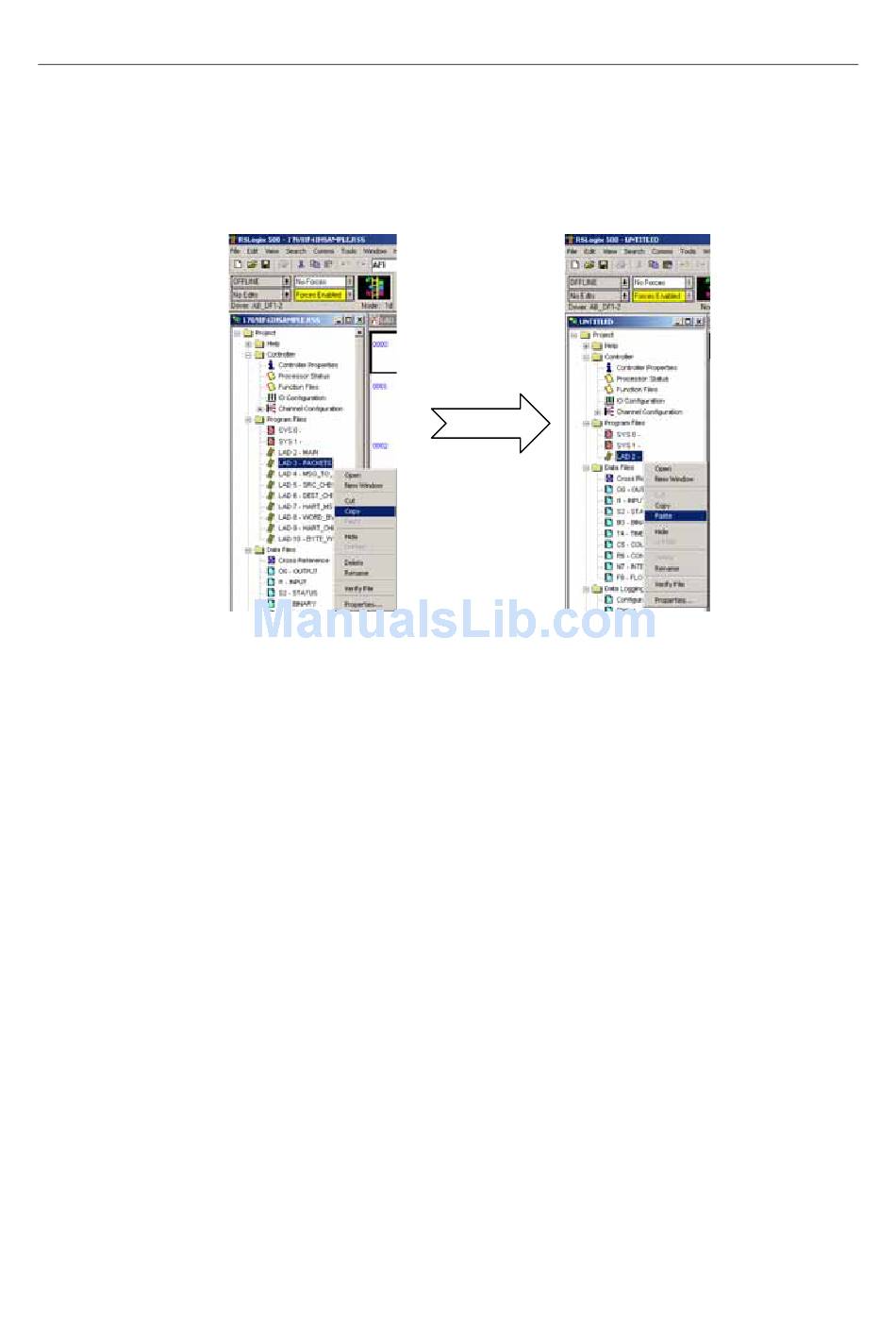

Figure 5-9 (Copying Routines)
Sample
Project

5.3.2 Copying Ladder from the Sample Project

To copy ladder, follow the procedure below:
1. Open the sample project and your project
2. Open the routine that you wish to copy the ladder from.
3. Select the rungs by clicking the left mouse button. To select more rungs, select
the first rung you wish to copy and while holding the shift key, select the last
rung you wish to copy.
4. Right mouse click and select copy.
5. Open the routine in your project where you wish to place the new rungs.
6. Select the paste point by left mouse clicking.
7. Right mouse click and select paste.
Your
Project
Copy
and
paste
5-7
