4-2
Compact IO™ Isolated HART Analog Input Module
User' s Manual 0300215-03 Rev. A

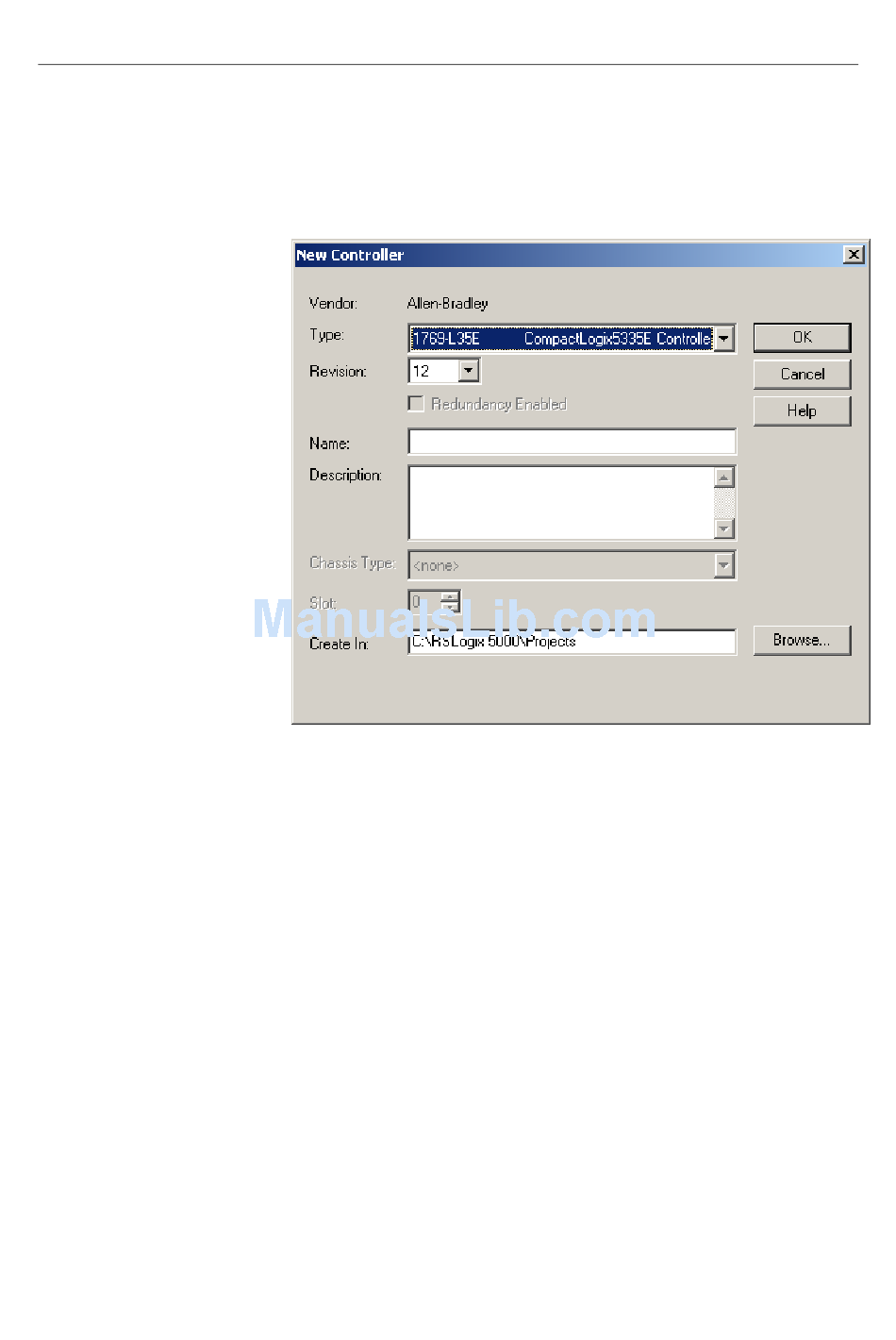

1. Create a new RSLogix 5000 project file. Click on the new project icon or on the
FILE pull-down menu and select NEW. The following screen appears:
Figure 4-2
2. Choose your controller type and enter a name for your project, then click OK.
The following main RSLogix 5000 screen appears:
