Chapter 4: Configuring the IF4IH for CompactLogix Using RSLogix 5000
Section 4.2

Using

The Add-On
Profile
User' s Manual 0300215-03 Rev. A

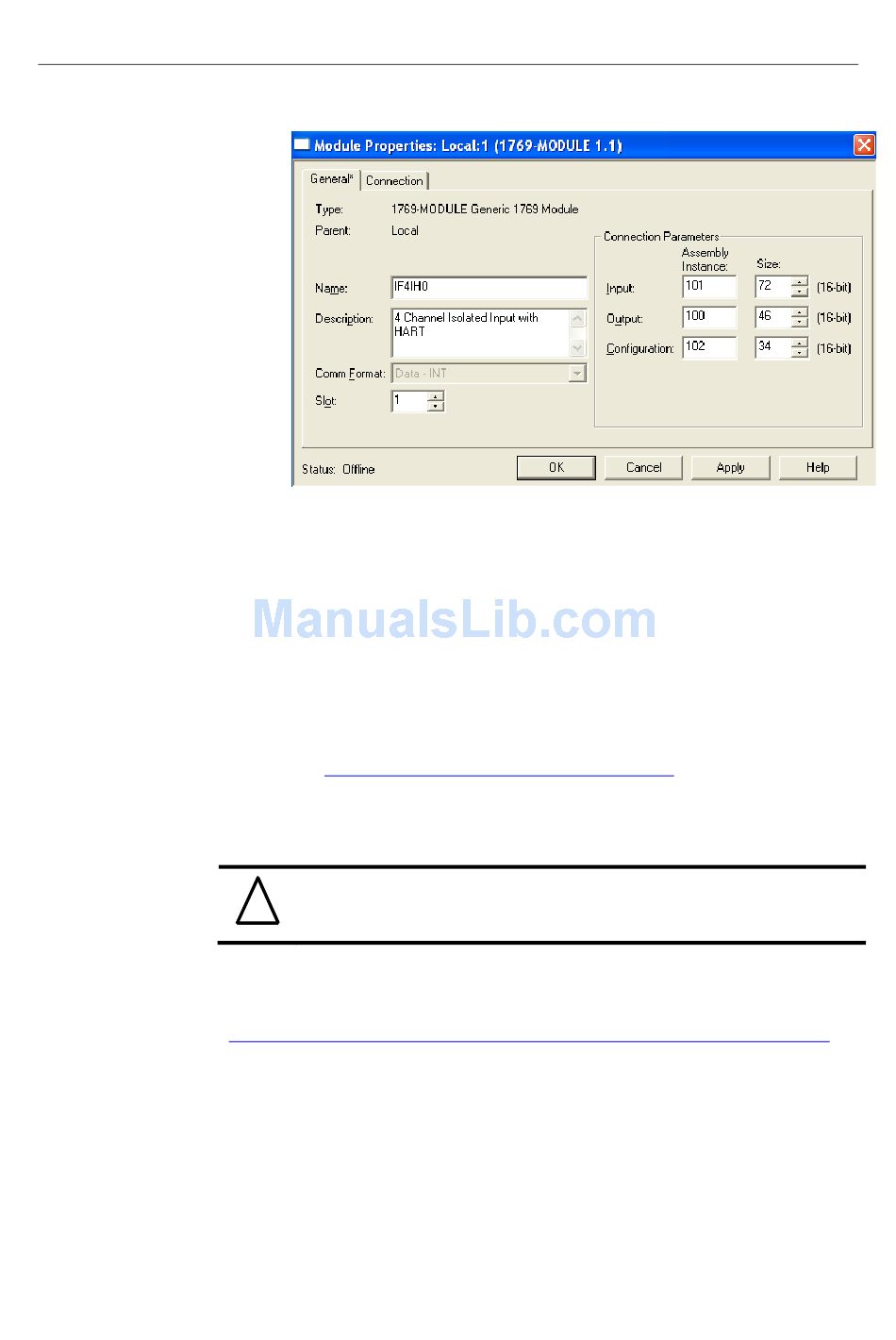

Figure 4-6
7.
At this point you may click "Finish" to complete the configuration of your I/O
module.
Configure each I/O module in this manner. The CompactLogix5320 controller
supports a maximum of 8 I/O modules. The valid slot numbers to select when
configuring I/O modules are 1 through 8.
For RSLogix 5000 version 15 and greater an Add-On module profile is available for
download at (http://www.spectrumcontrols.com/downloads.htm). The Add-On profile
allows the user to add the IF4IH module to the RSLogix 5000 module pick list. The
profile provides configuration and information screens to the user, to simplify
installation. Follow the procedure below to install and use the Add-On profile.
Module firmware 2.0 and greater is required in order to use the Add-On
!
profile.
Attention

4.2.1 Installing the Add-On profile

1.
Download the zipped file from the Spectrum Controls website and unzip the file.
http://www.spectrumcontrols.com/pdfs/abio/SC 1769sc-IF4IH DTM 1.0.0.3 Setup.zip
4-5
