Chapter 5: Configuring the IF4IH for A MicroLogix 1500 Using RSLogix 500
User' s Manual 0300215-03 Rev. A
3.

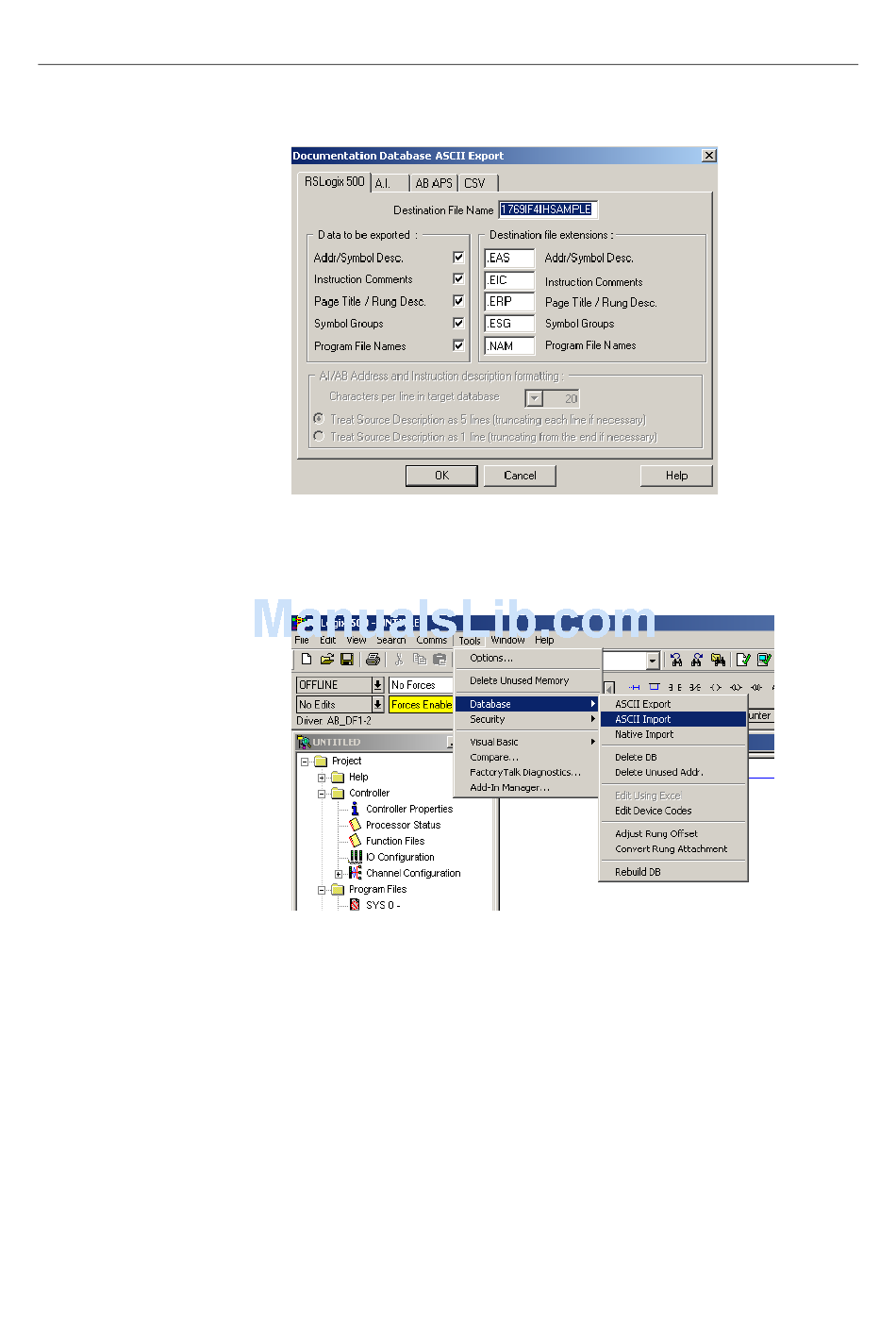

After selecting ASCII export the following screen appears:
4.
Select the RSLogix 500 tab and press the OK button.
5.
Select the location for the export file.
6.
In your project, go to the tools menu, select database, and select ASCII import.
See image below:
5-9
