5-10
Compact IO™ Isolated HART Analog Input Module
User' s Manual 0300215-03 Rev. A
7.

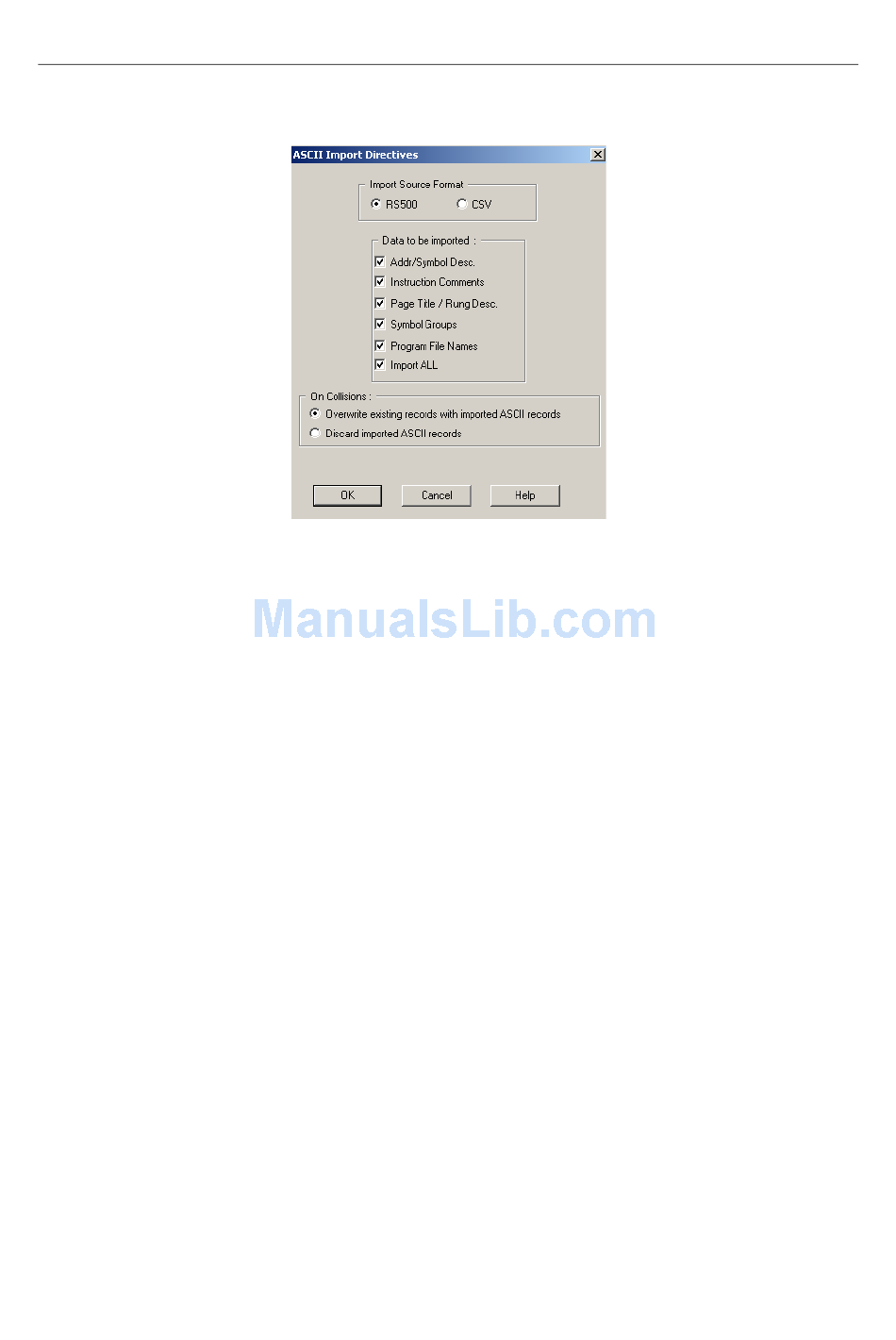

After selecting ASCII import the following screen should appear:
8.
Select the RSLogix 500 radio button and leave everything else at default. After
making your selections, press the OK button.
9.
Select the export file from steps 4 and 5 and press the open button. You may be
prompted for multiple files depending on the selections you made in step 8.
