4-6
Compact IO™ Isolated HART Analog Input Module
User' s Manual 0300215-03 Rev. A

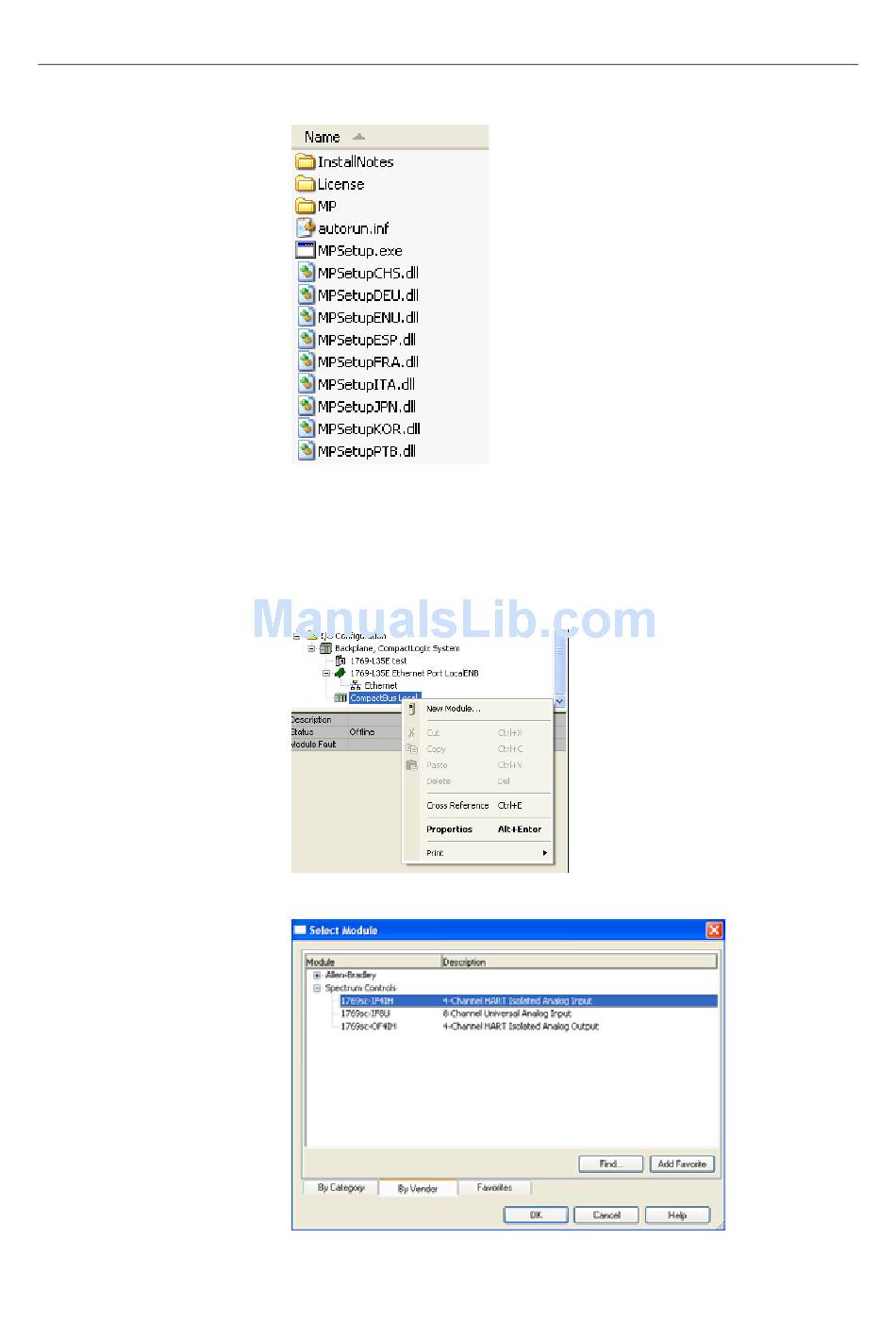

2. Open the created folder and double-click on the MPSetup.exe file.
3. Follow the online prompts.

4.2.2 Adding the IF4IH Module To Your Logix Project

Once the profiles are installed you can access them through RSLogix 5000 via the I/O
Configuration. Follow the procedure below to add a module:
1. In the I/O Configuration, right mouse click on the 1769 CompactBus and select
"New Module".
2. When the dialog screen opens, select the "By Vender" tab and expand the
Spectrum Controls folder.
