5-3
Chapter 5: Configuring the IF4IH for A MicroLogix 1500 Using RSLogix 500

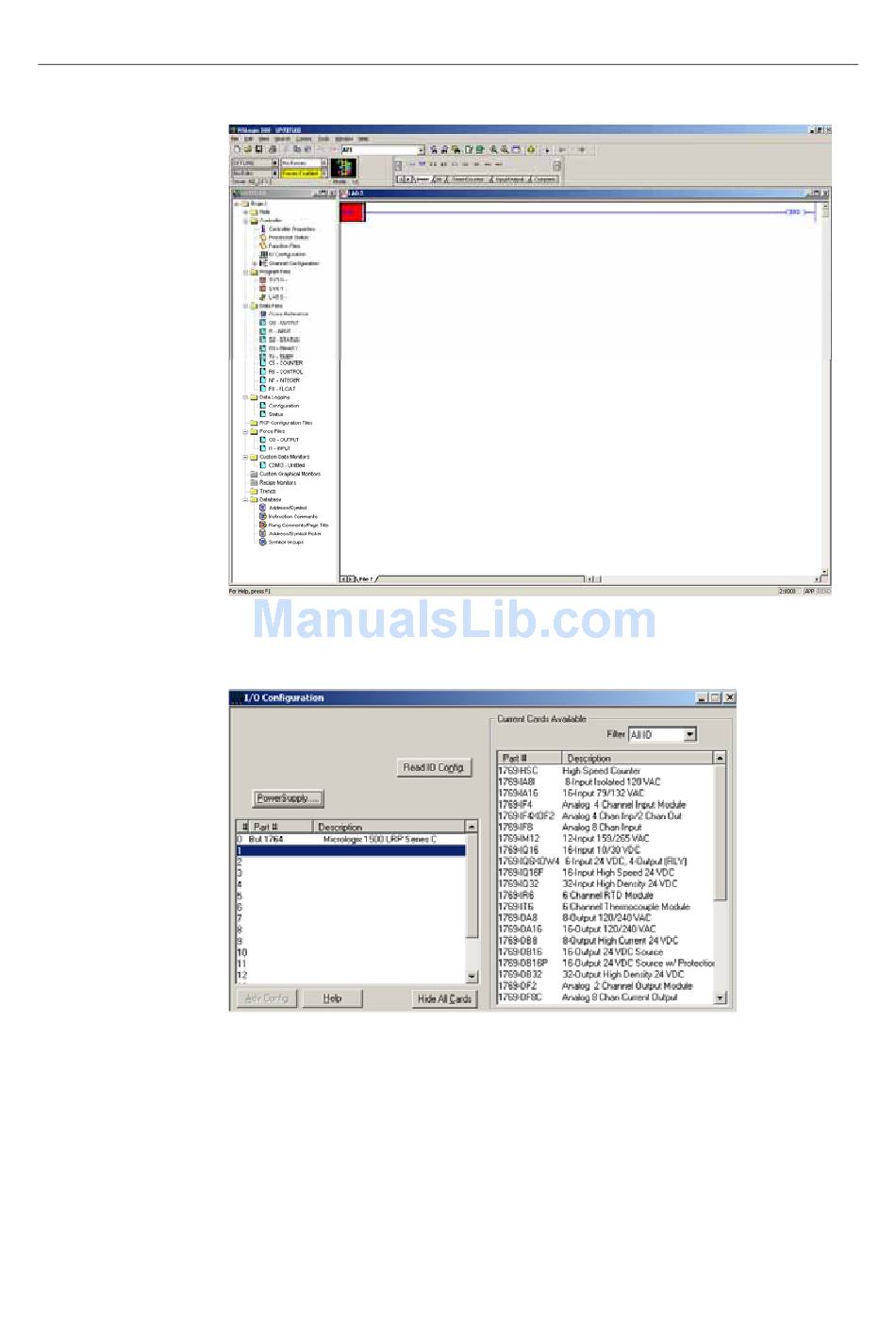

Figure 5-3
While offline, double-click on the IO Configuration icon under the controller folder and
the following IO Configuration screen appears.
Figure 5-4
This screen allows you to manually enter expansion modules into expansion slots, or to
automatically read the configuration of the controller. To read the existing controller
configuration, click on the Read IO Config button.
A communications dialog appears, identifying the current communications configuration
so that you can verify the target controller. If the communication settings are correct,
click on Read IO Config.
User' s Manual 0300215-03 Rev. A
