5-8
Compact IO™ Isolated HART Analog Input Module
User' s Manual 0300215-03 Rev. A

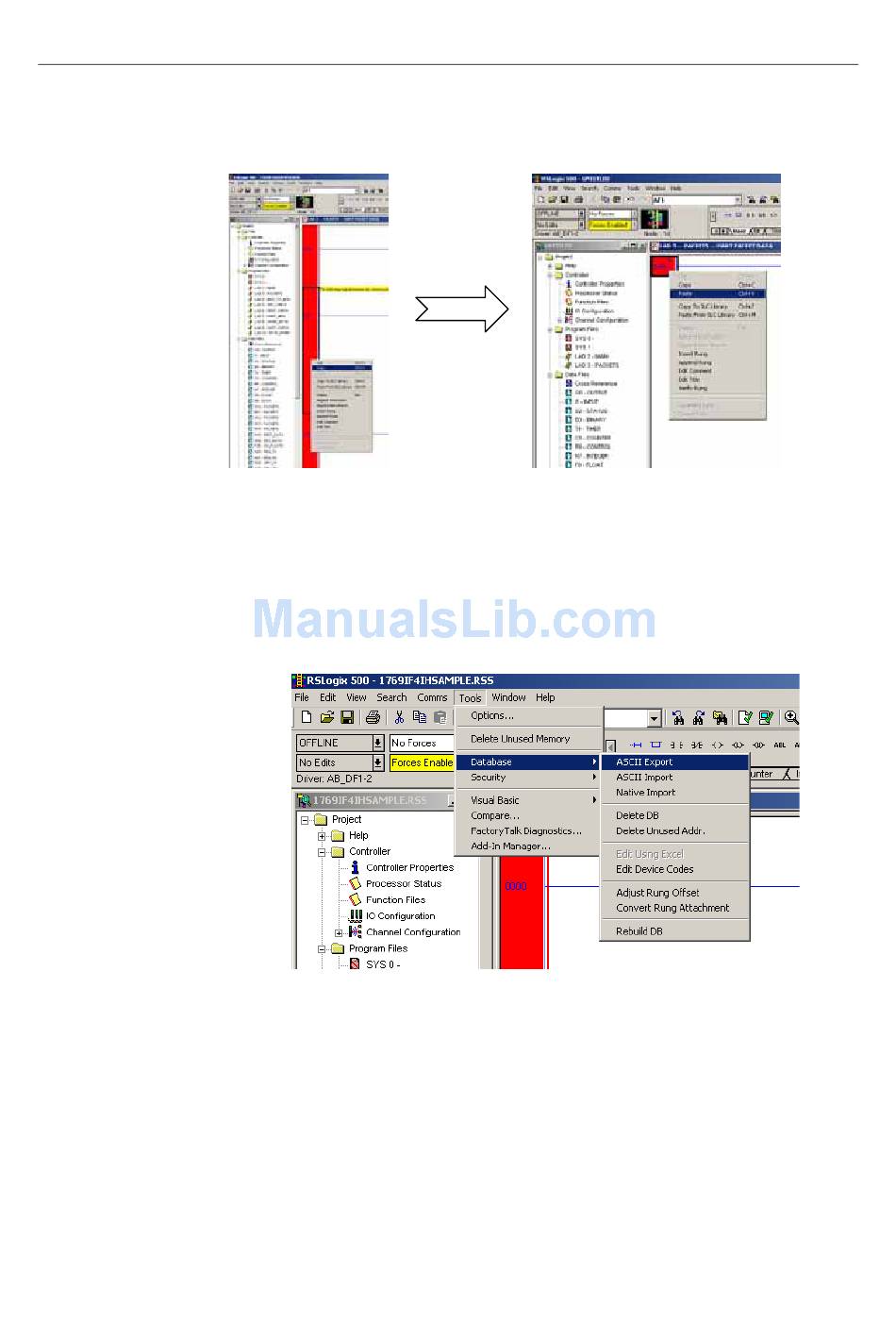

Figure 5-10 (Copying Ladder)
Sample
Project

5.3.3 Importing Tag Database and Rung Comments

After copying the subroutines and or the ladder, you may wish to import the tags and
rung comments. Follow the procedure below to import the tag database and rung
comments:
1. Open the sample project and your project.
2. In the sample project, go to the tools menu, select database, and then select
ASCII export. See image below:
Copy
and
paste
Your
Project
