5-4
Compact IO™ Isolated HART Analog Input Module

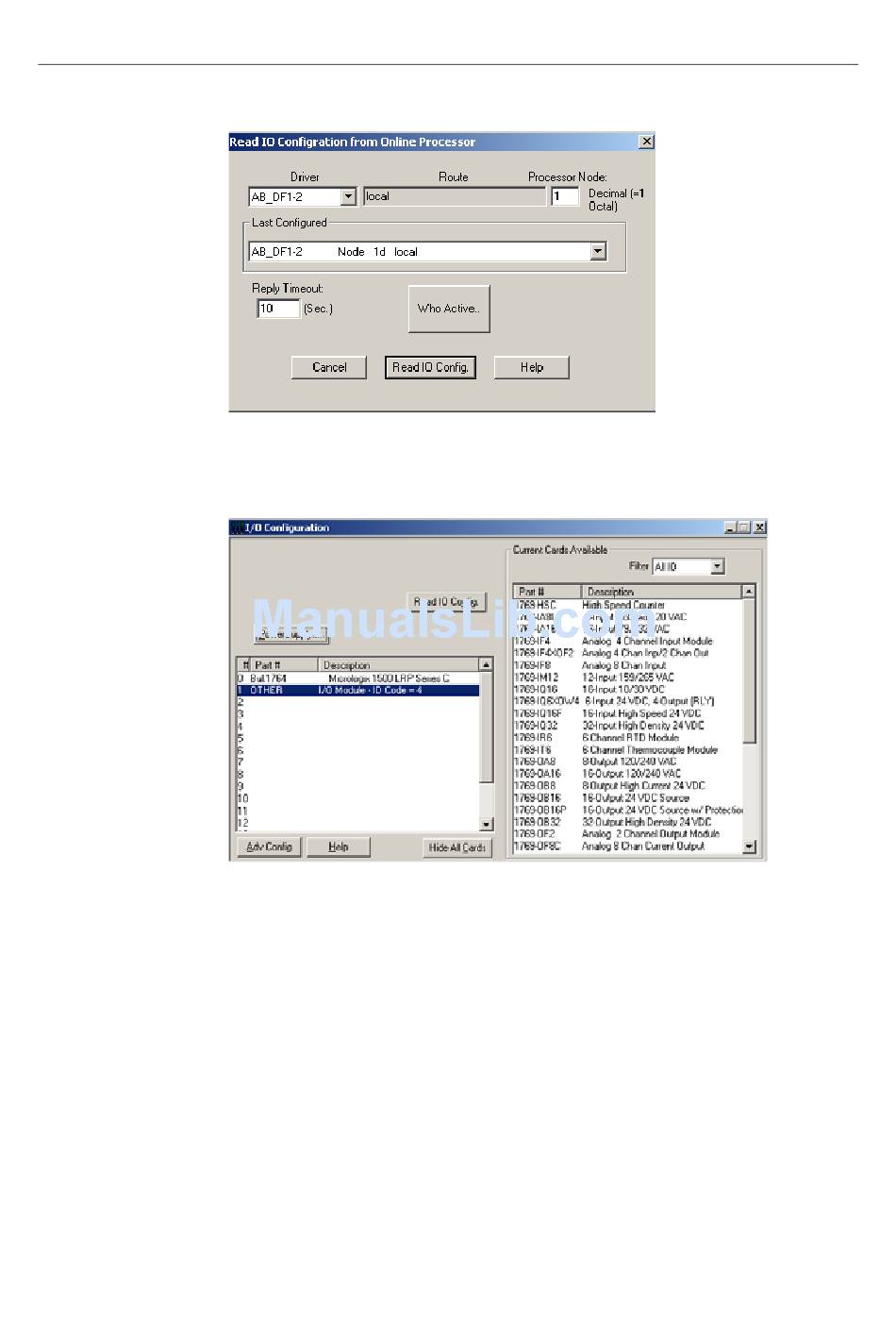

Figure 5-5
The actual I/O configuration is displayed. In this example, a second tier of I/O is attached
to the MicroLogix 1500 processor.
Figure 5-6
The 1769sc-IF4IH module is installed in slot 1. To configure the module, double-click on
the module/slot. The general configuration screen appears.
User' s Manual 0300215-03 Rev. A
