8-8
Compact IO™ Isolated HART Analog Input Module

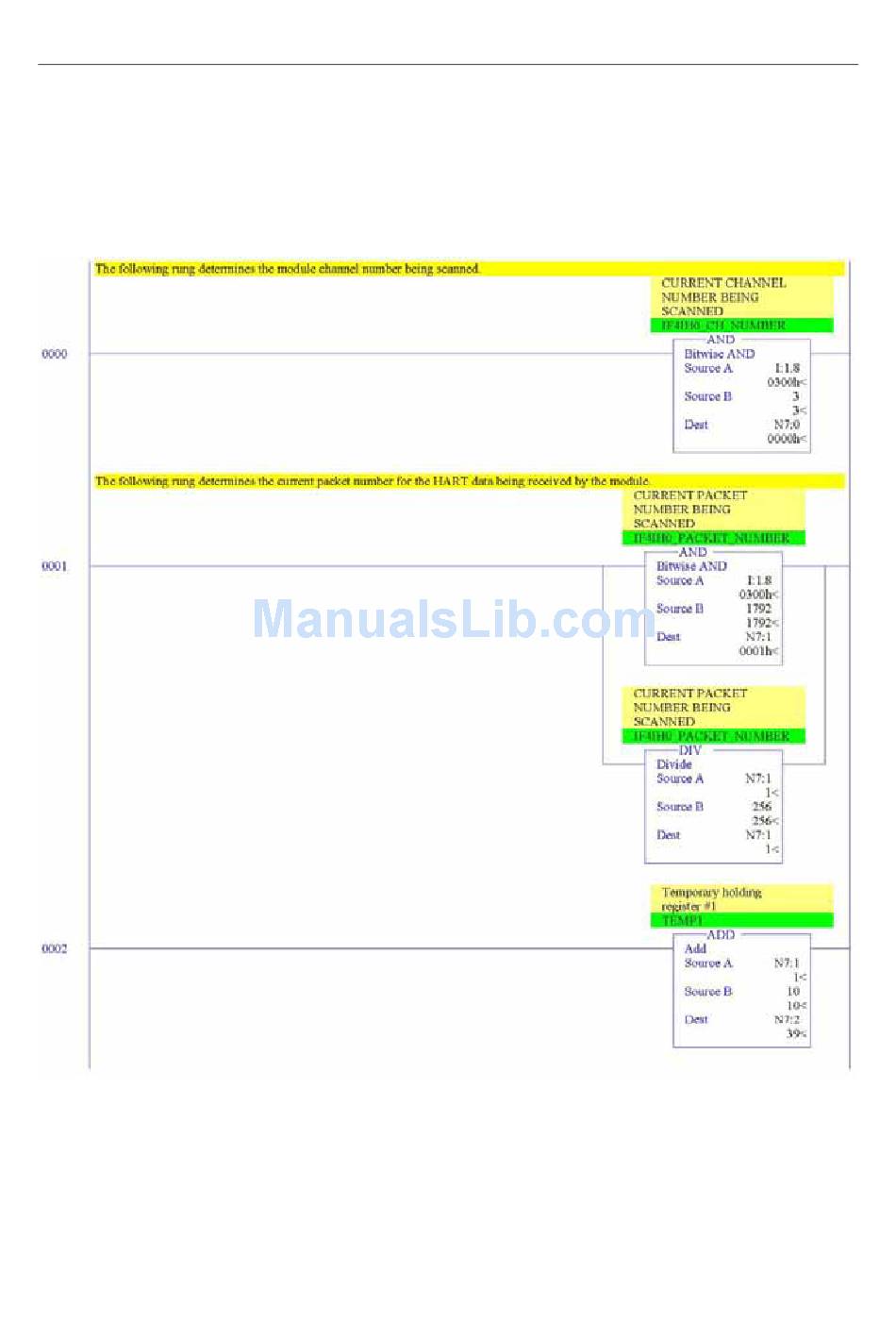

Figure 8-6a (Packets Routine)
User' s Manual 0300215-03 Rev. A

8.2.2 PACKETS Routine

The "packets" routine is used to demultiplex the HART data from the input file to
individual integer files, so that the data can be viewed or used within the ladder program.
This routine is called from the MAIN routine.
