3 Components and Power Supply
Chapter 3 Components and Power Supply
The following chapter provides information on the chassis of the Teldat Connect-104KF router and its components.
This information includes:
• Components.
• Information on assembly.
• Installing and removing modules.
• Power supply.
• RST button.
• Data connection.
• SIM card installation.
3.1 Components
3.1.1 Front Panel

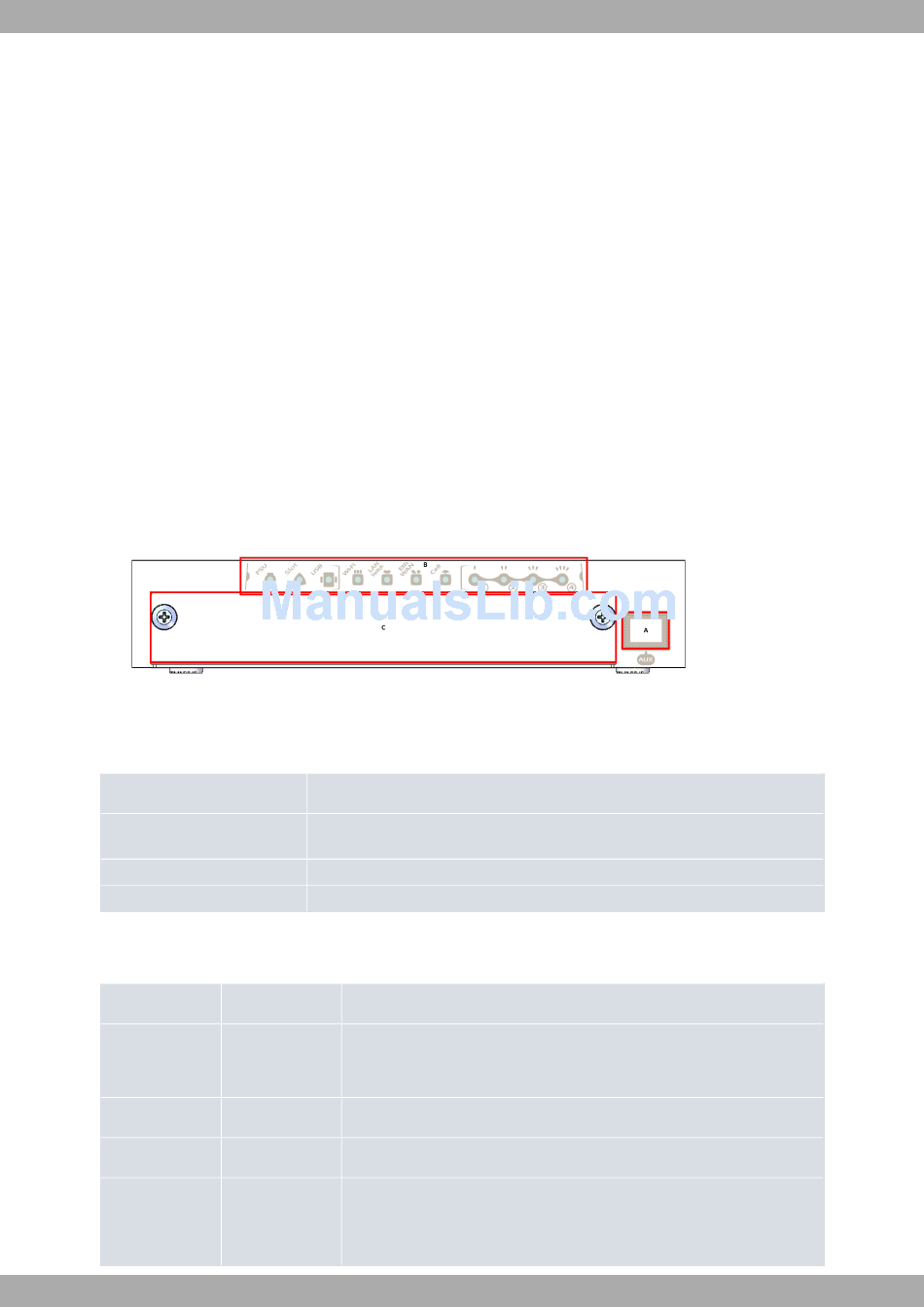

The following figure shows the front panel.
Fig. 1: Front Panel
The items on the front panel are as follows:
FRONT PANEL ELEMENTS TABLE
Item
A
B
C
The LED panel provides information on the status of the components (whether or not they are active) or on network
activity.
LED table
LED
PSU
Slot
USB
Wi-Fi
4
Description
Aux. RJ45 Connector that provides access to the device's local console for config-
uration and monitoring purposes.
LED panel.
Expansion card tray.
Status
Description
Monochrome
Off -> not receiving power from PSU
green
On -> receiving power from PSU
Tricolor
This is not used on this router.
Tricolor
This is not used on this router.
Bicolor
Red -> interface down
Green -> interface up
Teldat S.A.
Teldat Router Connect-104KF
