MECHANICAL INSTALLATION
Dimensions
2–2
The dimensions (in inches [millimeters]) of the 850 are shown below. Additional dimensions
for mounting, and panel cutouts, are shown in the following sections.

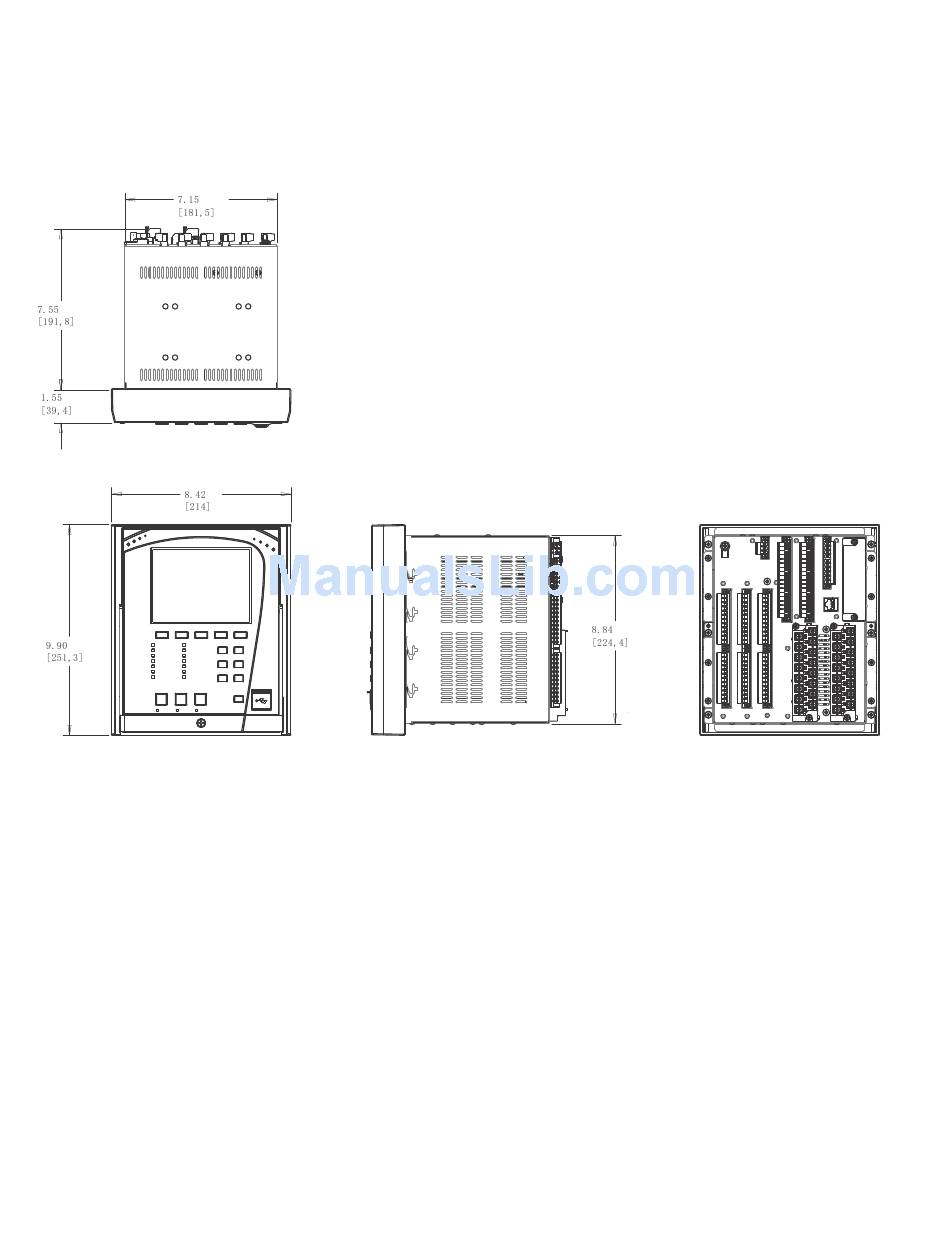

Figure 2-2: 850 Dimensions
850 FEEDER PROTECTION SYSTEM – INSTRUCTION MANUAL
CHAPTER 2: INSTALLATION
