CHAPTER 5: STATUS
Virtual Inputs
850 FEEDER PROTECTION SYSTEM – INSTRUCTION MANUAL
Path:
Status > Virtual Inputs 1(X)
The state of all virtual inputs is shown here, see next figure. The value for each Virtual Input
is shown on the control panel graphically as a toggle switch in either the On (|) state or the
Off (O) state.

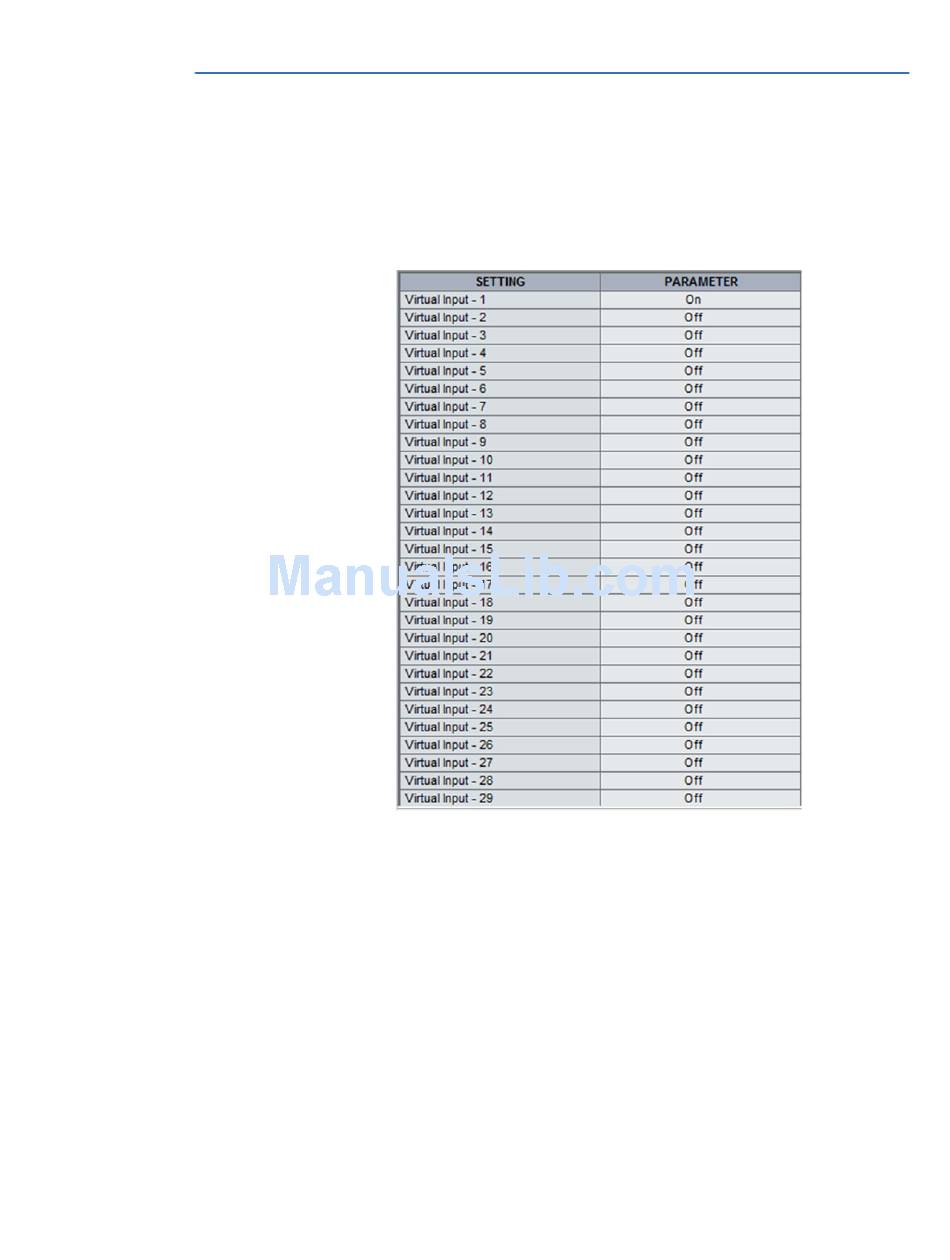

Figure 5-5: Status of Virtual Inputs
VIRTUAL INPUTS
5–7
