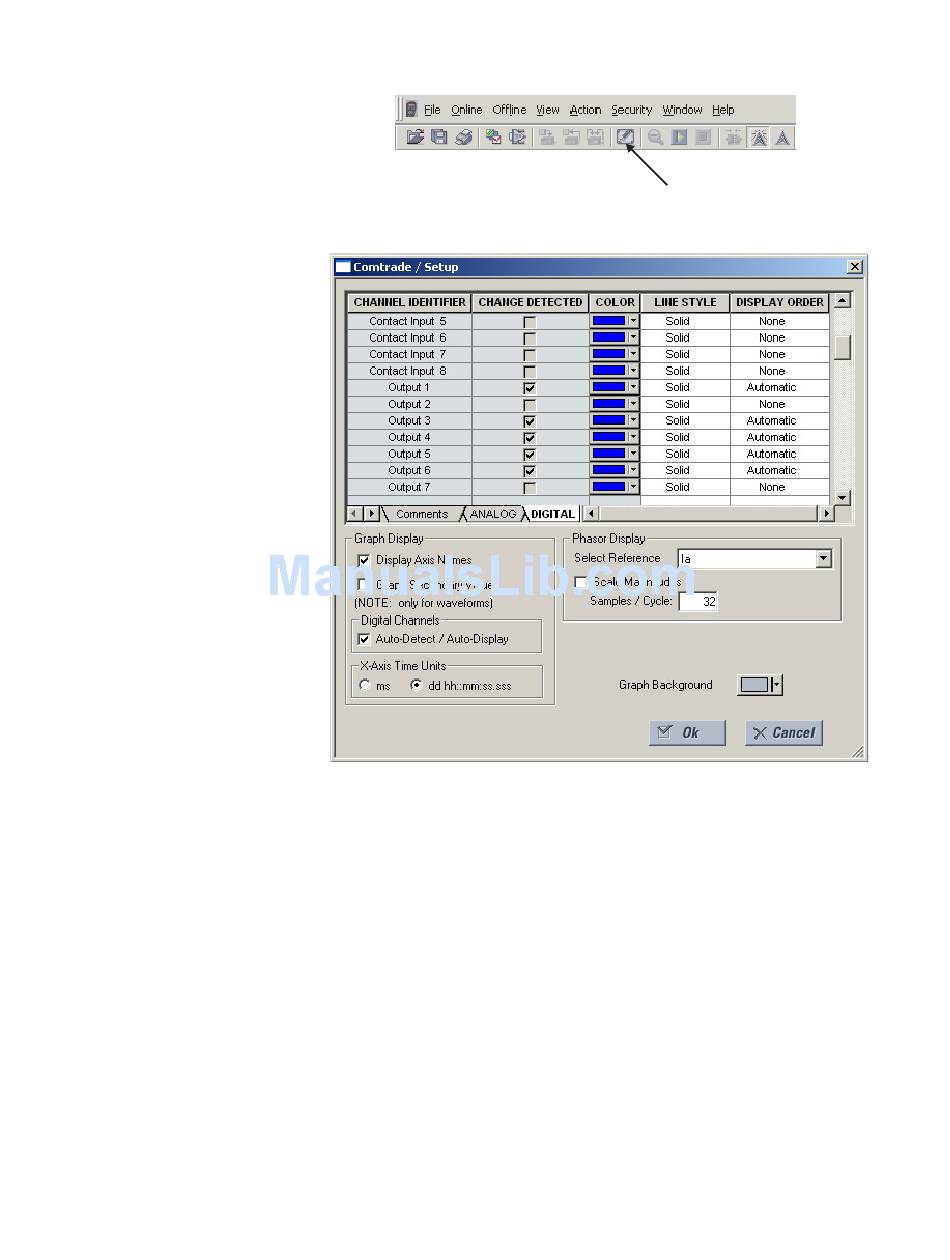

The following window appears:
Change the color of each graph as desired, and select other options as required, by
checking the appropriate boxes. Click OK to store these graph attributes, and to close the
window. The Waveform Capture window reappears based on the selected graph
attributes.
To view a vector graph of the quantities contained in the waveform capture, press the View
Phasors button to display the following window:
SOFTWARE INTERFACE
Preference Button
3–49
