CHAPTER 5: STATUS

Tab Pushbuttons

FASTPATH:
850 FEEDER PROTECTION SYSTEM – INSTRUCTION MANUAL
Figure 5-3: Physical and Graphical Annunciator Panels
Navigation
There are two ways to navigate to the Tab Pushbutton control pages:
• Relay Home Screens
• Path:
Status > Summary > Tab Pushbuttons
Home Screens
By default, the Tab Pushbuttons summary page is programmed as one of the Home
Screens. Press the home button repeatedly to cycle through the programmed Home
Screens.
Tab pushbuttons can only be controlled physically through the front panel of the relay.
Their operation is not available from the setup software.
Path:
Status > Summary > Tab Pushbuttons
The initial view of the Tab Pushbutton controls is the Summary page, which shows the
status of all 20 pushbuttons. To operate the pushbuttons, the user must navigate to the
individual pages where the tab pushbuttons can be used to activate them.

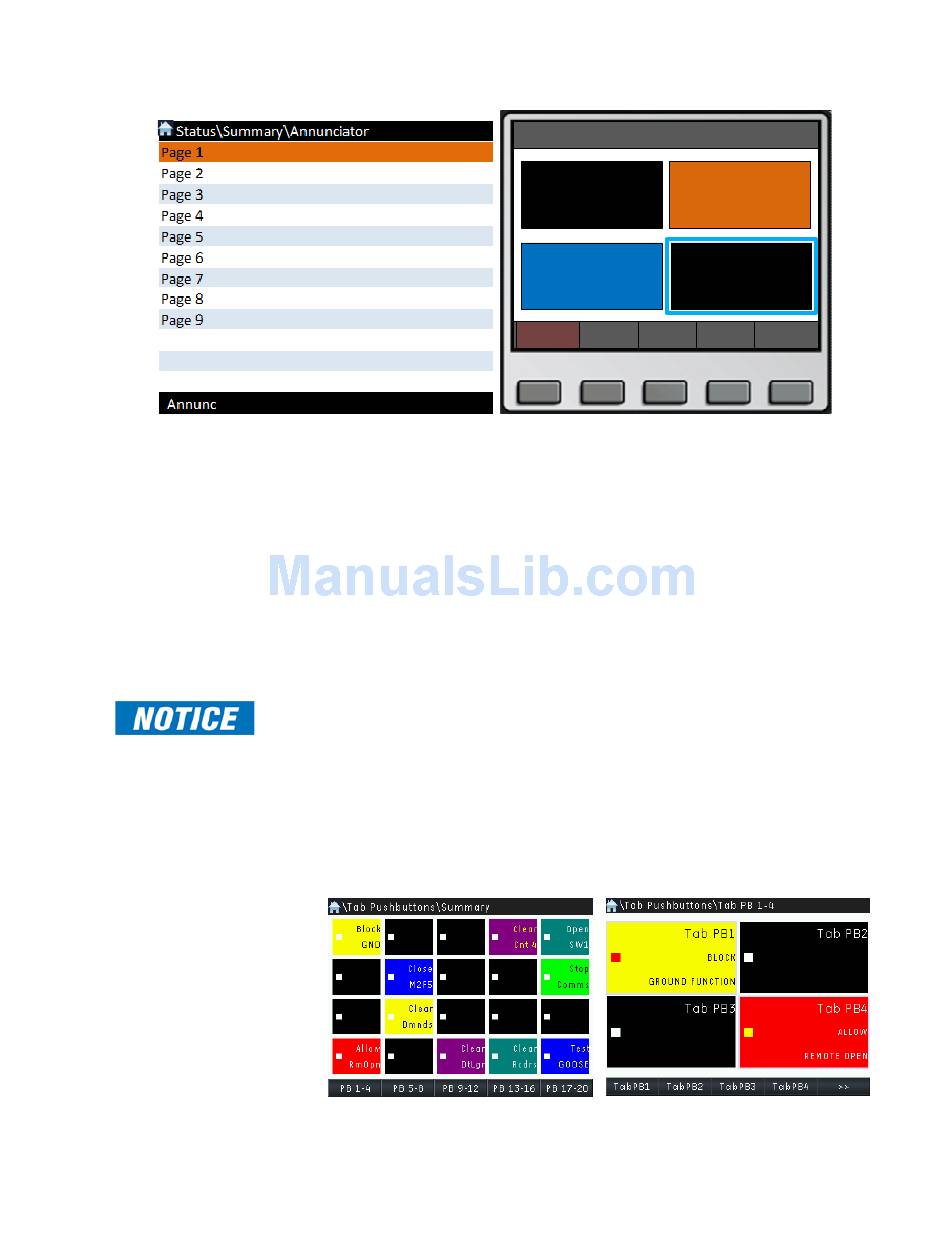

Figure 5-4: Tab pushbutton summary (left) and detailed view (right)
Only the tab pushbuttons that are not set to Disabled are shown in color; labels for the tab
pushbuttons are shown for both active and disabled pushbuttons if labels have been
configured. (Configure tab pushbuttons from
Home\HMI\Annunciator\Page1
Setting
Group 3
Active
AR
Cycle
Active
Ann. Pg1 Ann. Pg2 Ann. Pg3
(from relay)
Device > Front Panel > Tab PBs > Tab PB1(X)
SUMMARY
Sync
Check
Fail
Breaker 2
Failure
Ann. Pg4 >>
.)
