SOFTWARE INTERFACE
CAUTION:
Conversion Summary
Report
CAUTION:

Results Window

NOTE:
OTE
CAUTION:
3–54
5. To select the SR settings file used for initialization, click the Initialize Settings from SR
Settings File button.
6. To locate and select the file to convert, click the button beside the Initialize Settings
from SR Settings File box.
EnerVista 8 Series Setup version 1.2x and above supports conversion of all 750/760
files as long as they are from a 32-bit PC. If the file is 16-bit, it must be converted to 32-
bit using the latest 350 EnerVista Setup before doing the 850 conversion.
7. Click OK to begin the conversion and complete the process. Once this step is
completed, the new file, with a complete path, is added to the EnerVista 8 Series
Setup software environment.
At the end of the conversion process, the results are summarized in a conversion report.
The report is found under Device Definition in the offline file window.

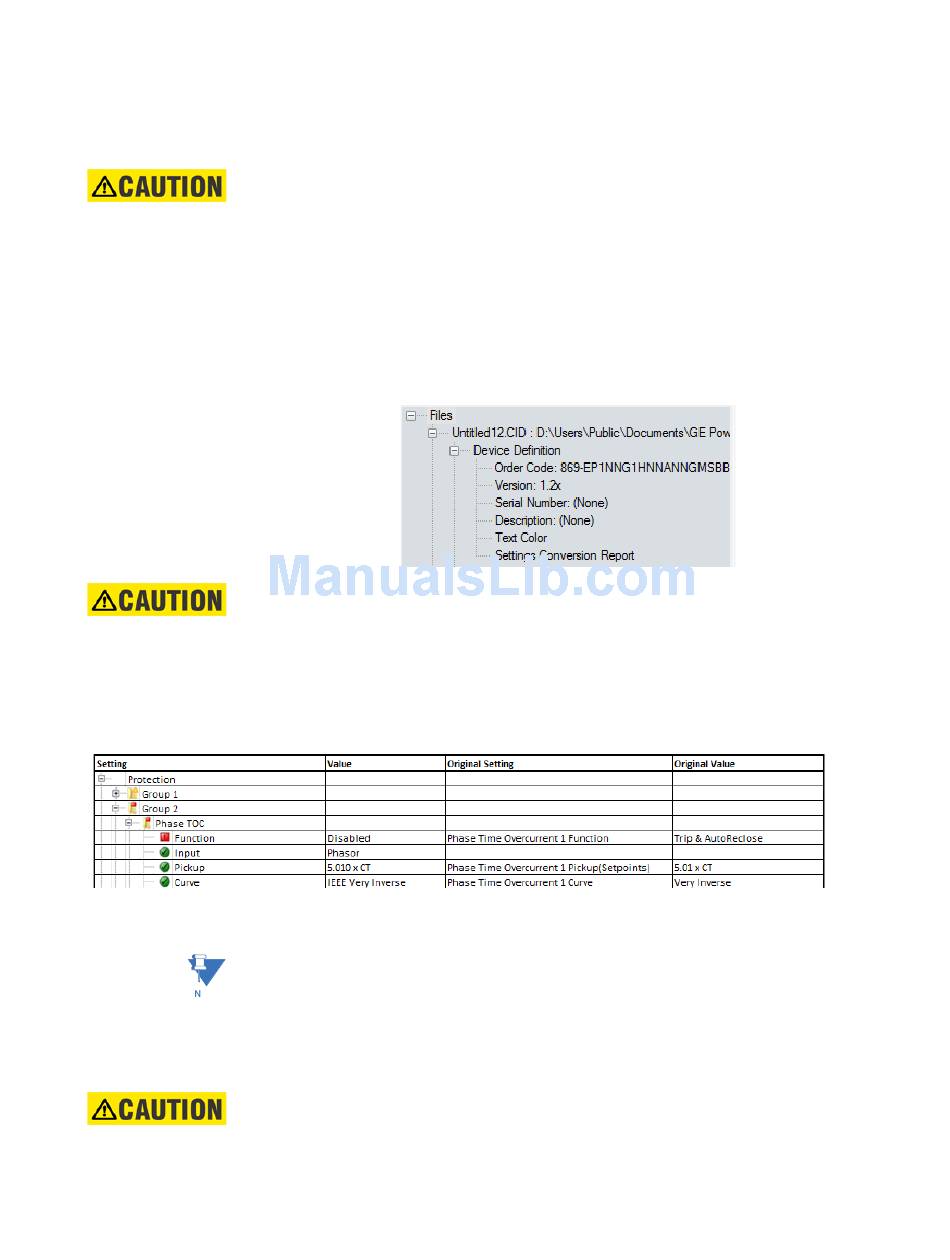

Figure 3-25: Conversion Report in Offline Window
For future reference, the user is advised to take a printout of the conversion report
immediately after the conversion. All conversion reports are removed and become
inaccessible if the user removes or modifies the converted file from the 8 Series Setup
Software.
The following figure shows an example conversion summary results window.
Figure 3-26: Results Window
The results window has the following columns:
• Name: the same tree structure as in the offline window, but with status icons
Settings in the results window are linked to setting screens. This means the user can click in
the results window to navigate to the corresponding 8 Series settings window.
• Value: the converted value for the 8 Series settings file
• Original Name: setting name of the input file
• Original Value: setting value of the input file
All other settings available (not shown in the conversion report) in the 8 Series file are
set to default and must be verified by the user before putting the relay into service.
Status Icons
