6. Acquiring PANO images
4. Use the Vertical Frame Up/Down button or switch option to adjust the height of
the equipment so the patient's chin reaches the chin rest.
5. Guide the patient to stand in the center of the equipment and direct them to remain
in the position outlined below.
● Two hands: Hold the handles of the equipment tightly.
● Chest: Press against the equipment.
● Two feet: Keep both feet close to the inside of the base.
● Shoulders: Keep your shoulders relaxed and balanced.
● Cervical Spine: Straighten your body and stand still.
6. Lower the integrated chin rest to the bottom and turn the knob to fix it.
7. Guide the patient to press the base of their nose (acanthion point) against the chin
rest and tilt their head forward about -5˚. At this point, make sure the patient's jaw
does not to touch the equipment.
8. Direct the patient to maintain the posture as described below.
● Mouth: After swallowing once, open your mouth as wide as possible.
● Tongue: Touch the roof of your mouth.
● Two eyes: Close your eyes.
If the jaw touches the equipment it is difficult to maintain the proper position
to get good images.
Be careful the patient does not to touch the equipment with their jaw.
70 I
PaX-i3D Smart

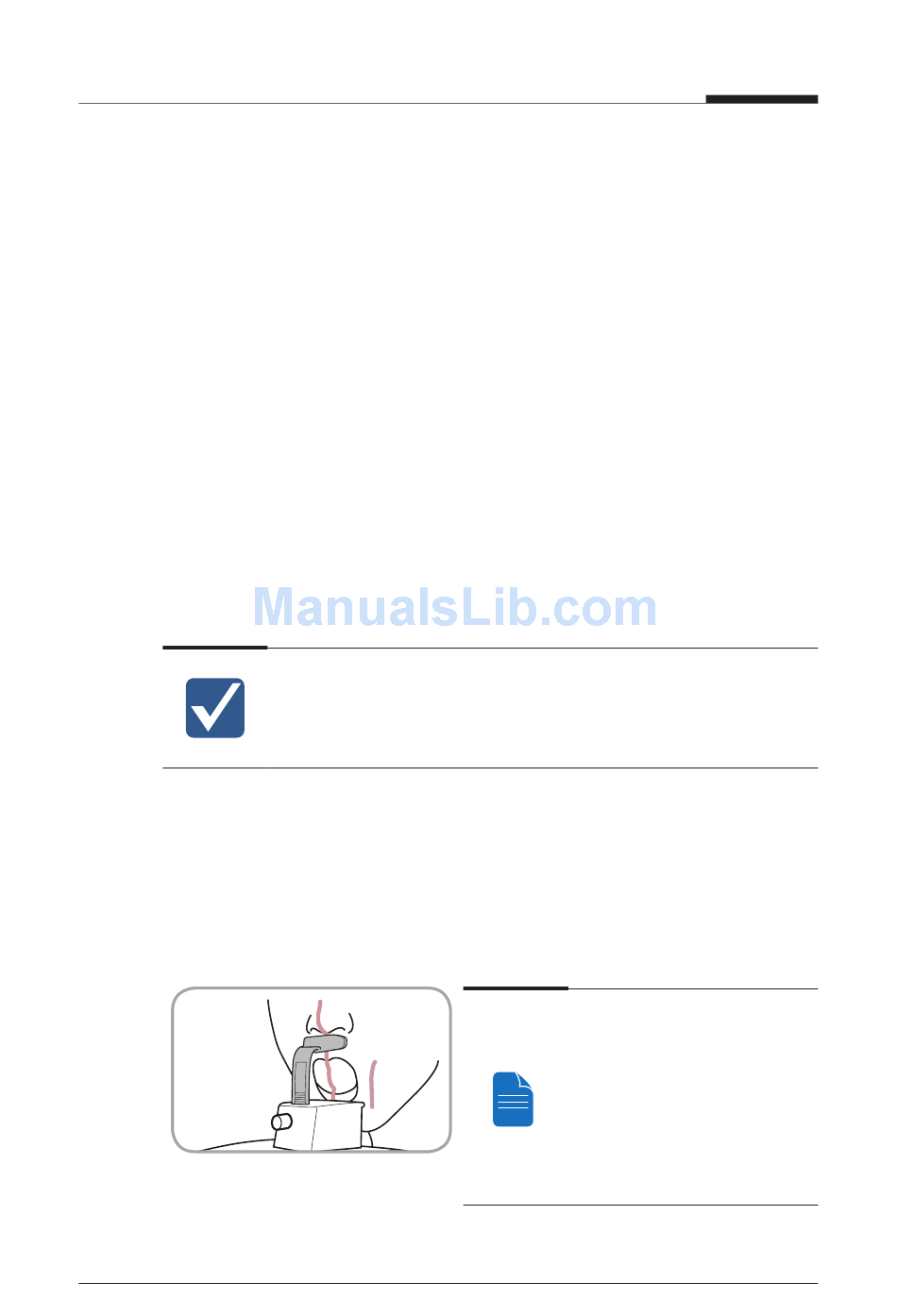

● As shown in the picture, the
support unit of the integrated
chin rest should touch the
patient's acanthion point.
● Ask the patient to maintain
their position until the
operation is completed.
