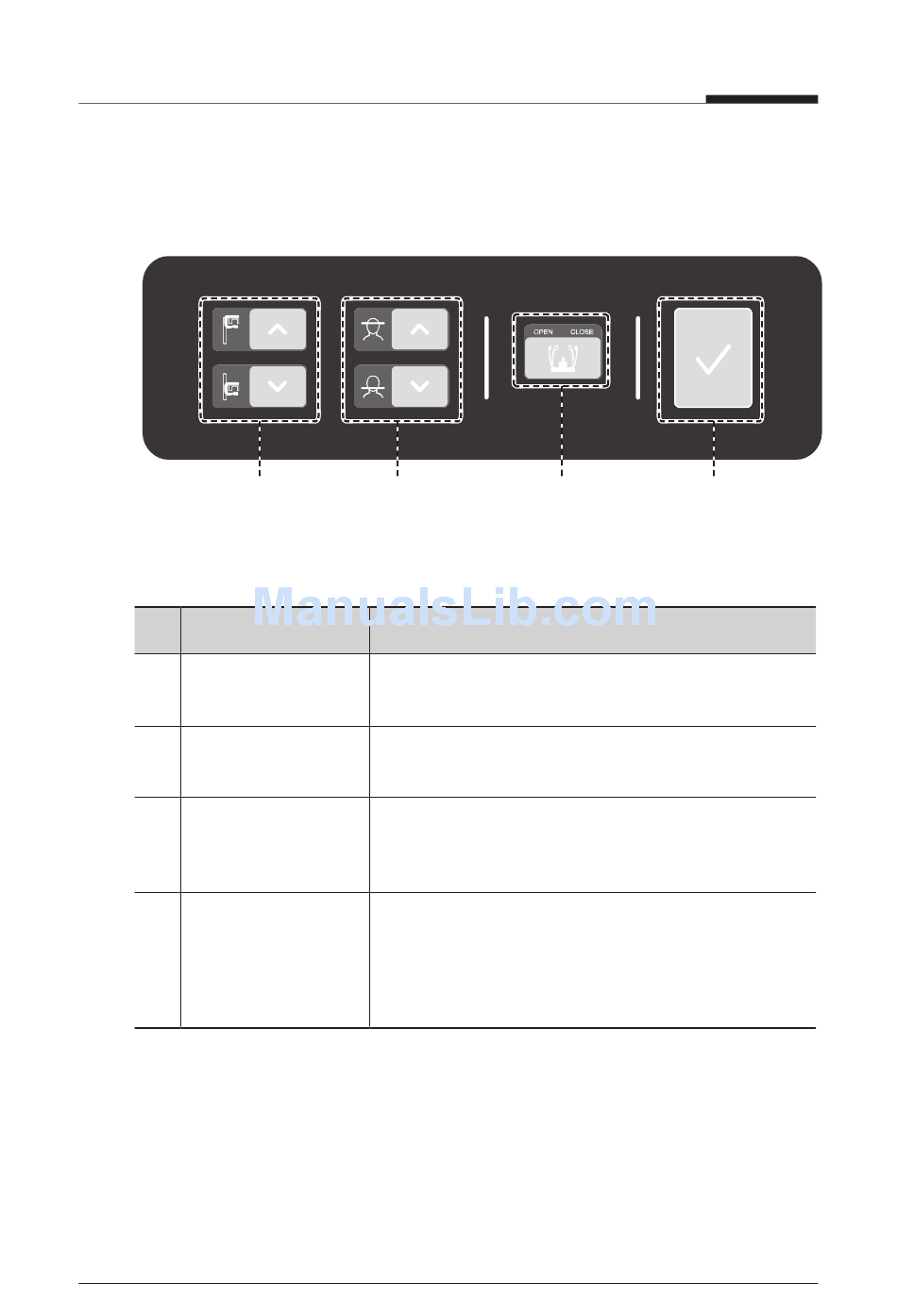

Control Panel


No. Button
Vertical Frame Up/
1
Down button
Horizontal Beam
2
Control button
Temple Support
3 OPEN/CLOSE
button
READY/ RETURN
4
button

Adjusts the vertical frame by moving vertically.
Positions the horizontal beam in PANO mode.
Adjusts the temple supports to position the patient.
When pressed, prepares for operation after
positioning the patient and configuring the
environment settings.
Initializes the positioning of the rotating unit.
26 I
