Oracle X7-8 Service Manual page 150

Servicing PCIe Cards and Carriers (CRU)
DPCC 5 contains PCIe slots 11 and 12
■
DPCC 6 contains PCIe slots 13 and 14
■
DPCC 7 contains PCIe slots 15 and 16
■

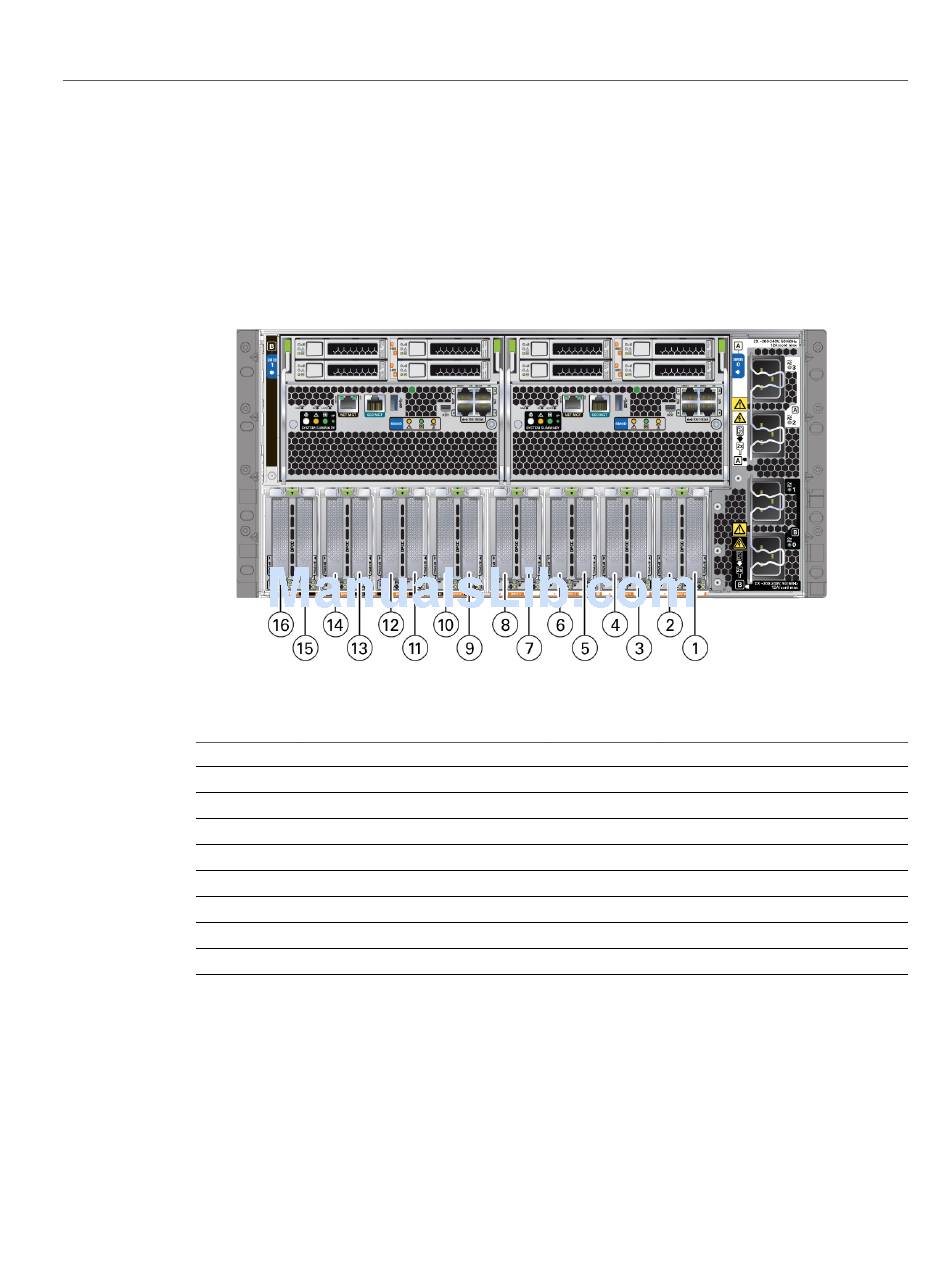

The following figure shows the PCIe slot numbering.
Call Out
1
2
3
4
5
6
7
8
Server PCIe Card Slots
The server contains nine low-profile PCIe slots, eight Gen 3 DPCC slots accessible at the
back of the server and one Gen 2 slot, which is located internally (and not directly accessible)
150 Oracle Server X7-8 Service Manual • October 2017
Description
PCIe Slot 1 in DPCC 0
PCIe Slot 2 in DPCC 0
PCIe Slot 3 in DPCC 1
PCIe Slot 4 in DPCC 1
PCIe Slot 5 in DPCC 2
PCIe Slot 6 in DPCC 2
PCIe Slot 7 in DPCC 3
PCIe Slot 8 in DPCC 3
Call Out Description
9 PCIe PCIe Slot 9 in DPCC 4
10 PCIe Slot 10 in DPCC 4
11 PCIe Slot 11 in DPCC 5
12 PCIe Slot 12 in DPCC 5
13 PCIe Slot 13 in DPCC 6
14 PCIe Slot 14 in DPCC 6
15 PCIe Slot 15 in DPCC 7
16 PCIe Slot 16 in DPCC 7
