5.1 Electronics overview

WARNING
Avoid electrostatic discharges onto the (ESD)
controls during repairs or maintenance work.
• Main controls PP34a
• Power supply 230 Vac: 24V 65W
• Interface PP42
Display
5.1.1 Main controls

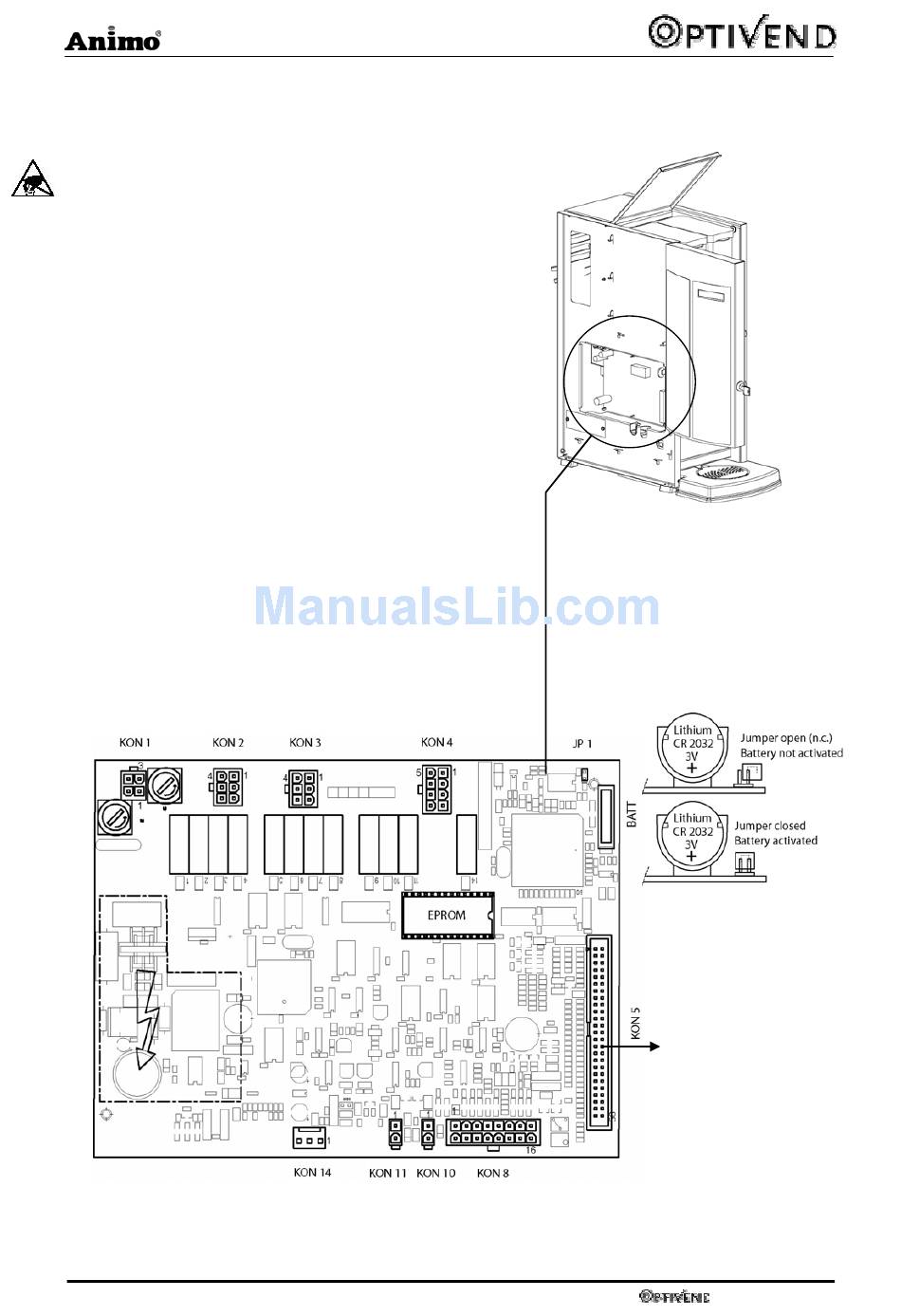

The PP34a (fig. 1) controls are the main controls of
the machine. The controls can be reached by
removing the left side panel. The following important
parts (fig. 12) are located in the control panel (fig.
12):
• Replaceable EPROM: this contains the
control program of the machine.
• Fuse: (315 mA T): to ensure the safety of the
power supply to the controls.
• Fuse: (4A T) is not used.
• Battery: for the maintenance of the personal and
model settings and the clock function when the
machine is not connected to the power supply.
01/2007 (rev. 6) V2.0
5.1.1
5.1.2
5.1.3
31
Fig. 11
PP42
Fig. 12
