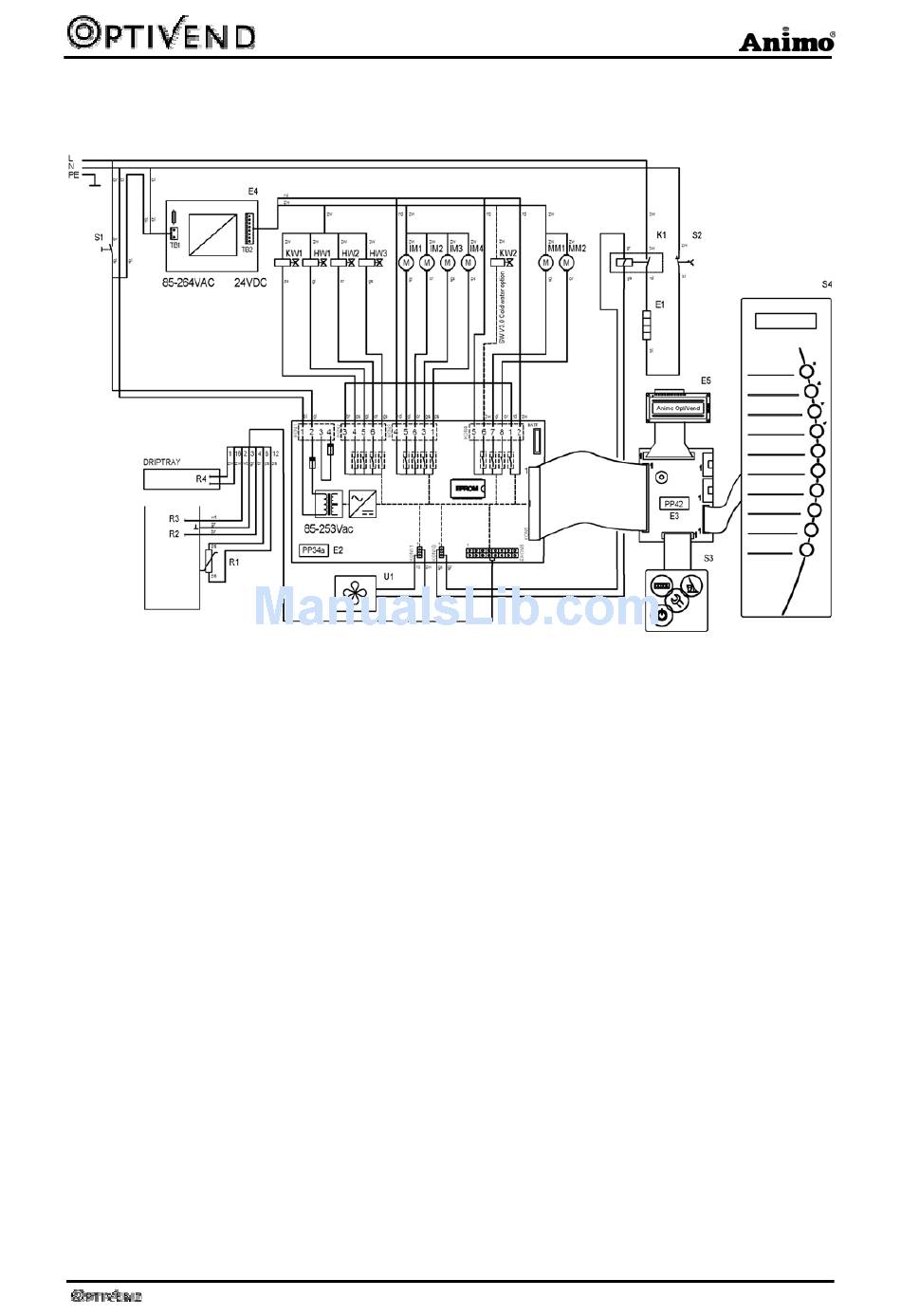

6.4 Circuit diagram (OptiVend 4)

S1 Main switch
S2 Dry boil protection
S3 Service panel
S4 Key panel
E1 Heating element
E2 Main control board PP34
E3 Interface PP42
E4 Power supply
E5 Display
K1 Power relay
KW1 Inlet valve 1
HW1 Hot water dosing valve 1
HW2 Hot water dosing valve 2
HW3 Hot water dosing valve 3
service enclosure
IM1 Ingredient motor 1
IM2 Ingredient motor 2
IM3 Ingredient motor 3
IM4 Ingredient motor 4
KW 2* Inlet valve 2 (kold water option)
MM1 Mixer motor 1
MM2 Mixer motor 2
R1 NTC temperature sensor
R2 Min. level probe
R3 Max. level probe
R4 Drip tray level probe
U1 Ventilator
* from software V3.0
