5.2 Adjusting the hot water dosing valves

Dosingspeed
15ml/sec.
choco
1-2
Water 1
3-4
Water 1
1TS/TL
2TS
Water 1
3TS-4TS
Water 1
HS
Water 1
Water 1
Water 3
Water 2
Water 1
Water 3
The hot water dosing valves can be accessed by removing the service hatch behind the ingredient
holders. Water can be supplied to the mixer beakers with the aid of the 'water 1'and 'water 2' dosing
valves. The 'water 3' valve also called the 'dump valve', either doses the water or supplements the
total dose in a cup. If a valve has to be replaced, it has to be set to the following dosing speed after
being fitted.
Proceed as follows to replace an ingredient valve (water 1 and/or water 2):
1. Adjust recipe hot water 'water 3' to 200 time units, and cup volume
to 100 ml (V2.0). With this quantity the valve will remain open for 10 sec.
2. Place the connection for the hot water valve on the
ingredient valve being adjusted.
3. Place a measuring cup and Go to 'Test product' and activate,
the valve will open for 10 seconds.
4. Adjust the valve to 150ml (15 ml / sec.) using the adjustment screw.
5. After adjusting return the connections to their original situation.
6. Readjust the hot water recipe to the former quantity.
Proceed as follows to replace a hot water (or dump) valve (water 3):
1. Adjust recipe hot water 'water 3' to 200 time units, and cup volume
to 100ml (V2.0). With this quantity the valve will remain open for 10 sec.
2. Place a measuring cup and Go to 'Test product' and activate,
the valve will open for 10 seconds.
3. Adjust the valve to 200ml (20 ml / sec.) using the adjustment screw.
4. Readjust the hot water recipe to the former quantity.
service enclosure
15ml/sec.
20ml/sec.
x
x
Water 1
x
Water 3
Water 2
Water 3
x
Water 2
Water 3
Water 2
Water 3
Water 2
Water 3
Water 2
Water 3
15 ml/sec.
20ml/sec.
15 ml/sec.
15 ml/sec.
20ml/sec.
OptiVend 2, 3, 4 TS/TL & HS
34
OptiVend Choco, 1 & 2

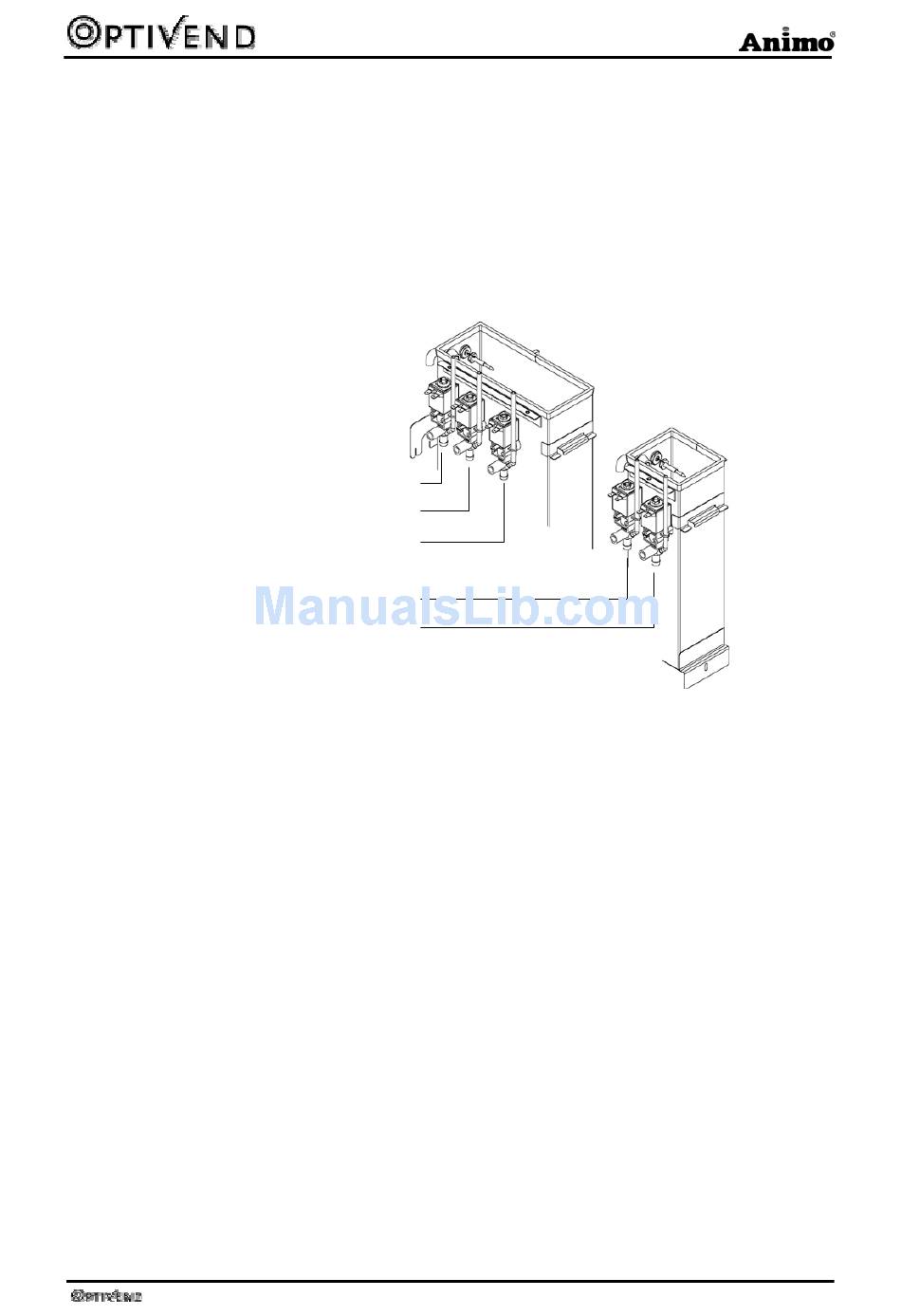

Fig. 16
01/2007 (rev. 6) V2.0
