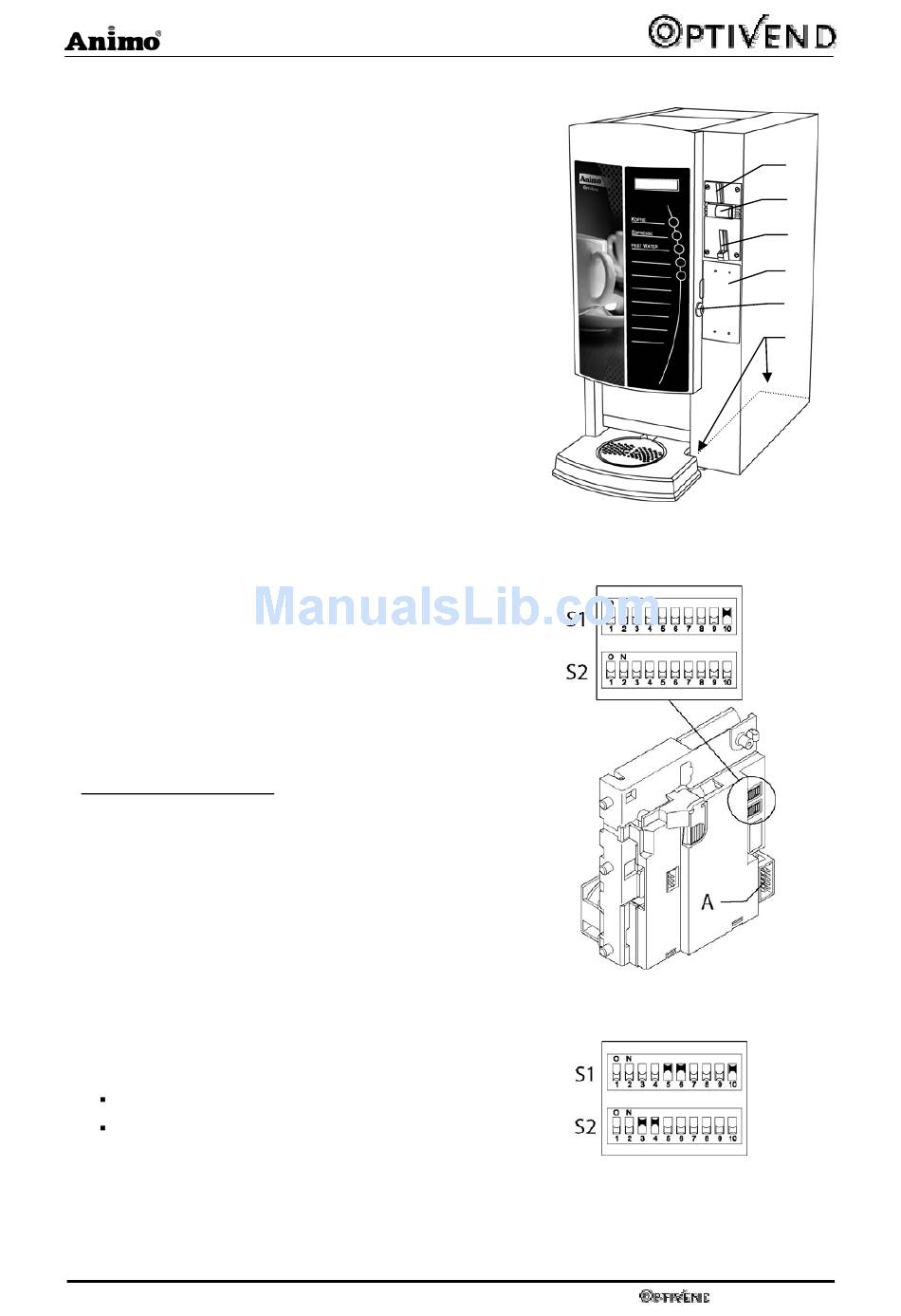

5.3 Coin mechanism (optional)

The OptiVend is optionally available with a coin
mechanism suitable for Euros (€ 0.05 to 2.00)
It is also easy to program the coin mechanism for tokens.
It is also possible to subsequently fit a machine with a coin
mechanism. The right side wall is replaced by a wide side
wall where the coin mechanism and money drawer are
built in. The coin mechanism can then be simply
connected with a cable connection that is already present
in the machine.
1. Coin insert
2. Return button
3. Return slot
4. Money drawer
5. Door lock (also locks the money drawer)
6. Fastening of coin mechanism to the side wall

5.3.1 Standard configuration

Fig. 18 shows the default configuration of the DIL
switches. S1-10 ON
The coin mechanism is linked to the machine with a
connector (fig. 18A).

5.3.2 Blocking coins

If desired, certain Euro coins can be blocked with a DIL
switch block S1 + S2 (fig. 19)
Coin DIL + DIL
€ 0,05 S1-1
€ 0,10 S1-2
€ 0,20 S1-3
€ 0,50 S1-4
€ 1,00 S1-5
€ 2,00 S1-6
Token 607 -
Token Eagle -
Token new -
Token new -
ON = blocked / OFF = free
Example Block € 1,00 and € 2,00 coin piece (fig. 19)
S1-5, S2-3 -> ON (€ 1,00 blocked)
S1-6, S2-4 -> ON (€ 2,00 blocked)
01/2007 (rev. 6) V2.0
S1-7
S1-8
S2-1
S2-2
S2-3
S2-4
S2-5
S2-6
S2-7
S2-8
35
1
2
3
4
5
6
Fig.17
Fig. 18
Fig. 19
