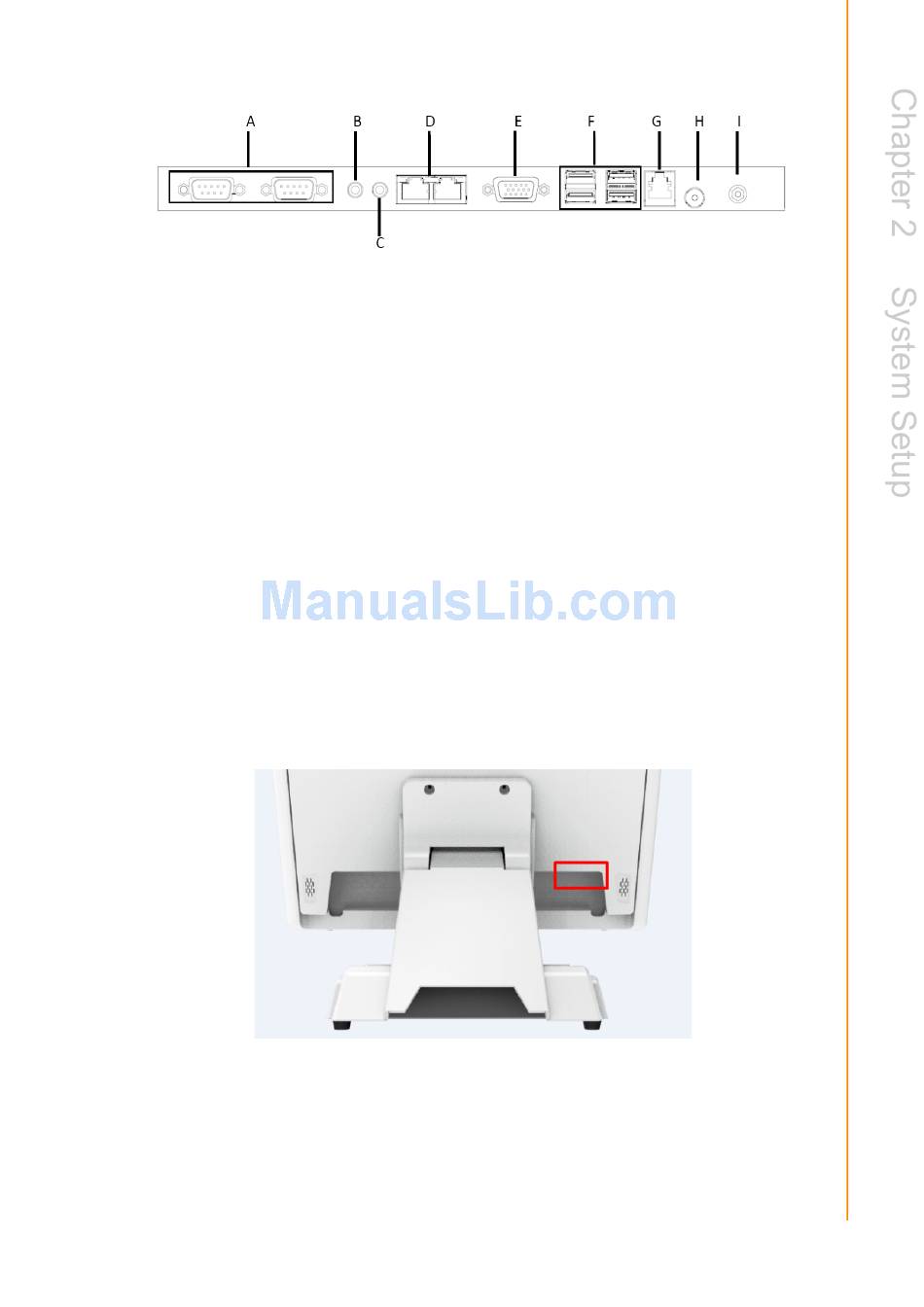

A. COM
C. Mic In
E. VGA for Celeron®
HDMI for Core™ i
G. RJ11
I. DC In

2.2 Installation Procedures

2.2.1 Connecting the Power Cord

The UTC-315 POS is powered by DC power supply. Be sure to hold the plug end
when plugging or unplugging the power cord. See Figure 2.3 regarding connecting
the male plug of the power cord to the DC inlet of UTC-315 POS.

2.2.2 Connecting a Keyboard or Mouse

Before starting up the computer, connect a keyboard via the I/O ports located at the
rear of UTC-315 POS.

2.2.3 Switching on the Power

The power switch is located at the rear of UTC-315 POS.3.
B. Line Out
D. Gigabit LAN x2
F. 2 x USB 2.0, 4 x USB 3.0 for Core™ i
H. Power Switch
Figure 2.3 Connect the power cord to the DC inlet
3 x USB 2.0, 1 x USB 3.0 for Celeron®
9 UTC-315 POS Series User Manual
