3.4 Installing WLAN

Reserve two locations for the external antenna. One location should be an I/O port,
and the other location on the rear cover. Users can choose between the two locations
according to their usage requirements.

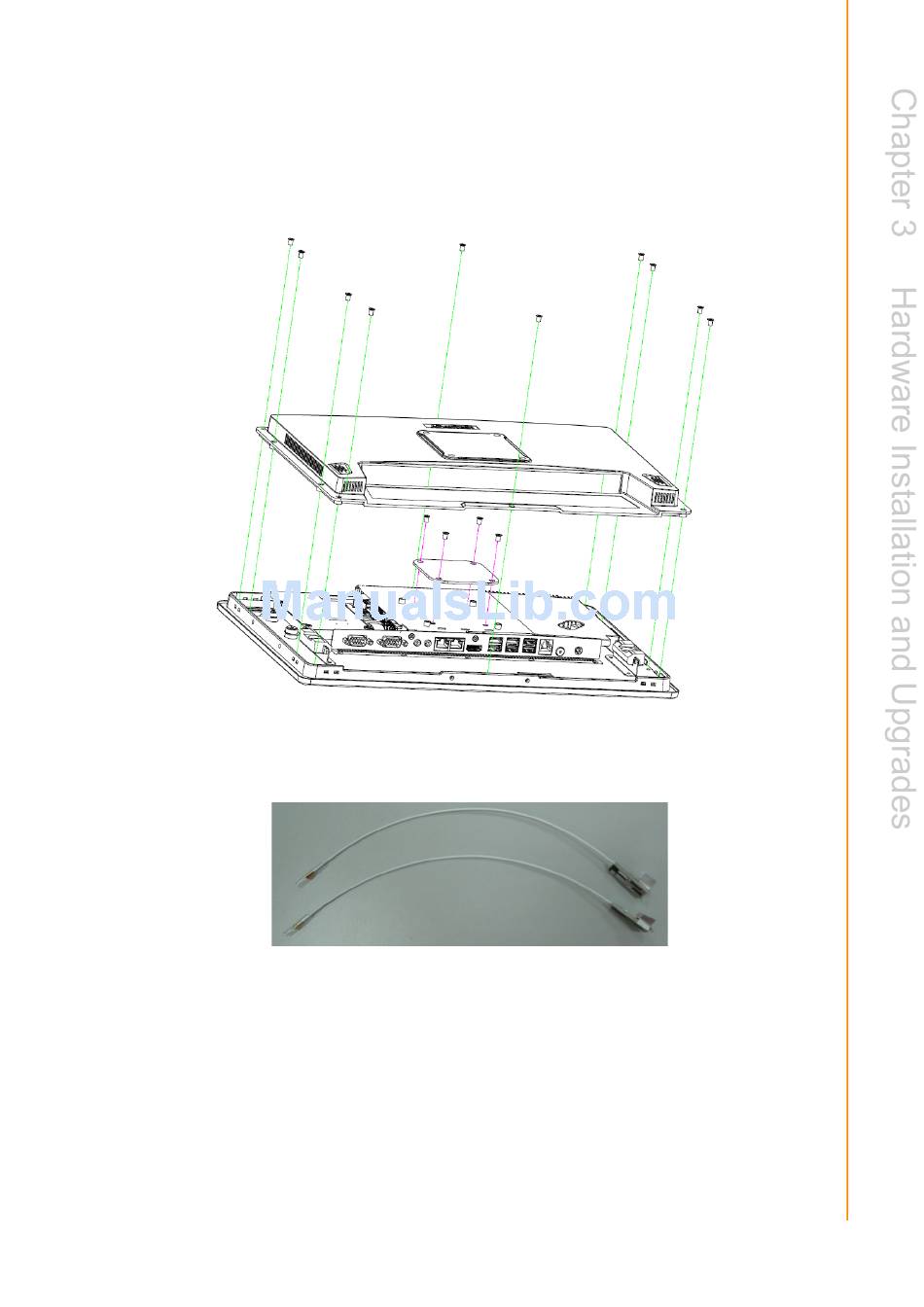

1. Remove the 10 screws holding the back cover in place.
2. Remove the 6 screws holding the reinforced board in place.
3. Obtain a coaxial cable (Advantech P/N: 1750006682-01).
17 UTC-315 POS Series User Manual
