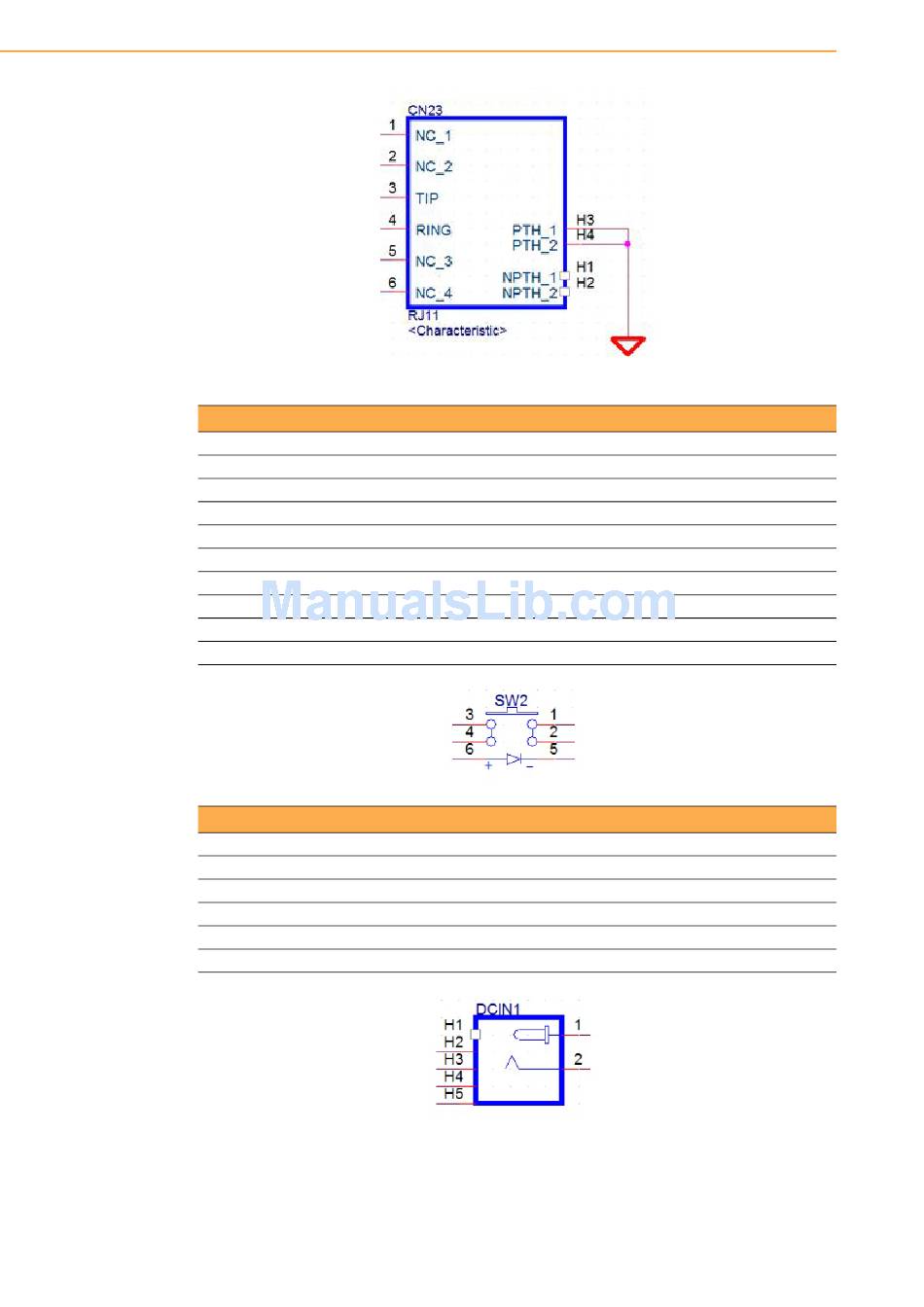

Table A.22: SW2 Button: Power Button
Part Number
Footprint
Description
Pin
1
2
3
4
5
6
Table A.23: CN31: DC In
Part Number
Footprint
Description
Pin
1
2
UTC-315 POS Series User Manual
1600000055
SW_6P_TC003-N11AABRGXX-RK_D
Push SW DIP 6P W/LED WO/Pb TC003-N11AABRGXX-RK
Pin Name
GND
GND
ATX_PWRBTN#
ATX_PWRBTN#
+5V
GND
1652005624
PJ_2P_2DC-G213B200
DC Power Jack 2.5 mm 90 D(M) DIP 2DC-G213B200
Pin Name
DC_IN
GND
