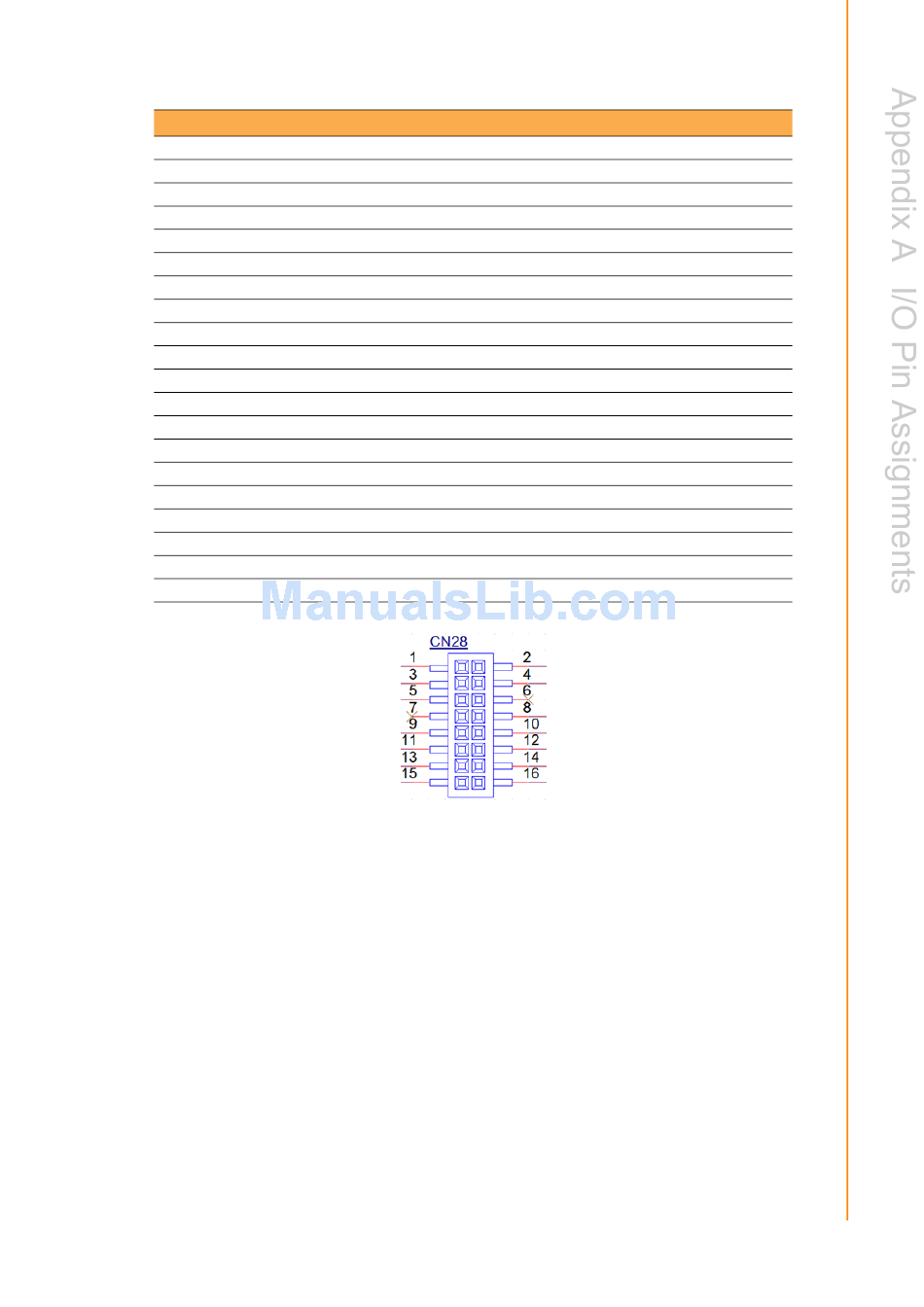

Table A.24: VGA
Part Number 1653208260
Footprint HD_8x2P_79_BOX
Description Box Header 8 x 2P 2.00 mm 180 D(M) SMD 23N6850
Pin Pin Name
1 VGA_R
2 +5V
3 VGA_G
4 GND
5 VGA_B
6 NC
7 NC
8 VGA_DDAT
9 GND
10 VGA_HS
11 GND
12 VGA_VS
13 GND
14 VGA_DCLK
15 GND
16 GND
47 UTC-315 POS Series User Manual
