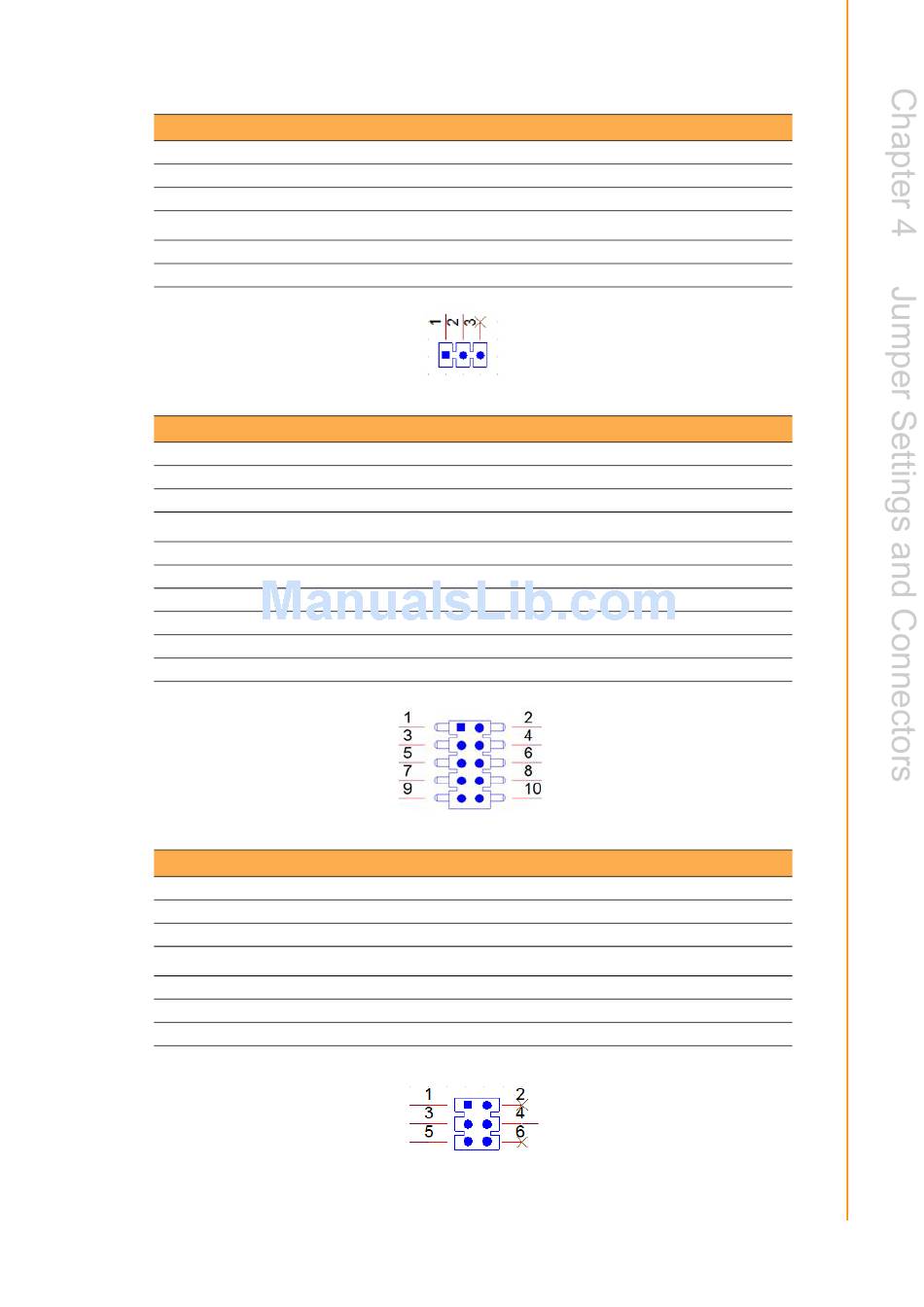

Table 4.8: JP6: Clear CMOS

Part Number 1653005101
Footprint HD_5x1P_79_D
Description Pin Header 3 x 1 P 2.0 mm 180 D(M) DIP 2000-13 WS
Setting Function
(1-2) Clear CMOS
(2-3)* Normal
Table 4.9: CN9: COM 1/2 Ring Power
Part Number 1653005261
Footprint HD_5x2P_79
Description Pin Header 5 x 2P 2.0 mm 180 D(M) SMD 21N22050
Setting Function
(1-3) * COM1 Ring
(3-5) COM1 RI output +5V
(7-9) COM1 RI output +12V
(2-4) * COM2 Ring
(4-6) COM2 RI output +5V
(8-10) COM2 RI output +12V
Table 4.10: CN10: CSAFE Power
Part Number 1653003201
Footprint HD_3x2P_79_D
Description Pin Header 3 x 2P 2.0 mm 180 D(M) DIP 21N22050
Setting Function
(1-3) * CSAFE output +5V
(3-4) CSAFE output +9V
(3-5) CSAFE output +12V
25 UTC-315 POS Series User Manual
