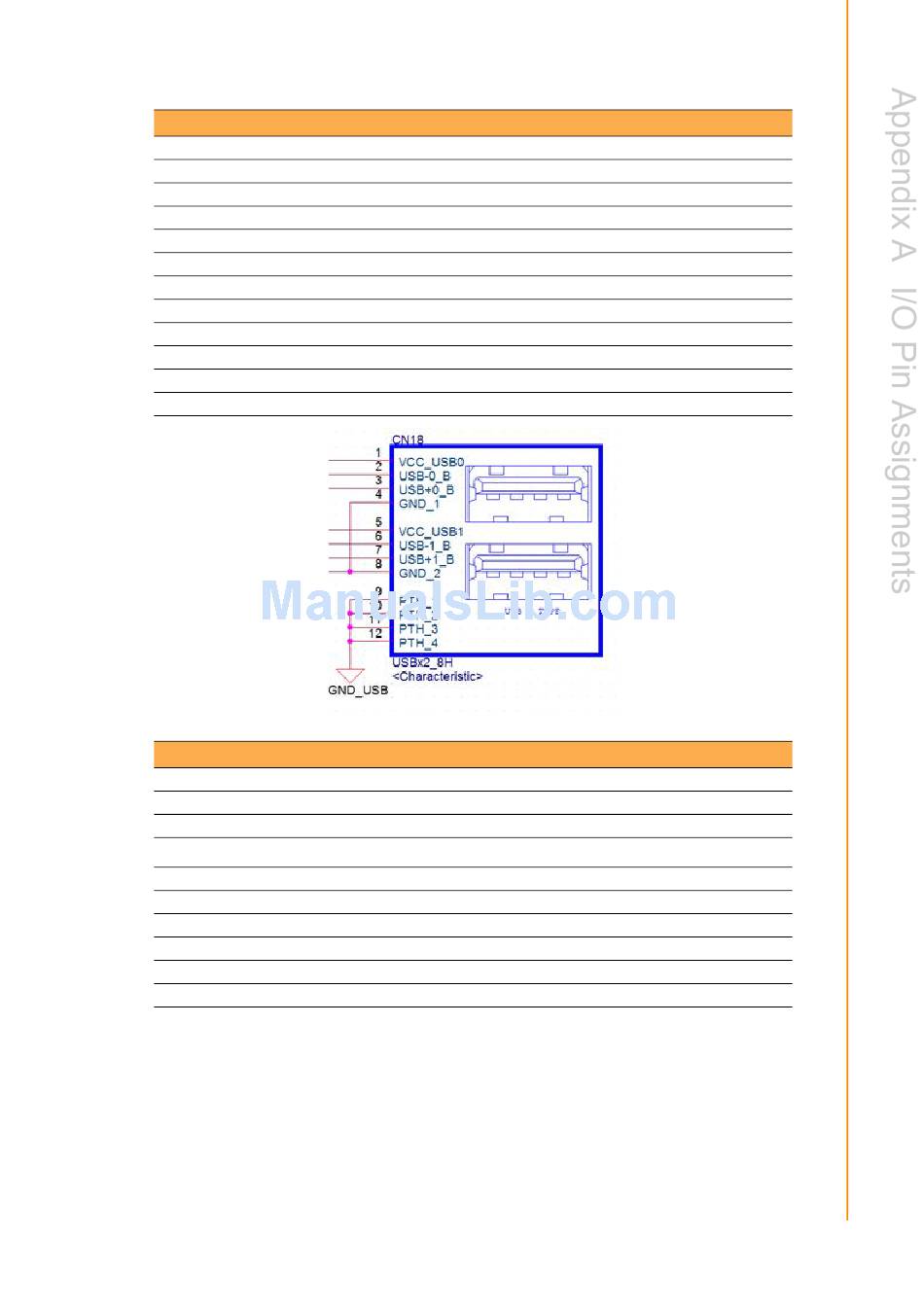

Table A.20: CN18: External USB
Part Number 1654009513
Footprint USB_8P_UB1112C-8FDE-4F
Description USB Connector 8 P 2.0 mm 90 D DIP UB1112C-8FDE-4F
Pin Pin Name
1 +5VSB
2 D-
3 D+
4 GND
5 +5VSB
6 D-
7 D+
8 GND
Table A.21: CN23: RJ11
Part Number 1652005977-02
Footprint RJ11_6P_RJ1201-66N024R0
Description Phone Jack RJ11 6P6C 90 D(F) DIP 6u RJ1201-66N024
Pin Pin Name
1 GND
2 GPIOA
3 Status
4 Power
5 GPIOB
6 GND
