2.1 Quick Tour of UTC-315 POS

Before setting up UTC-315 POS, familiarize yourself with the location and functions
of the controls, drives, connectors, and ports (see Figures 2.1 and 2.2).
When placed upright on a desk, the UTC-315 POS front panel appears as shown in
Figure 2.1.
Located at the rear of UTC-315 POS is the system I/O, as shown in Figure 2.2. The
various I/O includes Ethernet, USB, HDMI, Line Out, Mic In, RJ11, DC In, VGA, and
serial ports.)
UTC-315 POS Series User Manual

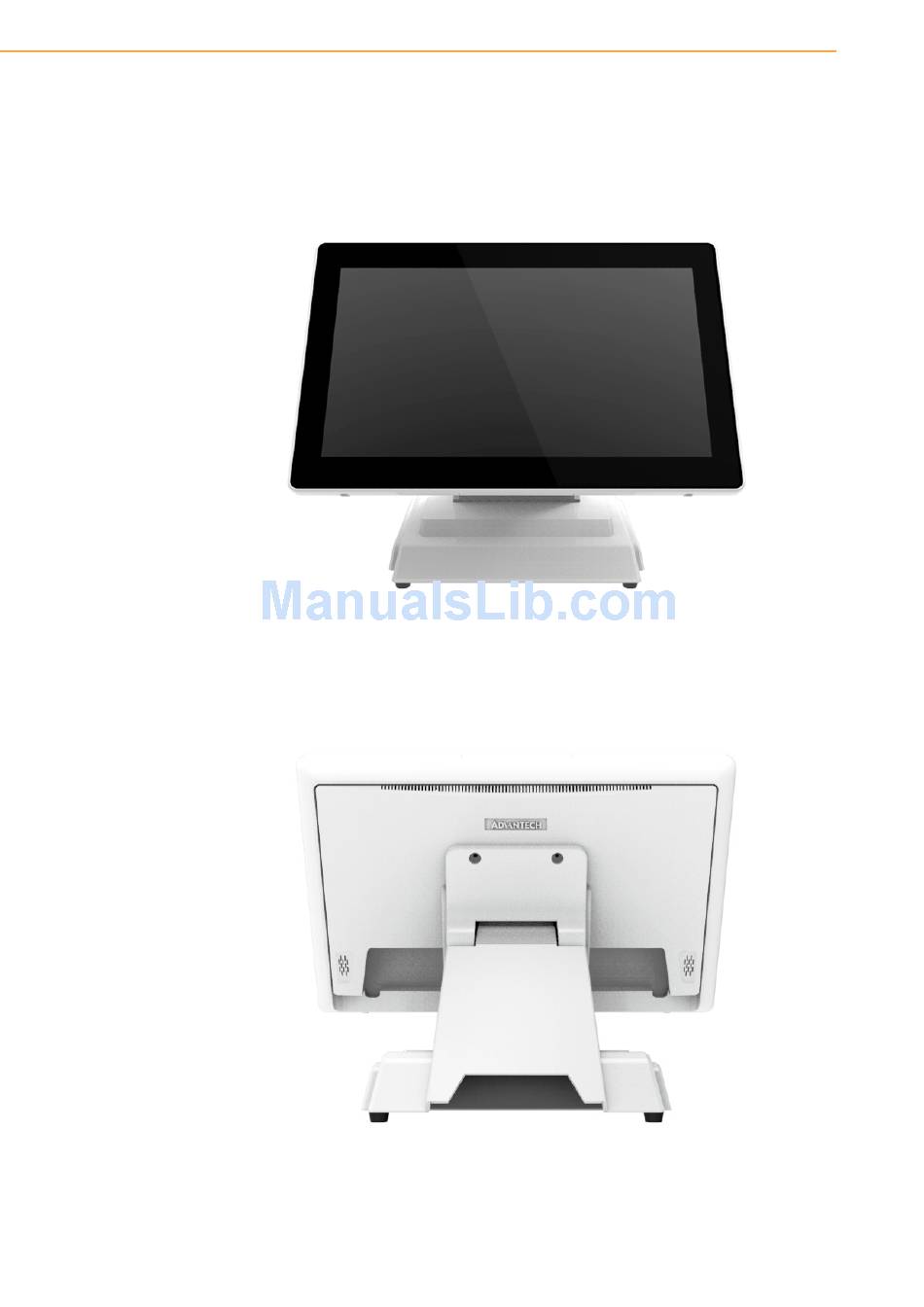

Figure 2.1 Front view of UTC-315 POS
Figure 2.2 Rear view of UTC-315 POS
