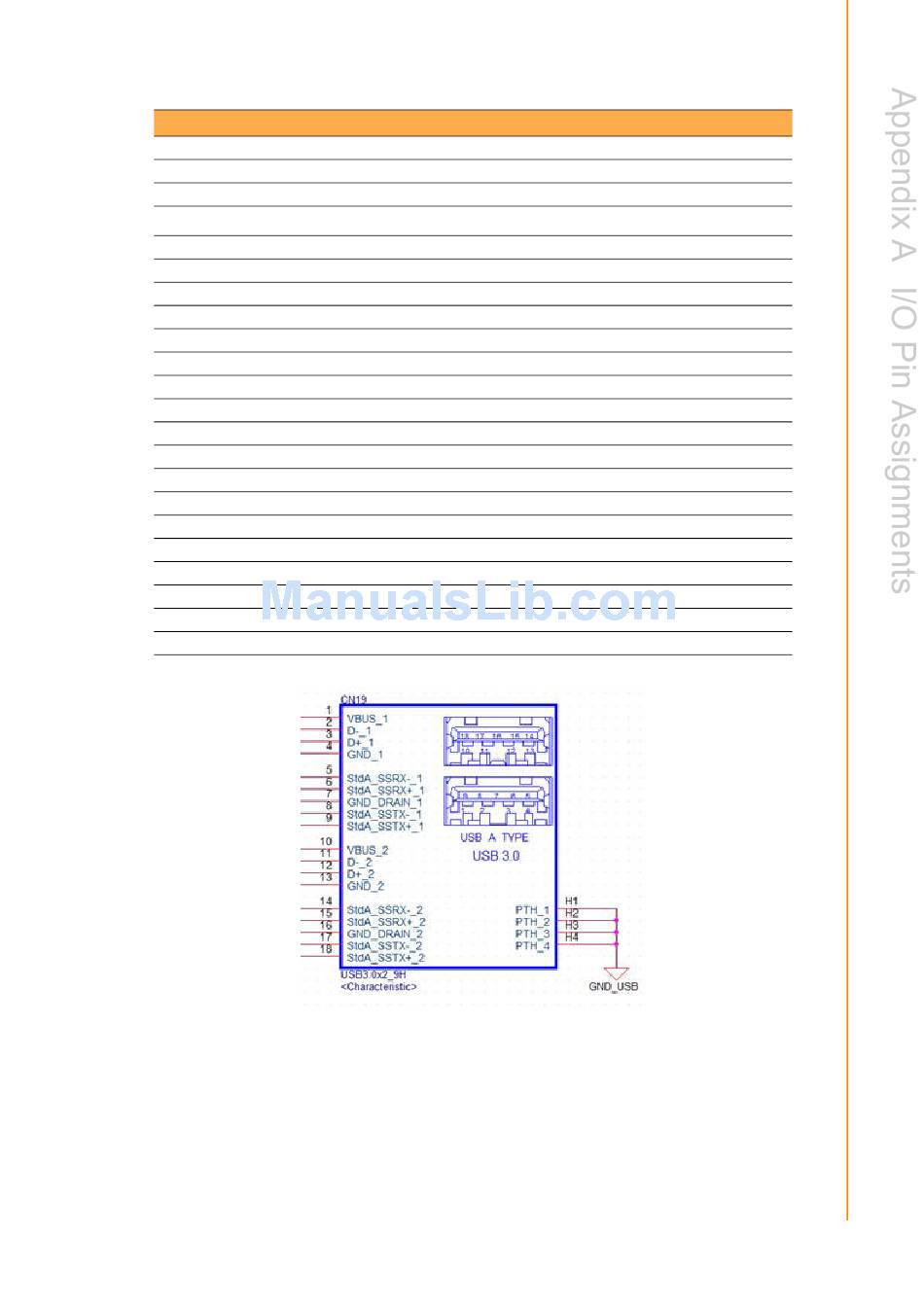

Table A.18: CN19: External USB
Part Number 1654010969-01
Footprint USB_9x2P_UEA1112C-8HS6-4F
Description USB Connector 18 P 2.0 mm 90 D(F) DIP UEA1112C
Pin Pin Name
1 +5VSB
2 D-
3 D+
4 GND
5 SSRX-
6 SSRX+
7 GND
8 SSTX-
9 SSTX+
10 +5VSB
11 D-
12 D+
13 GND
14 SSRX-
15 SSRX+
16 GND
17 SSTX-
18 SSTX+
