4.

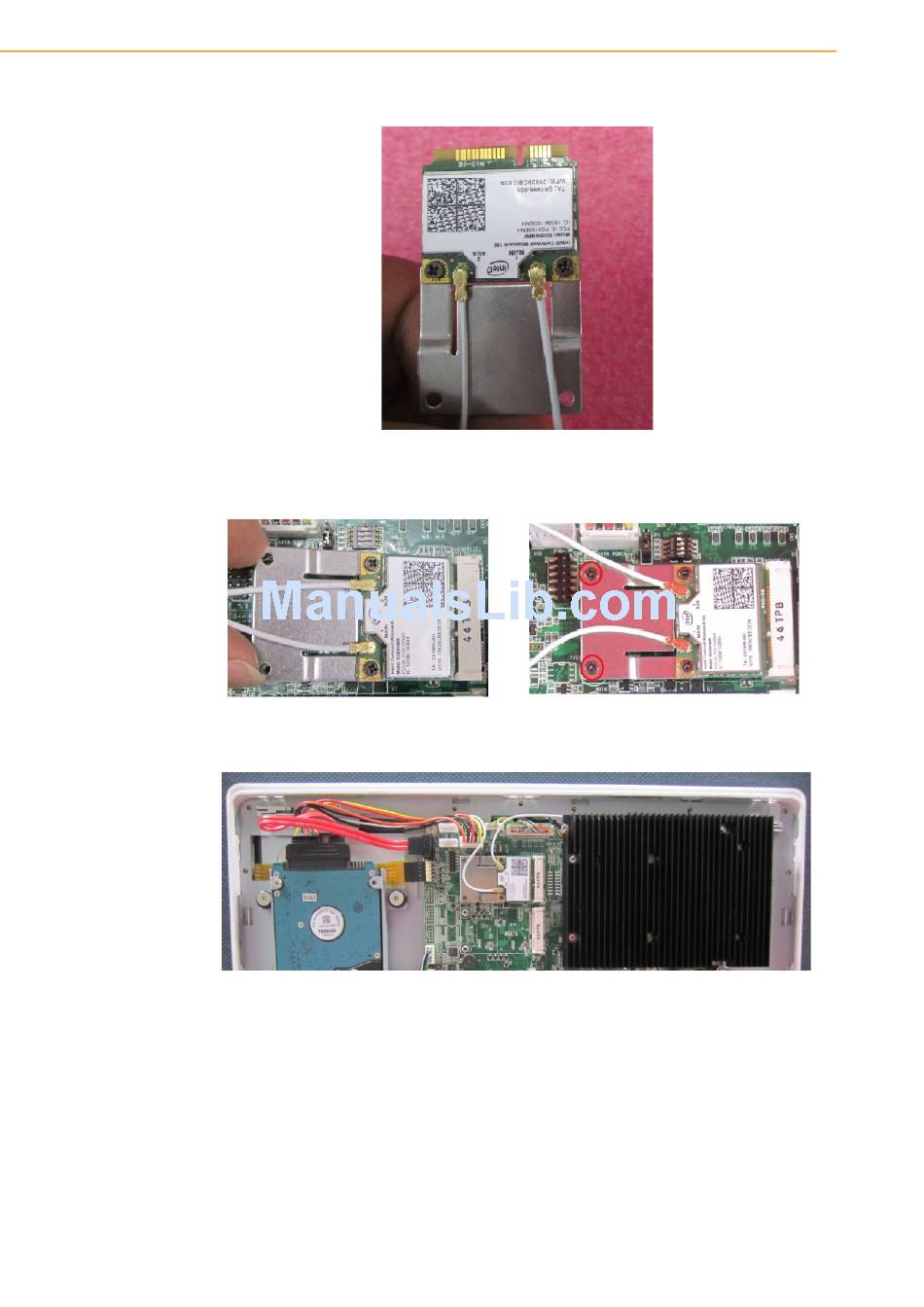

Connect the coaxial cable to "ANT1" on the WLAN card.
5.
Install the WLAN card on the underside of the motherboard.
6.
Route the cables of the wireless antenna as shown below.
UTC-315 POS Series User Manual
18
